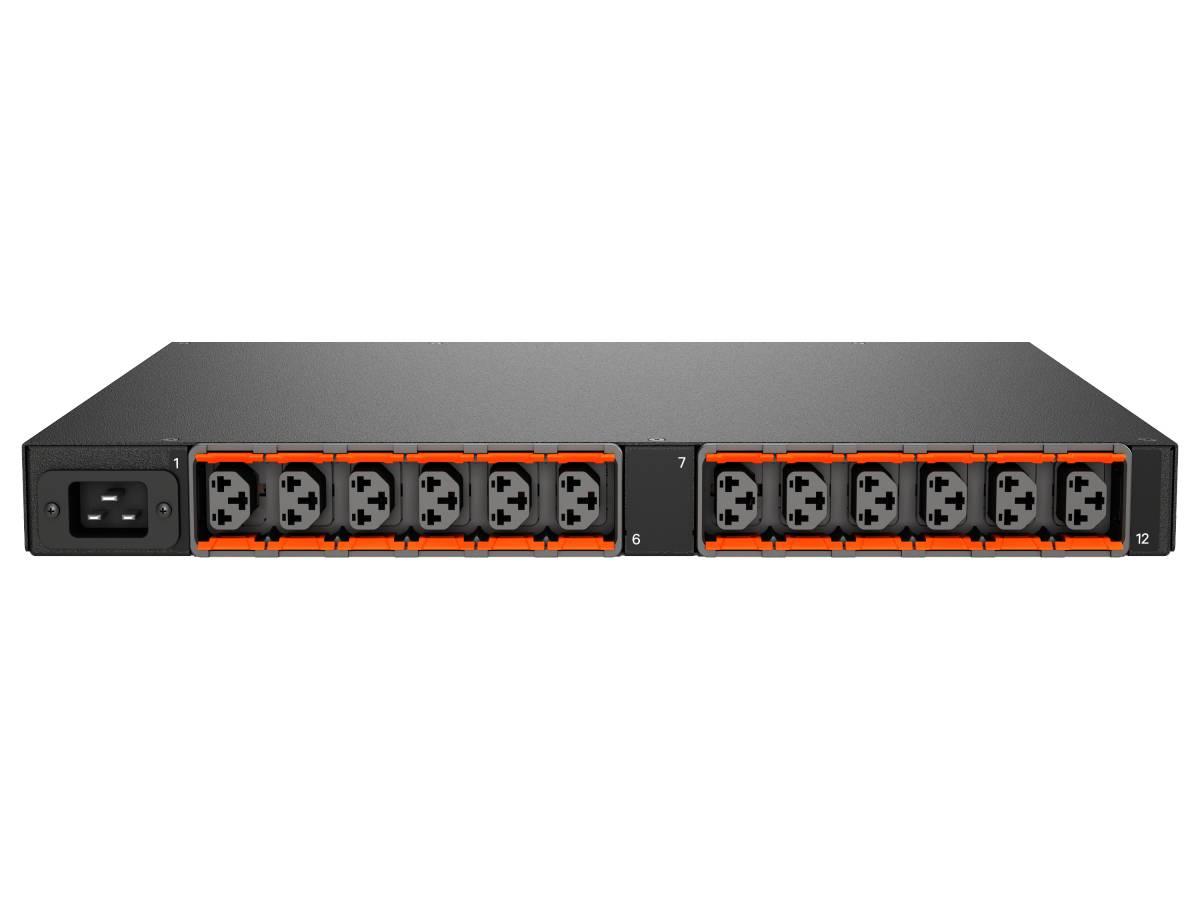

Geist Switched Outlet Level Monitoring EC MUU3E1R5-12CF17-2C20A9H00-S - Power distribution unit (rack-mountable) - AC 120/208/230 V - 3.6 kW - Ethernet 10/100, RS-232, USB - input: IEC 60320 C20 - output connectors: 12 (12 x IEC 60320 C13/C19) - 19" - bla
Please sign in so that we can notify you about a reply
Special Features
- Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control
- Reliable power distribution offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime
- Environmental monitoring capabilities ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime
- Fault-tolerant daisy chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 19" |
| Colour | Black powder coat |
| Power Device | Power Device |
| Input Voltage | AC 120/208/230 V |
| Input Voltage Range | AC 100 - 240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Power Output Connectors Details | 12 x power IEC 60320 C13/C19 |
| Max Electric Current | 20 A |
| Power Capacity | 3.6 kW |
| Networking | Networking |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6, JSON, RSTP, TACACS+, LDAP, RADIUS |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x sensor - RJ-12 ¦ 1 x RS-232 - RJ-45 ¦ 1 x USB |
| Miscellaneous | Miscellaneous |
| Features | LED display, monitored, IP reset button, hard reboot button |
| Compliant Standards | UL 60950, RoHS, FCC Part 15 A |
| TAA Compliant | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years with product registration (within 120 days of purchase) ¦ Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Max Operating Temperature | 60 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43.2 cm |
| Depth | 30.5 cm |
| Height | 4.4 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 4.54 kg |
Features - Vertiv - UU30200
More Details
Product Code
W895909
EAN Code
4061471339552
Manufacturer
Vertiv
