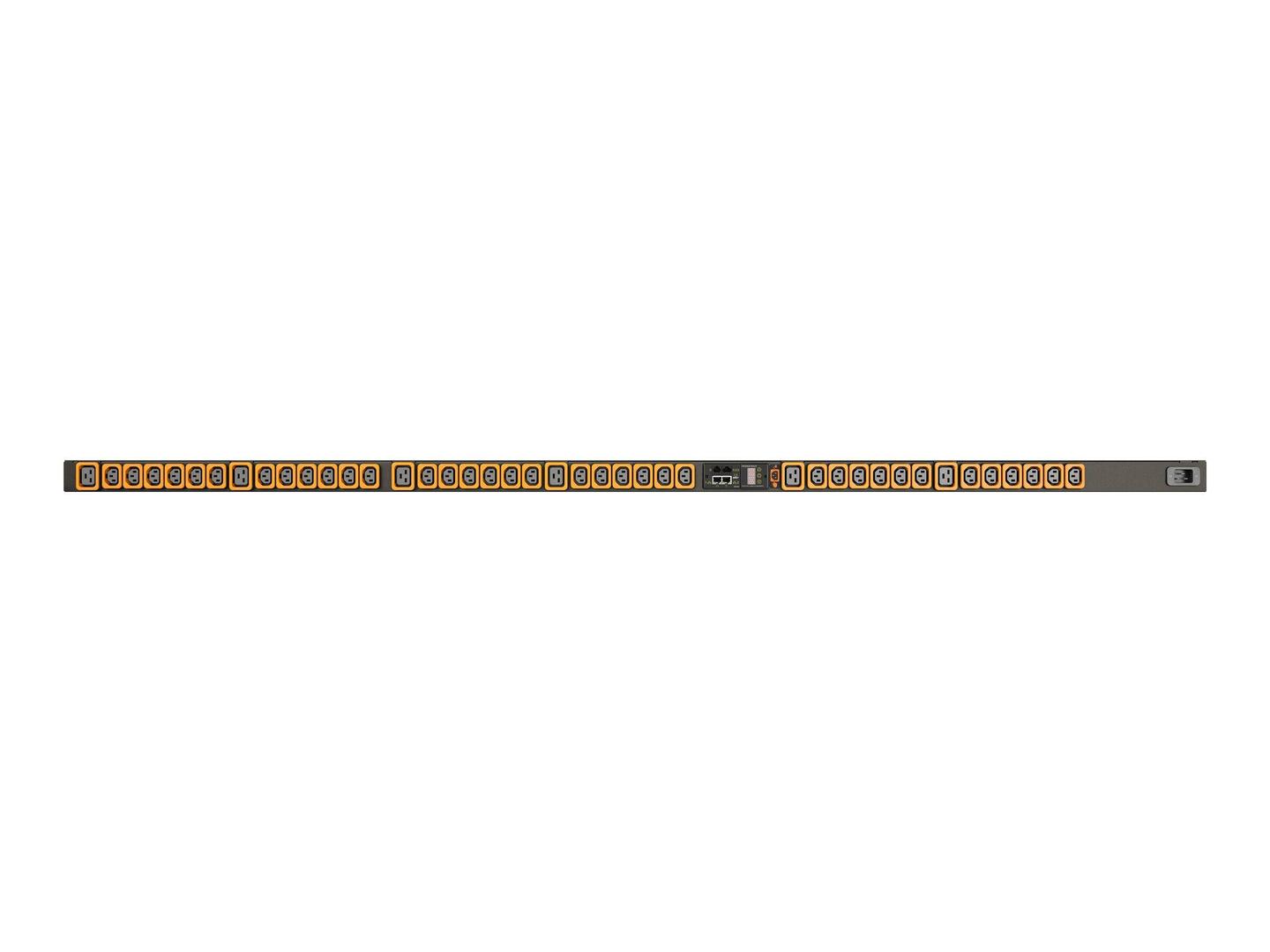

Geist Monitored Outlet Level EC MU03E4W0-42PZ67-2C20A9A00-S / Power distribution unit (rack-mountable) / AC 120/208/230 V / 3.6 kW / Ethernet 10/100, RS-232, USB / input: IEC 60320 C20 / output connectors: 42 (6 x IEC 60320 C19, 36 x IEC 60320 | UI30011L
Please sign in so that we can notify you about a reply
Special Features
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime
- Gather comprehensive power data at the palm of your hand with the use of the Vertiv VLC mobile app
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs
- Supports up to 40 rPDUs
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Colour | Black powder coat |
| Power Device | Power Device |
| Input Voltage | AC 120/208/230 V |
| Input Voltage Range | AC 100 - 240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Power Output Connectors Details | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Max Electric Current | 20 A |
| Power Capacity | 3.6 kW |
| Networking | Networking |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6, RSTP, TACACS+, LDAP, RADIUS |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x sensor ¦ 1 x USB ¦ 1 x RS-232 - RJ-45 |
| Miscellaneous | Miscellaneous |
| Features | LED display, monitored |
| Compliant Standards | EN55024, RoHS, IEC 60950-1, China RoHS, RCM, EN 55032 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years with product registration (within 120 days of purchase) ¦ Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Max Operating Temperature | 60 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5.1 cm |
| Depth | 5.1 cm |
| Height | 182.9 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 7.26 kg |
Features - Vertiv - UI30011L
More Details
Product Code
CE58627
EAN Code
4061471340121
Manufacturer
Vertiv
