Gigabyte A520 AORUS ELITE / 1.0 / motherboard / ATX / Socket AM4 / AMD A520 Chipset / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | A520 AORUS ELITE

Product Features

• 5+3 phases pure digital VRM solution with Low RDS(on) MOSFETs
  GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
• NVMe PCIe 3.0 x 4 M.2 connector
  AORUS gaming motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
• LAN static-electricity and surge protection
  GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard and your PC from any surge in power delivery that may occur, ensuring that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
• High speed gigabit LAN with automatic bandwidth allocation
  Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the high network priority of the game or application.
• HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 support
  HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth - twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the outstanding visual experience for viewers.
• Native USB 3.2 Gen2
  AMD A520 chipset provides native USB 3.2 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.2 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.2 Gen1.
• Smart Fan 5
  With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
• Multi-zone light show design
  Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Special Features

• Supports 3rd Gen AMD Ryzen processors
• Dual channel ECC / non-ECC unbuffered DDR4, 4 DIMMs
• 5+3 phases pure digital VRM solution with Low RDS(on) MOSFETs
• Ultra-fast NVMe PCIe 3.0 x 4 M.2 connector
• AMP-UP audio with ALC1200 and high-end audio capacitors
• GIGABYTE exclusive 8118 Gaming LAN with Bandwidth Management
• HDMI, DVI-D ports for multiple display
• RGB FUSION 2.0 supports addressable LED and RGB LED strips
• Smart Fan 5 features multiple temperature sensors, hybrid fan headers with FAN STOP

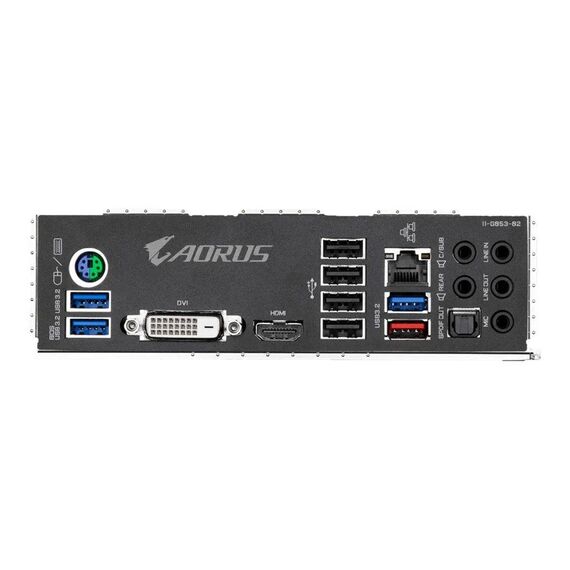

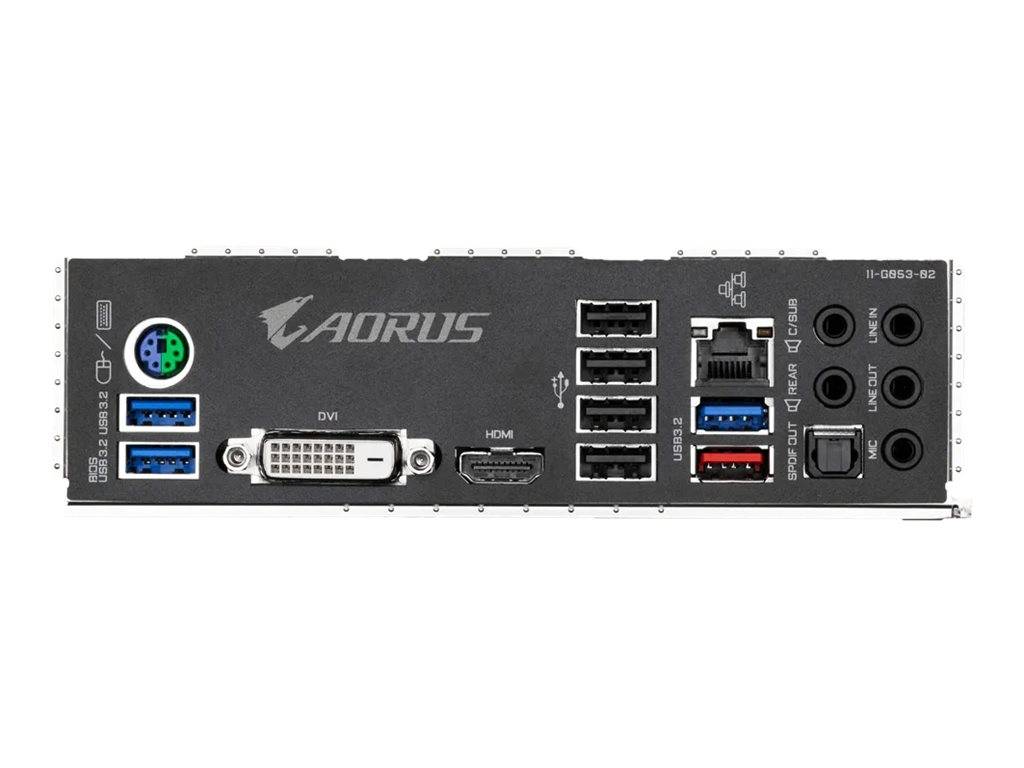

• Pre-installed IO shield for easy and quick installation
