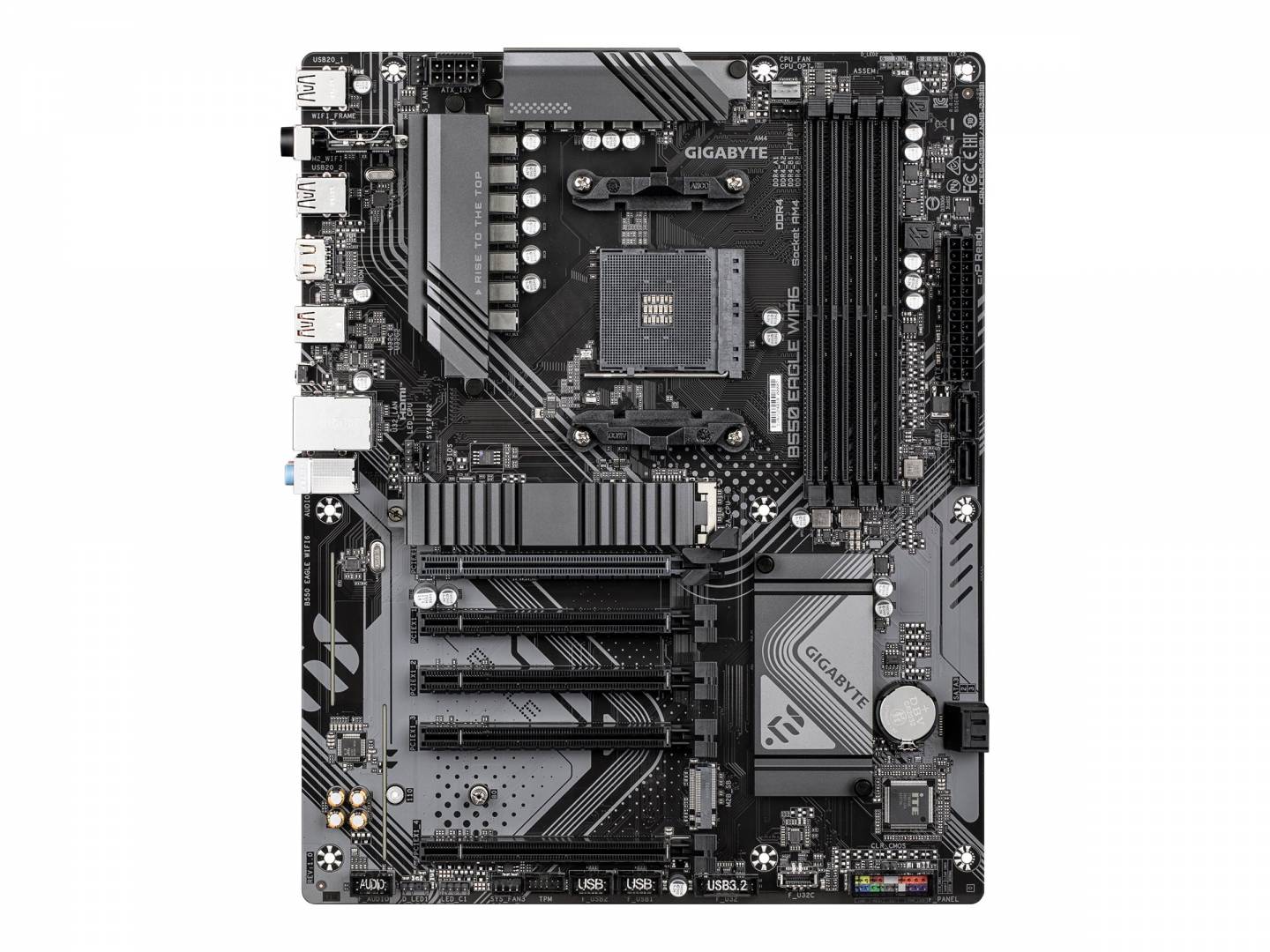

Gigabyte B550 EAGLE WIFI6 / Motherboard / ATX / Socket AM4 / AMD B550 Chipset / USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 / Bluetooth, Wi-Fi 6E, Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B550 EAGLE WIFI6
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity options
Featuring a comprehensive range of connectivity options, the motherboard includes four SATA-600 ports for easy storage solutions, alongside two M.2 slots for high-speed SSDs. A total of 10 USB ports, including USB 3.2 Gen 2 and USB-C, are available to accommodate multiple peripherals and enhance data transfer speeds. - Advanced audio capabilities
The GIGABYTE B550 EAGLE WIFI6 motherboard provides high definition audio support through an 8-channel audio output. This ensures an immersive sound experience whether for gaming, music, or video playback, enhancing the overall multimedia experience. - Enhanced cooling features
Designed with cooling in mind, the motherboard includes GIGABYTE Smart Fan 6 technology which features fan control and temperature detection capabilities, ensuring optimal performance during demanding tasks and preventing overheating. - User-friendly design
A DIY-friendly design enhances usability, featuring RGB FUSION for customizable lighting effects and a layout that simplifies component installation and upgrades. This design approach caters to both novice builders and experienced users. - Powerful performance
Equipped with a 10+3+1 phase power design, the GIGABYTE B550 EAGLE WIFI6 motherboard ensures stable and reliable power delivery for all compatible processors. This design aspect contributes to increased efficiency and performance boosts, especially during intensive workloads.
Special Features
- Supports AMD Ryzen processors with a B550 chipset
- Equipped with four DIMM slots for DDR4 RAM with dual-channel architecture
- Includes multiple USB ports including USB-C for versatile connectivity
- Features high definition audio output for an enhanced audio experience
- Integrates Wi-Fi 6 and Bluetooth 5.3 for fast wireless connectivity
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B550 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 1600 MHz, 1467 MHz, 1333 MHz, 1200 MHz, 1067 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8851BE |
| Network Interfaces | Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 4 x PCIe 4.0 x1 2 x M.2 socket (22110/2280) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

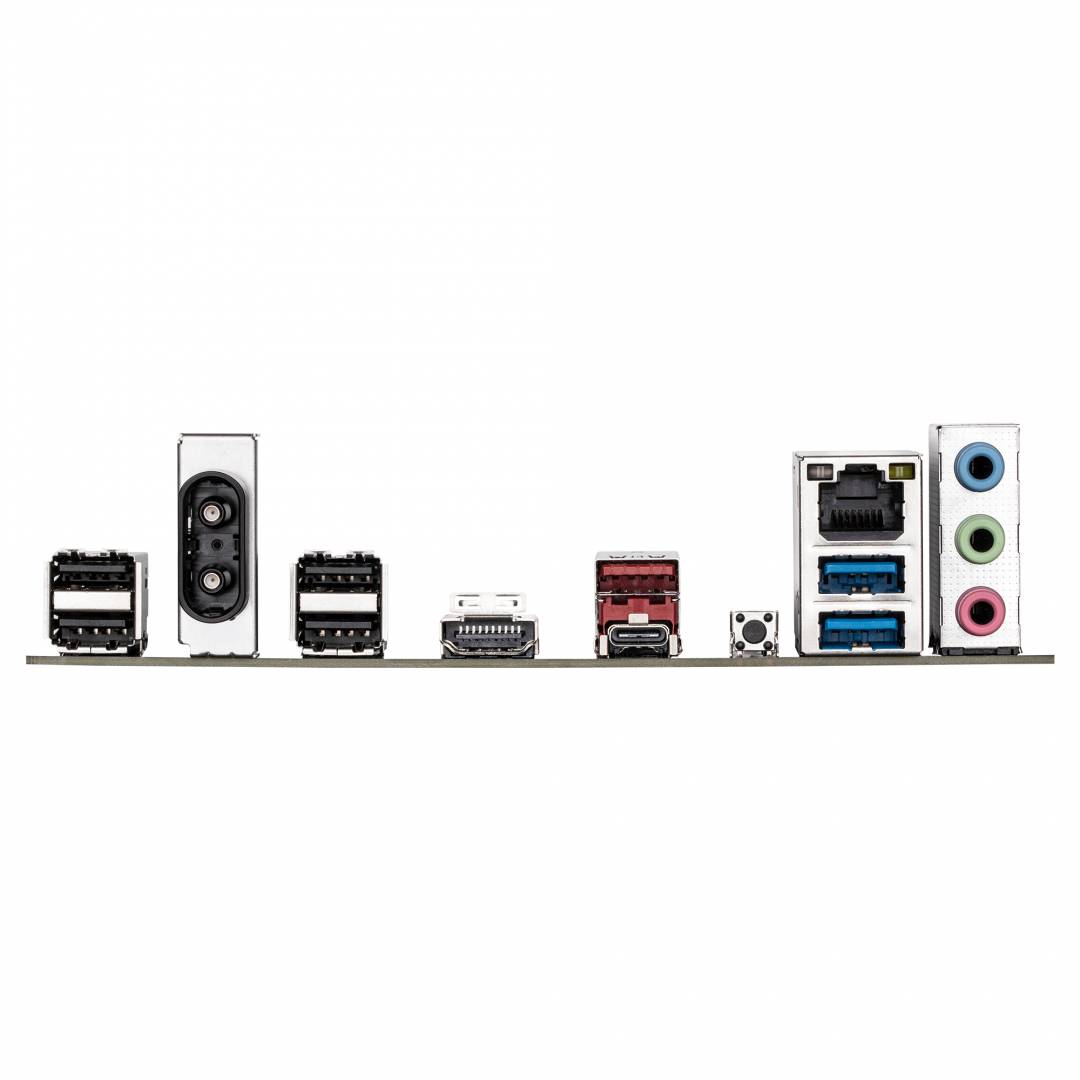

| Interfaces | 2 x aerial 1 x HDMI 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 4 x USB 2.0 1 x USB-C 3.2 Gen 1 LAN (Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan fail warning, fan control, system voltage, temperature detection, water cooling flow rate, fan speed detection |
| Hardware Features | 10+3+1 Phase Power Design, 4 Layer PCB, Server-Grade Mid-Loss PCB, EZ Plug, M.2 EZ Latch, GIGABYTE Smart Fan 6, RGB FUSION, DIY Friendly Design |
| Miscellaneous | Miscellaneous |

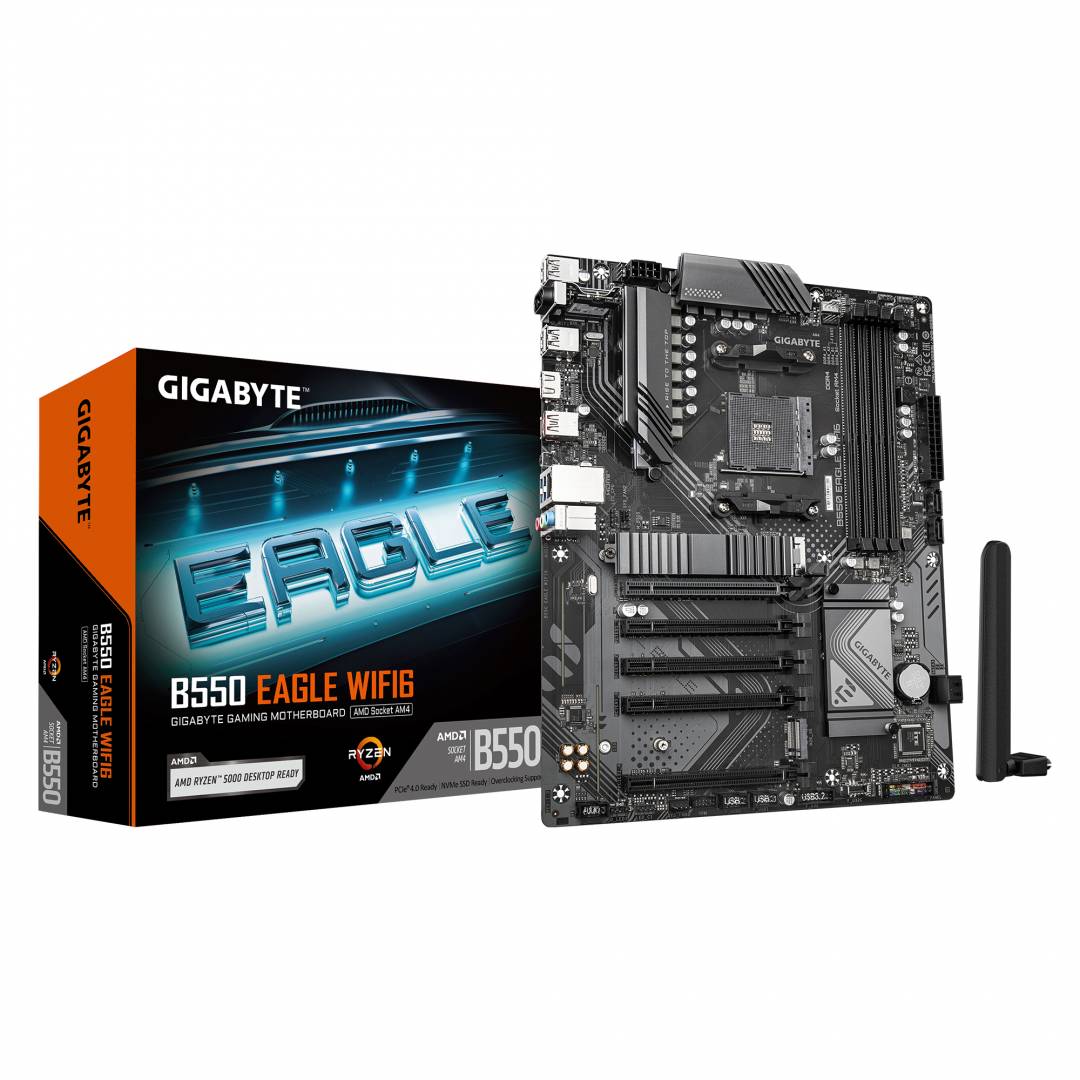

| Included Accessories | M.2 screw package, rubber pad, Wi-Fi aerial, IO shield |
| Cables Included | 2 x SATA Express cable |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version), LAN manager |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - GigaByte - B550 EAGLE WIFI6
CPU Socket
- Socket AM4
More Details
Product Code
04:519869
EAN Code
4719331868406
