Product Features
- Versatile connectivity options
The motherboard offers a variety of interface options, including multiple USB ports, HDMI, DisplayPort, and Gigabit Ethernet, enabling flexible connectivity for peripherals and displays. - Optimized power design
With a 5+3 phase power design and VRM heatsink, the motherboard provides stable and efficient power delivery, ensuring consistent performance during demanding tasks. - Enhanced audio experience
Equipped with high definition audio capabilities, the board features the Realtek ALC1200 codec, ensuring immersive sound quality for gaming and multimedia. - Extensive RAM support
The GIGABYTE B550M GAMING X WIFI6 supports dual-channel DDR4 memory technology, allowing for a maximum of 64 GB of RAM across four DIMM slots, catering to high-performance computing needs. - Advanced cooling features
Featuring GIGABYTE Smart Fan 6 technology, the motherboard includes customizable fan profiles and sensors, enabling real-time monitoring and optimization of thermal performance.
Special Fetures
- Supports AMD Ryzen processors with Socket AM4
- Includes Wi-Fi 6 and Bluetooth 5.3 for enhanced connectivity
- Features high definition audio with Realtek ALC1200 codec
- Robust cooling solutions with VRM heatsink and advanced fan control
- Customizable RGB lighting effects through RGB FUSION
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B550 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 1600 MHz, 1467 MHz, 1334 MHz, 1200 MHz, 1067 MHz, 2367 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1200 |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Interfaces | Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU <br /> 4 x DIMM 288-pin <br /> 1 x PCIe 4.0 x16 <br /> 1 x PCIe 3.0 x16 (x4 mode) <br /> 1 x PCIe 3.0 x1 <br /> 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 <br /> SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 <br /> SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

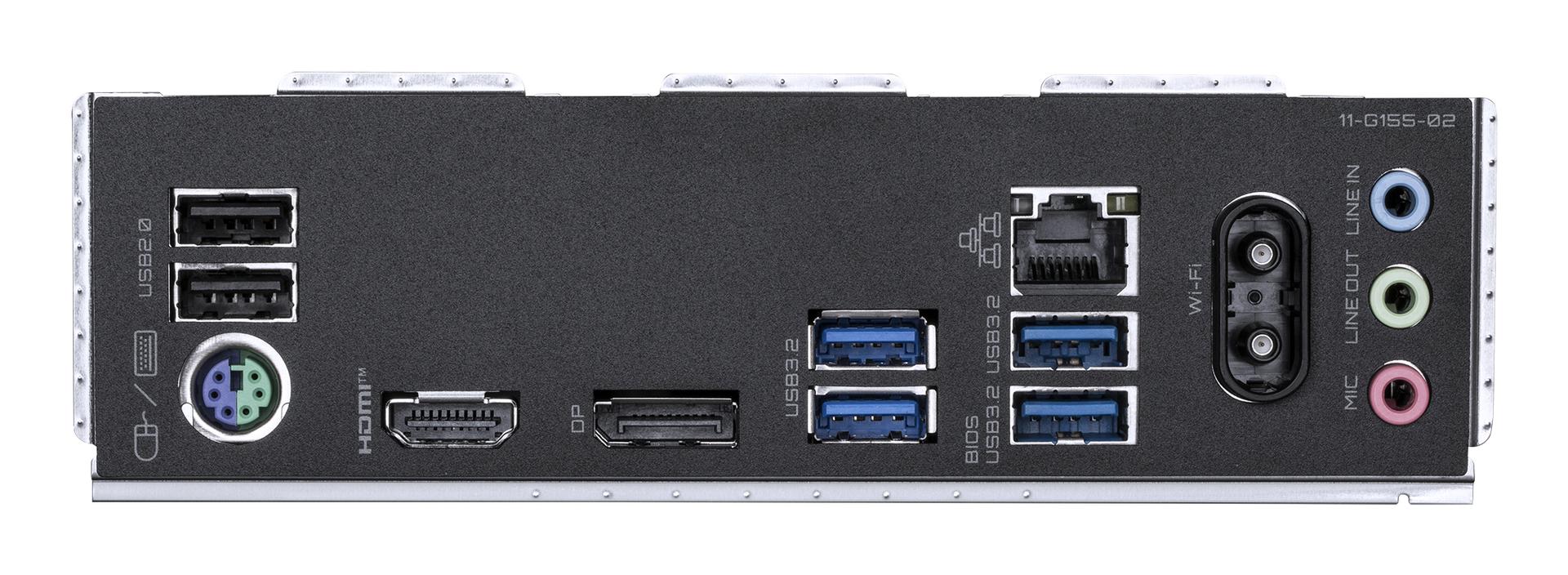

| Interfaces | 1 x HDMI <br /> 1 x DisplayPort <br /> 2 x USB 2.0 <br /> 1 x PS/2 keyboard / mouse <br /> 4 x USB 3.2 Gen 1 <br /> 1 x LAN (Gigabit Ethernet) <br /> 2 x aerial <br /> 1 x microphone - mini-jack <br /> 1 x audio line-in - mini-jack <br /> 1 x audio line-out - mini-jack |
| Internal Interfaces | 2 x USB 2.0 - header <br /> 2 x USB 3.2 Gen 1 - header <br /> 1 x USB-C 3.2 Gen 1 - header <br /> 1 x audio - header <br /> 1 x SPI - header <br /> 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, UEFI BIOS, PnP 1.0a support |
| Hardware Monitoring | Fan fail warning, fan control, system voltage, temperature detection, water cooling flow rate, fan speed detection |
| Hardware Features | Q-Flash, Q-Flash Plus, RGB FUSION, Q-Flash Plus button, Ultra Durable, DIY Friendly Design, 5+3 Phase Power Design, chipset heatsink, GIGABYTE Smart Fan 6, PCIe EZ Latch, VRM heatsink design, WIFI EZ Plug |
| Miscellaneous | |
| Included Accessories | IO shield, Wi-Fi aerial |
| Cables Included | 1 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), LAN manager, GIGABYTE App Center, GIGABYTE Control Center |
| Compliant Standards | HDCP 2.3, DisplayPort 1.4 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
