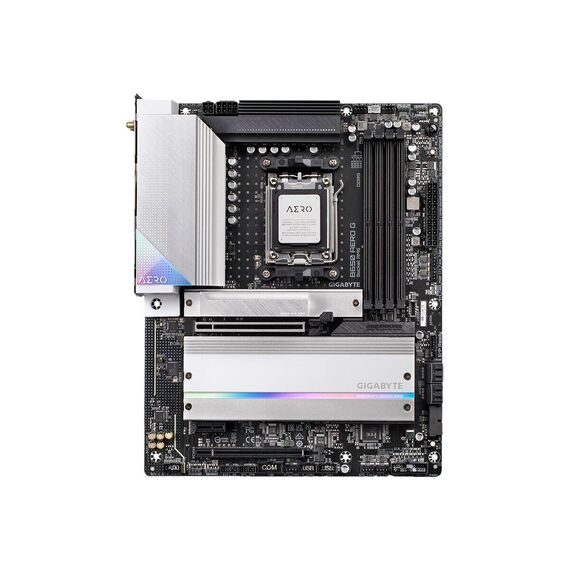

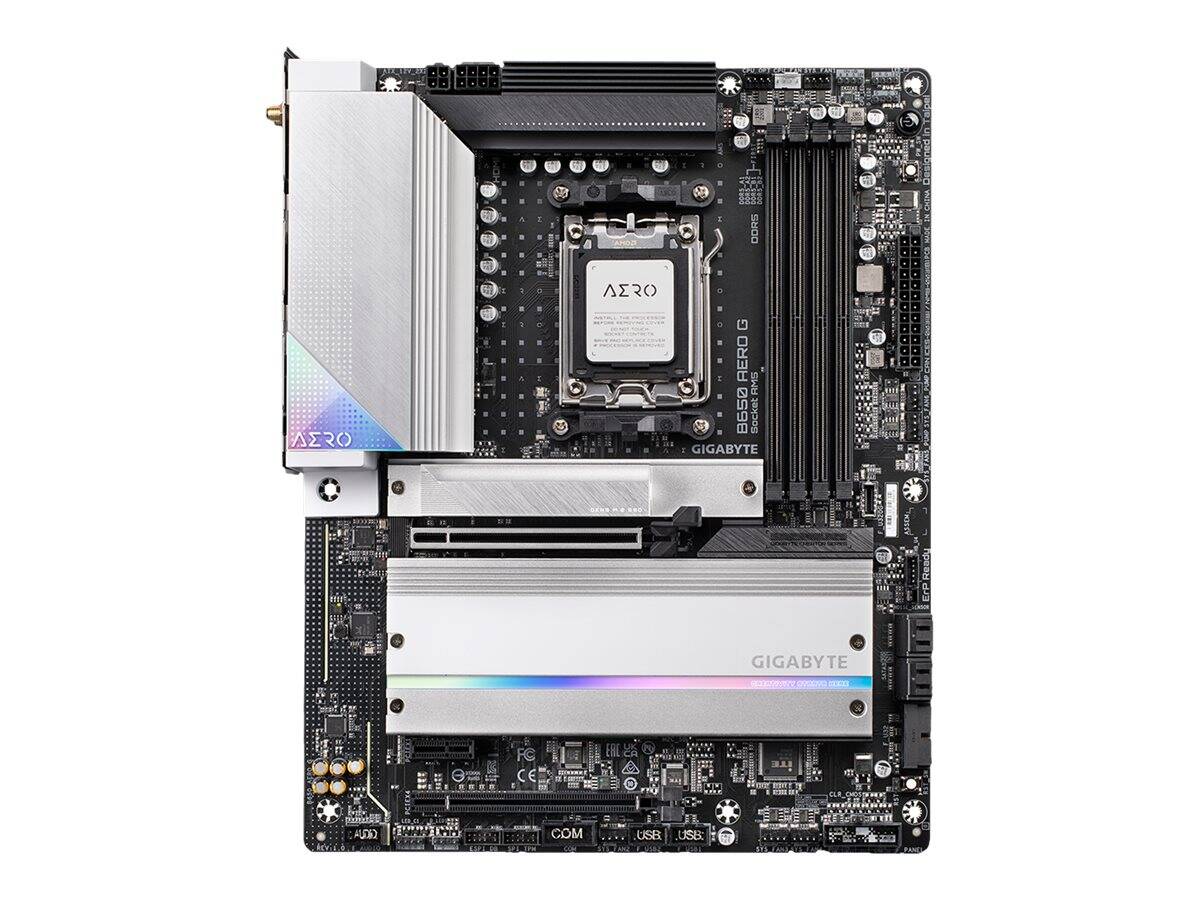

Gigabyte B650 AERO G - 1.0 - motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel) | B650 AERO G
Please sign in so that we can notify you about a reply
Product Features
- Simplify your connections.
Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C cable. - Connectivity powerful
AERO series motherboards let you experience the ultimate connectivity and easy access to all your connections. - DDR5 - faster instant reaction speed
Whether you're editing hundreds of audio samples, working with 4K video, or even multitasking, DDR5 will satisfy your insatiable need for speed. - Fast speed, more space
Equipped with a full-speed PCIe 5.0 M.2 slot. A total of three onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration. - Aesthetic cooling design.
GIGABYTE's advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.
Special Fetures
- AMD Socket AM5 - supports AMD Ryzen 7000 series processors
- VisionLINK - one USB-C port for video, data transfer and charging
- Dual channel DDR5 - 4 DIMMs with AMD EXPO and Intel XMP memory module support
- Next generation storage - 1 PCIe 5.0 x4 and 2 PCIe 4.0 x4 M.2 connectors
- Advanced thermal design and M.2 Thermal Guard III - to ensure VRM power stability and 25110 PCIe 5.0 M.2 SSD performance
- EZ-Latch - PCIe x16 Slot and M.2 connectors with quick release and screwless design
- Fast networks - Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended connectivity - DP IN, HDMI, front USB-C 20Gbps support and upcoming GIGABYTE USB4 AIC support
- Smart Fan 6 - features multiple temperature sensors, hybrid fan headers with fan stop and noise detection
- Q-Flash Plus - update BIOS without installing the CPU, memory and graphics card
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6666 MHz (O.C.), 6600 MHz (O.C.), 4400 MHz, 5200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220-VB |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Controller | AMD RZ616 (MT7922A22M) |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x16 (x1 mode) ¦ 3 x M.2 socket (2280/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x SPDIF out ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, fan fail warning, fan control, noise detection |
| Hardware Features | Q-Flash, Q-Flash Plus, Water Pump Header, GIGABYTE Smart Fan 6, M.2 Thermal Guard III |
| Miscellaneous | |
| Included Accessories | Wi-Fi aerial, m.2 screw / standoff sets, noise detection cable |
| Cables Included | 2 x Serial ATA cable ¦ DisplayPort cable |
| Software Included | Norton Internet Security |
| Compliant Standards | DisplayPort 1.4, HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
