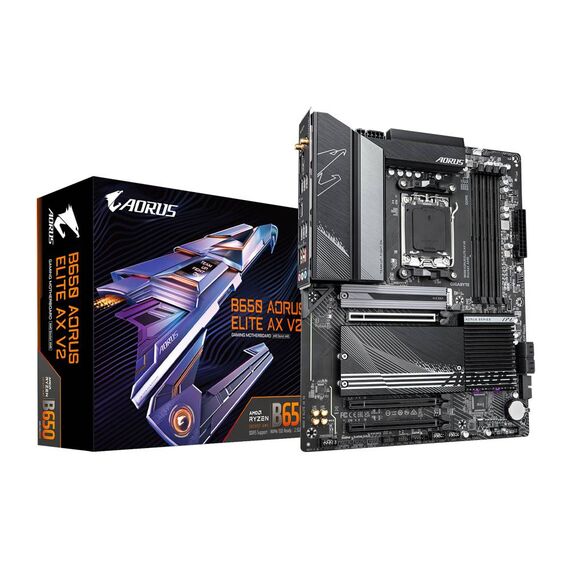

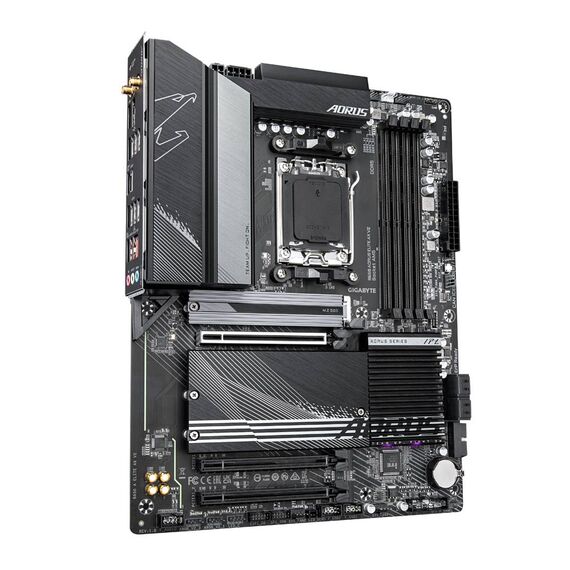

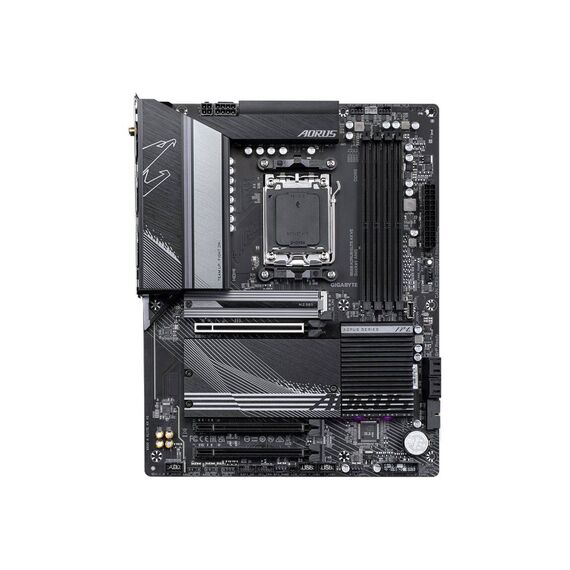

Gigabyte B650 AORUS ELITE AX V2 / Motherboard / ATX / Socket AM5 / AMD B650 Chipset / USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / HD Audio | B650 A ELITE AX V2
Please sign in so that we can notify you about a reply
Product Features
- Advanced connectivity
Equipped with HDMI, DisplayPort, and USB-C 3.2 Gen 2 ports, this motherboard offers versatile connectivity options for a wide range of devices, ensuring seamless integration into any setup. - High-speed memory support
Supports DDR5 SDRAM with speeds up to 8000 MHz (O.C.), enabling faster data processing and improved system performance for demanding applications and gaming. - Robust networking capabilities
Features 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E, providing a comprehensive suite of fast networking options for uninterrupted connectivity and data transfer. - Enhanced cooling solutions
GIGABYTE Smart Fan 6 technology along with M.2 Thermal Guard ensures optimal cooling for improved system stability and performance, even under heavy loads. - Durable design
The durable construction with 2oz Copper PCB, 6 Layer PCB, and pre-mounted I/O shield offers reliability and longevity, protecting your investment.
Special Features
- Supports DDR5 SDRAM with speeds up to 8000 MHz (O.C.) for superior memory performance
- Equipped with HDMI, DisplayPort, and USB-C 3.2 Gen 2 for versatile connectivity
- 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E for fast networking
- GIGABYTE Smart Fan 6 and M.2 Thermal Guard for effective cooling
- Durable design with 2oz Copper PCB and pre-mounted I/O shield
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 6666 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5600 MHz (O.C.), 5200 MHz, 4800 MHz, 4400 MHz, 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8852CE |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe x16 2 x PCIe 3.0 x16 (x1 mode) 3 x M.2 socket (2280/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

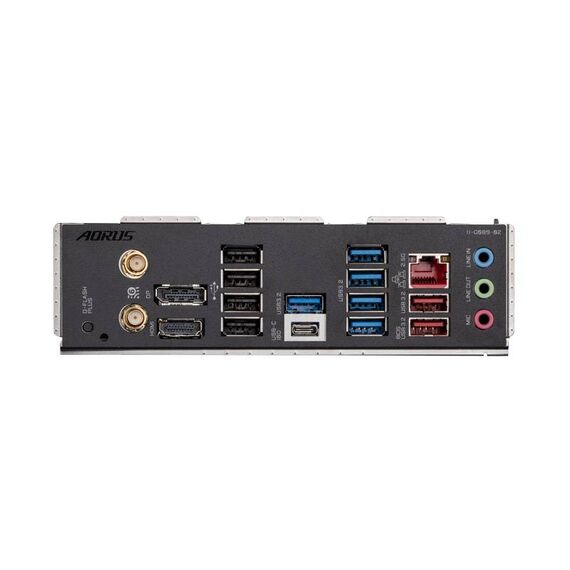

| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 5 x USB 3.2 Gen 1 4 x USB 2.0 2 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control |
| Hardware Features | Q-Flash Plus, Q-Flash, 12+2+2 Phase Power Design, M.2 Thermal Guard, PCIe EZ Latch, M.2 EZ Latch plus, GIGABYTE Smart Fan 6, 6 Layer PCB, 2oz Copper PCB, M.2 Thermal Guard Ext., pre-mounted I/O shield, RGB FUSION, MultiKey, DIY Friendly Design, Ultra Durable |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Package Details | Box |
Features - GigaByte - B650 A ELITE AX V2
More Details
Product Code
04:456091
EAN Code
4719331859381
Manufacturer
GigaByte
