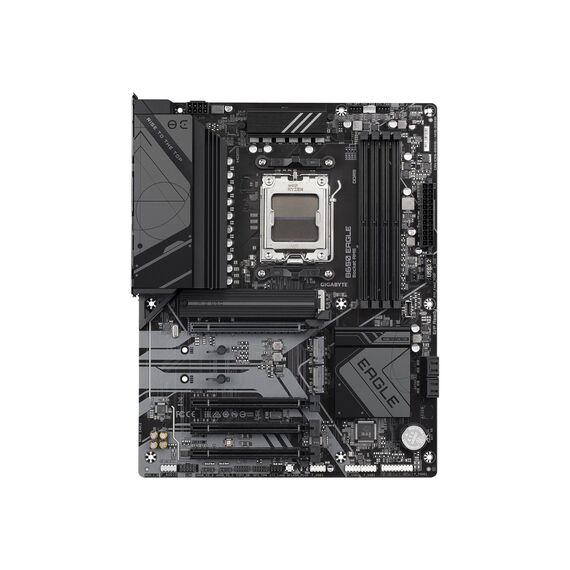

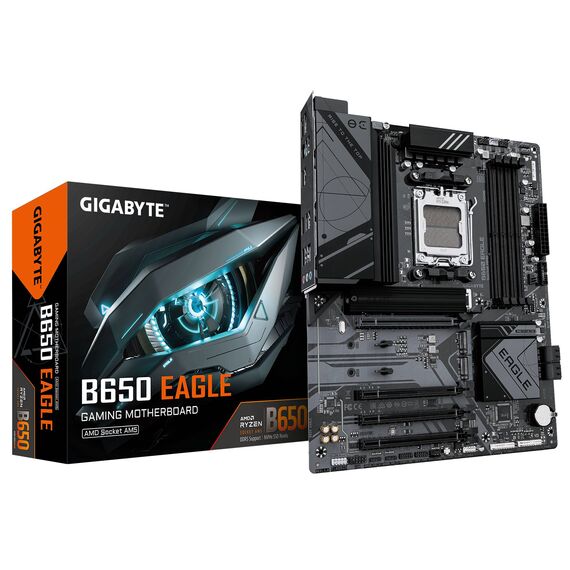

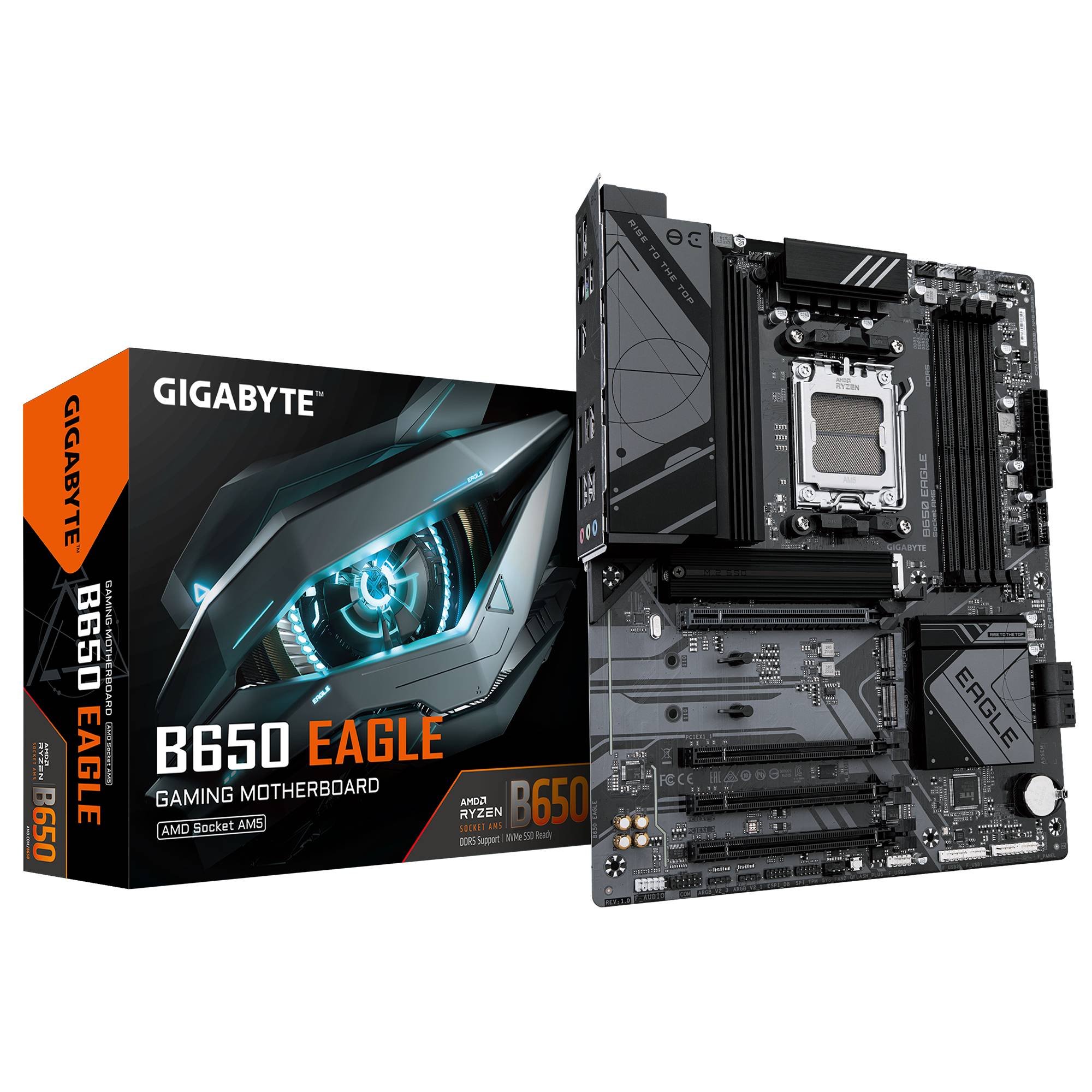

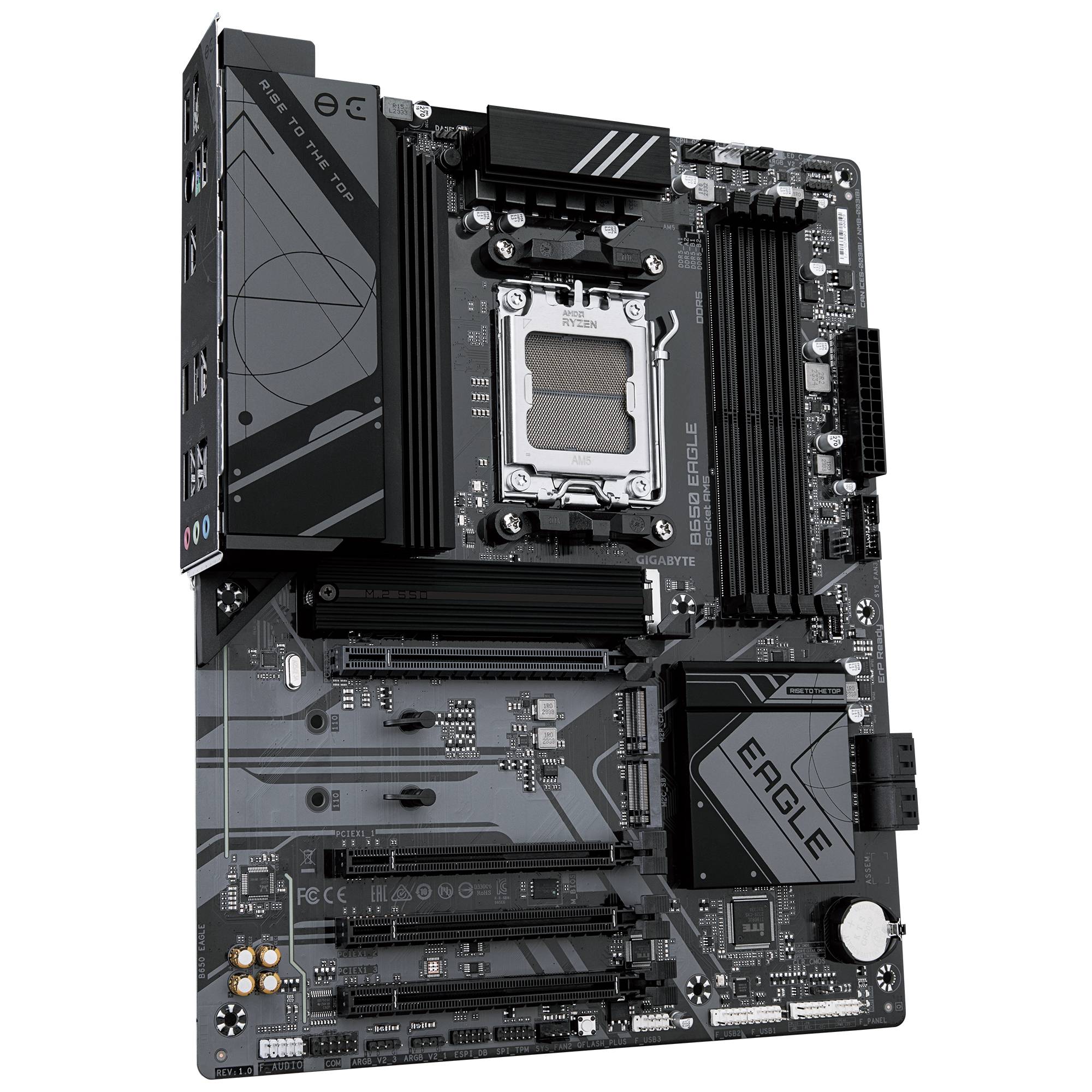

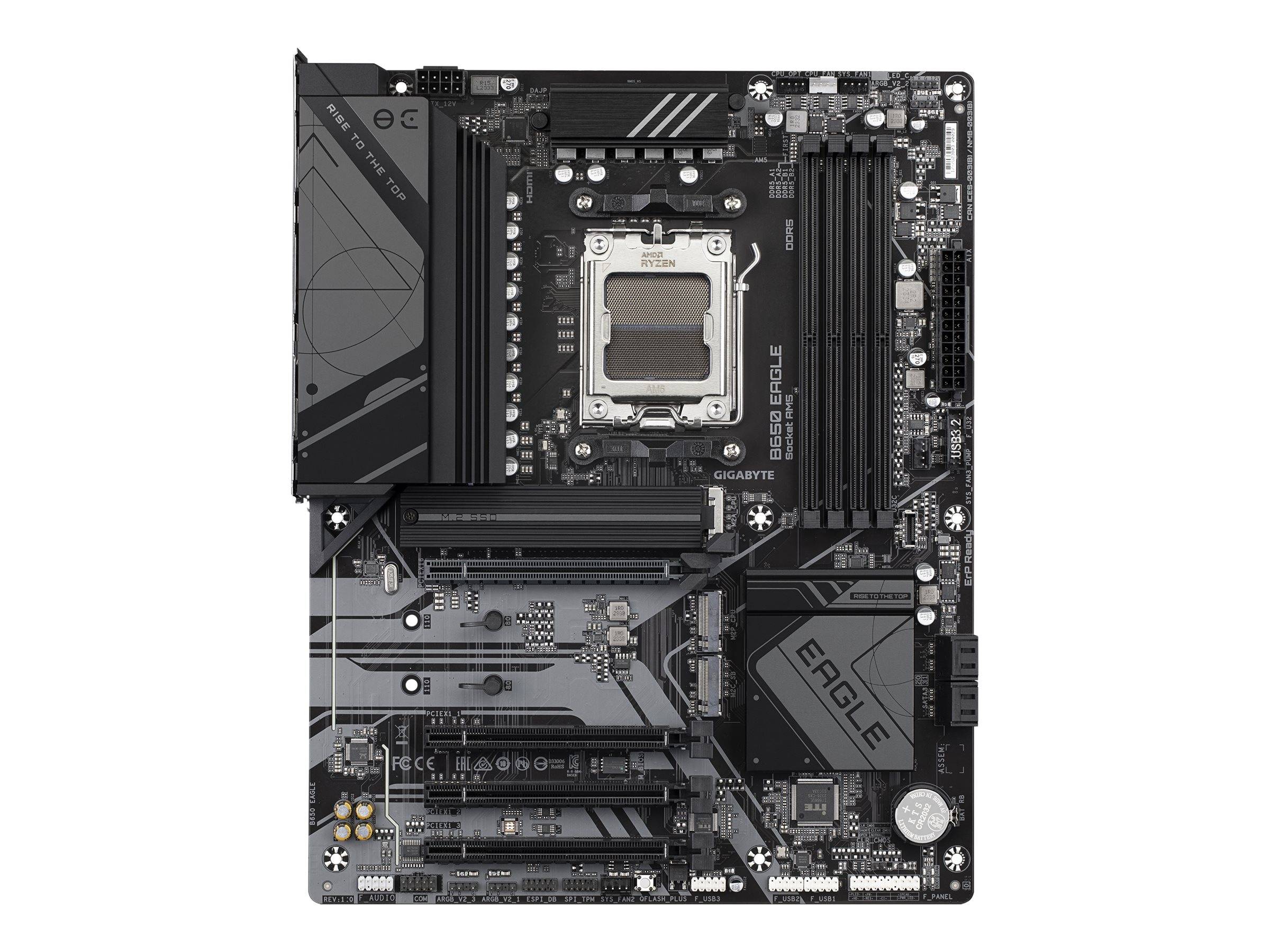

Gigabyte B650 EAGLE / Motherboard / ATX / Socket AM5 / AMD B650 Chipset / USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B650 EAGLE
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
With a variety of interfaces including HDMI, DisplayPort, USB-C 3.2 Gen 1, and USB 3.2 Gen 2, this motherboard offers extensive connectivity options for a wide range of peripherals and devices, ensuring that users can build a versatile system. - Robust memory support
Supporting DDR5 SDRAM with speeds up to 7600 MHz (O.C.), this motherboard is designed to accommodate memory technology, offering exceptional bandwidth and speed for demanding applications and gaming. - Advanced cooling
Equipped with GIGABYTE Smart Fan 6 technology and an M.2 Thermal Guard, the motherboard ensures optimal cooling for enhanced system stability and performance, even under heavy loads. - Durable design
Featuring a 12+2+2 Phase Power Design, 6 Layer PCB, and durable components, the motherboard is built to withstand the rigors of extended use, providing reliability and longevity for your system.
Special Features
- Supports Ryzen 7000/8000 Series processors for advanced performance
- High definition audio (8-channel) for an immersive sound experience
- Multiple storage options with M.2 and SATA-600 interfaces, supporting RAID configurations
- Up to 7600 MHz (O.C.) DDR5 support for fast memory speeds
- Pre-mounted I/O shield and DIY-friendly design for easy installation
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 3 x PCIe 3.0 x16 (x1 mode) 2 x M.2 socket (2280/25110 M.2 Key M slot) 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

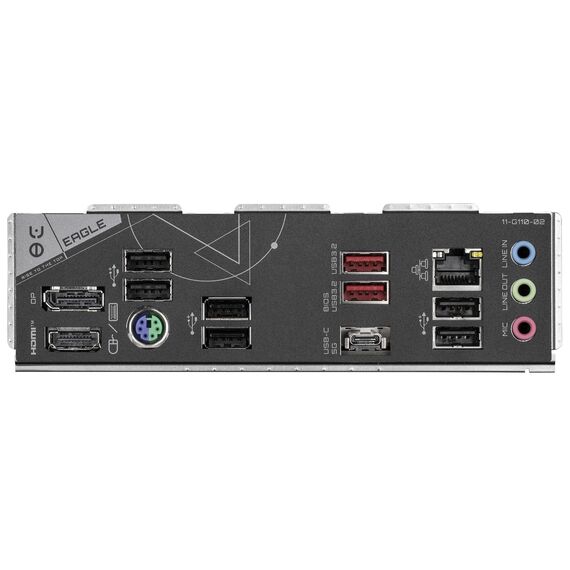

| Interfaces | 1 x HDMI 1 x DisplayPort 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB-C 3.2 Gen 1 2 x USB 3.2 Gen 2 6 x USB 2.0 1 x PS/2 keyboard / mouse 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 6 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 1 - header 1 x audio - header 1 x SPI - header 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan fail warning, fan control, system voltage, temperature detection, water cooling flow rate, fan speed detection |
| Hardware Features | Q-Flash Plus, Q-Flash, 12+2+2 Phase Power Design, 6 Layer PCB, M.2 Thermal Guard, pre-mounted I/O shield, RGB FUSION, GIGABYTE Smart Fan 6, PCIe EZ Latch, Audio Noise Guard, High-end Audio Capacitors, Ultra Durable, MOSFET Heatsink, DIY Friendly Design |
| Miscellaneous | Miscellaneous |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Compliant Standards | DisplayPort 1.4, HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Package Details | Box |
Features - GigaByte - B650 EAGLE
More Details
Product Code
04:480948
EAN Code
4719331863081
Manufacturer
GigaByte
