Product Features
- Enhanced connectivity
With a variety of interfaces including DisplayPort, HDMI, VGA, USB 2.0, and USB 3.2 Gen 1, this motherboard ensures comprehensive connectivity options for all your peripherals. - Robust audio experience
High definition audio with 8-channel support provides an immersive sound experience, complemented by high-end audio capacitors and Audio Noise Guard. - Optimized for performance
Supports 12th/13th and 14th Generation Intel Core processors on a LGA1700 Socket, paired with DDR4 SDRAM technology, allowing for speeds up to 5333 MHz (O.C.), ensuring high-speed performance and reliability. - Advanced cooling
GIGABYTE Smart Fan 6 features multiple temperature sensors, fan speed detection, and water cooling flow rate detection, enabling efficient cooling for enhanced system stability. - Durable and user-friendly design
Features such as durable construction, PCIe EZ Latch, and Solid Pin Power Connectors ensure a long-lasting and easy-to-maintain system setup.
Special Features
- Supports a wide range of DDR4 speeds up to 5333 MHz (O.C.) for enhanced system performance
- Multiple storage options with 4 x SATA-600 (RAID), 2 x M.2 connectors for high-speed SSDs
- Comprehensive cooling system with GIGABYTE Smart Fan 6 for optimal temperature management
- High definition audio (8-channel) with premium audio capacitors for an immersive sound experience
- DIY-friendly design with durable construction and easy-to-use features like PCIe EZ Latch
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 Express |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3666 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4300 MHz (O.C.), 4400 MHz (O.C.), 4500 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.), 5133 MHz (O.C.), 5333 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |

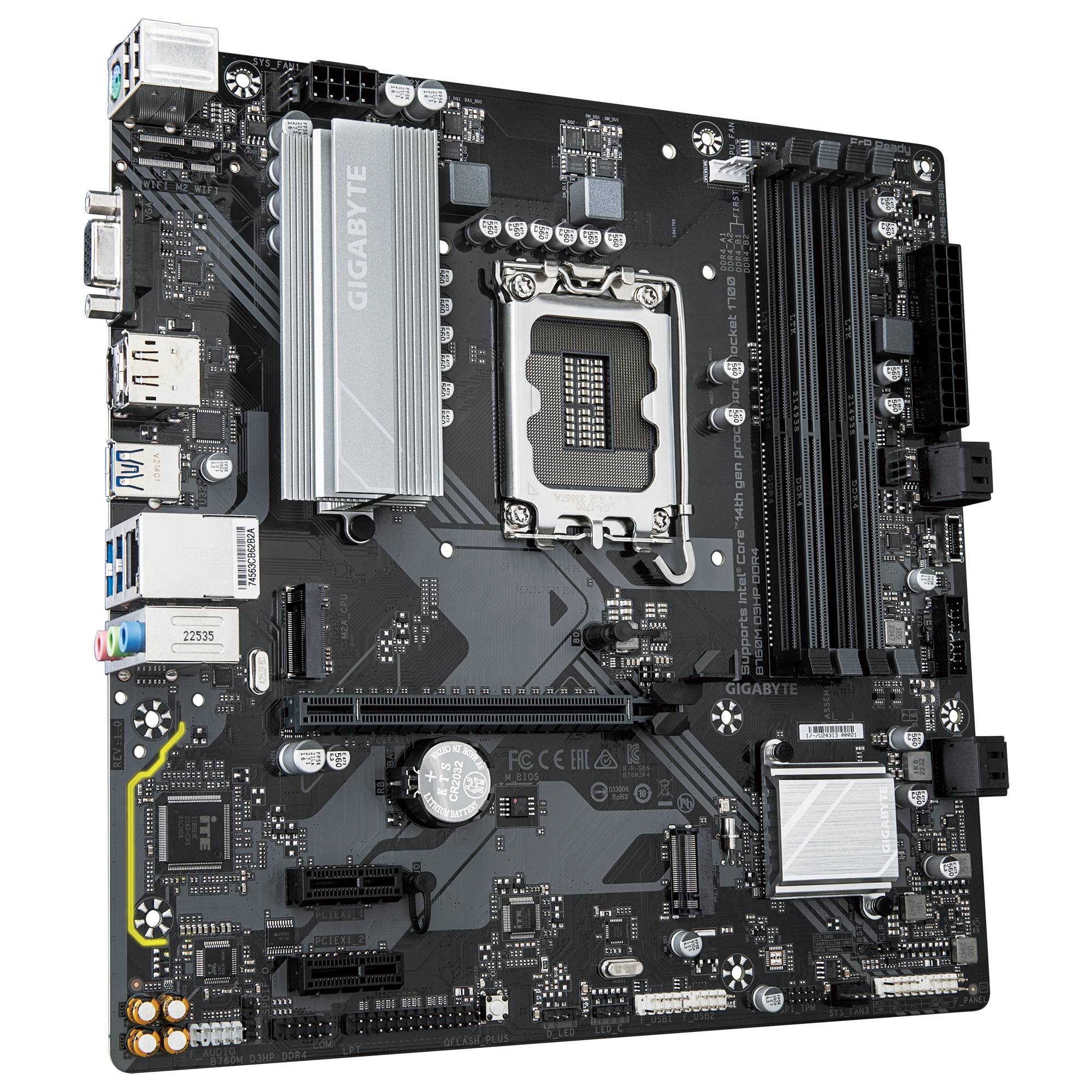

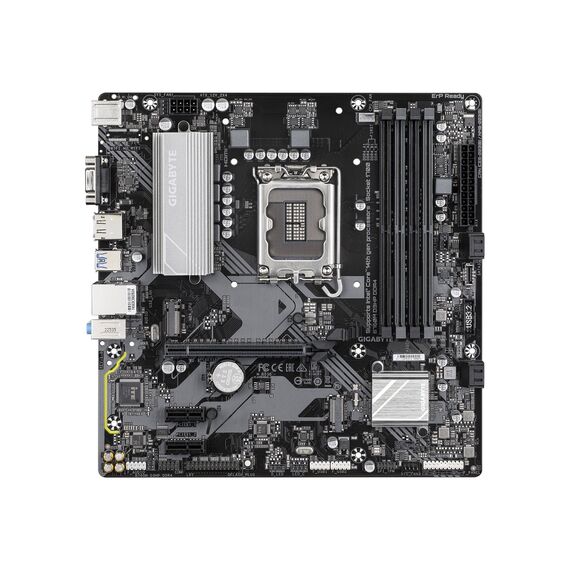

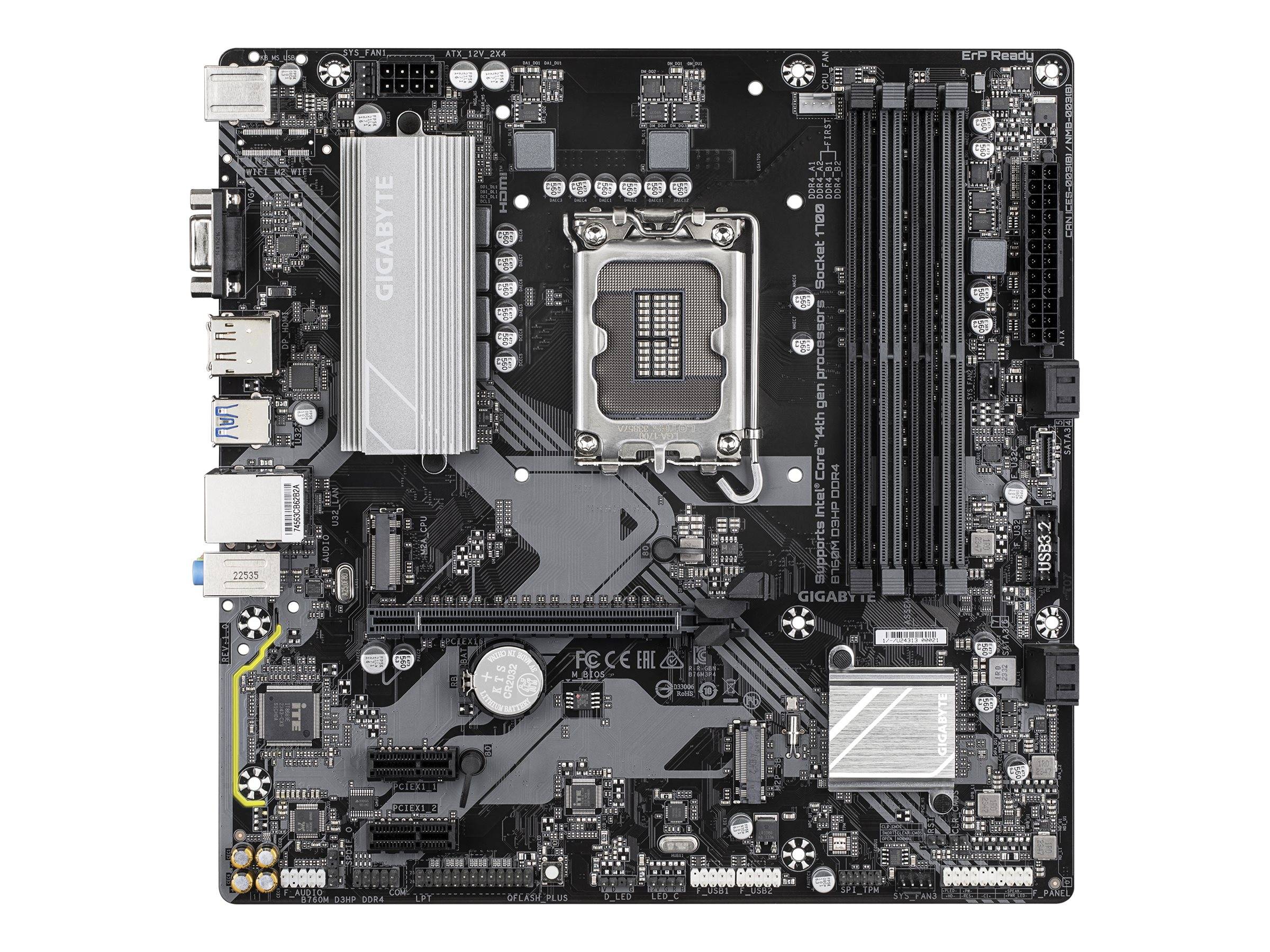

| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |

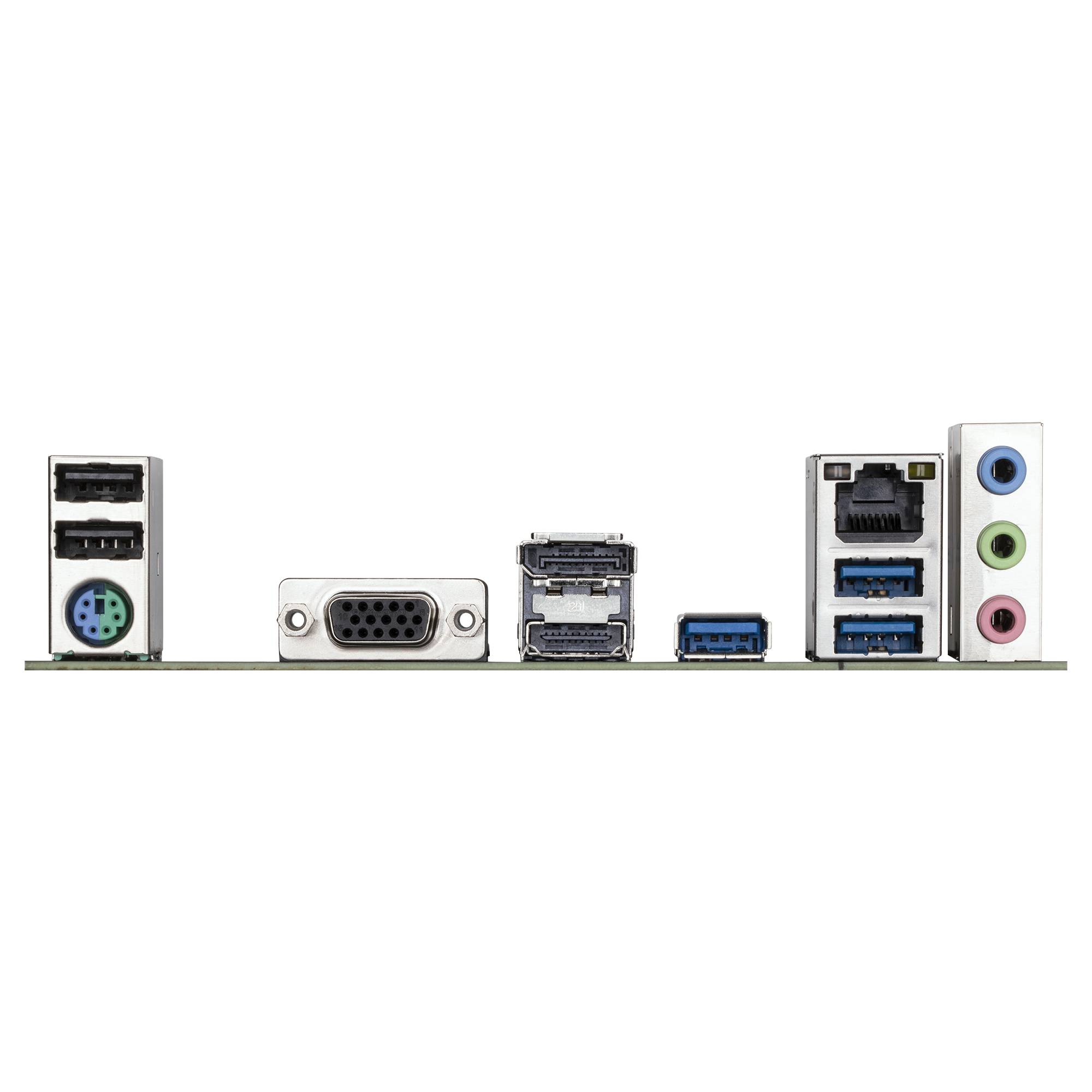

| Interfaces | 1 x DisplayPort 1 x HDMI 1 x VGA 2 x USB 2.0 3 x USB 3.2 Gen 1 1 x LAN (Gigabit Ethernet) 1 x PS/2 keyboard / mouse 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x parallel - header 1 x serial - header 1 x SPI - header 1 x SPDIF out - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS |
| Hardware Monitoring | Fan fail warning, fan control, water cooling flow rate, system voltage, temperature detection, fan speed detection |
| Hardware Features | 4+1+1 Phase Power Design, Q-Flash Plus, Q-Flash, Audio Noise Guard, High-end Audio Capacitors, RGB FUSION, PCIe EZ Latch, Ultra Durable, DIY Friendly Design, Solid Pin Power Connectors, GIGABYTE Smart Fan 6 |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center |
| Width | 24.4 cm |
| Depth | 24.4 cm |

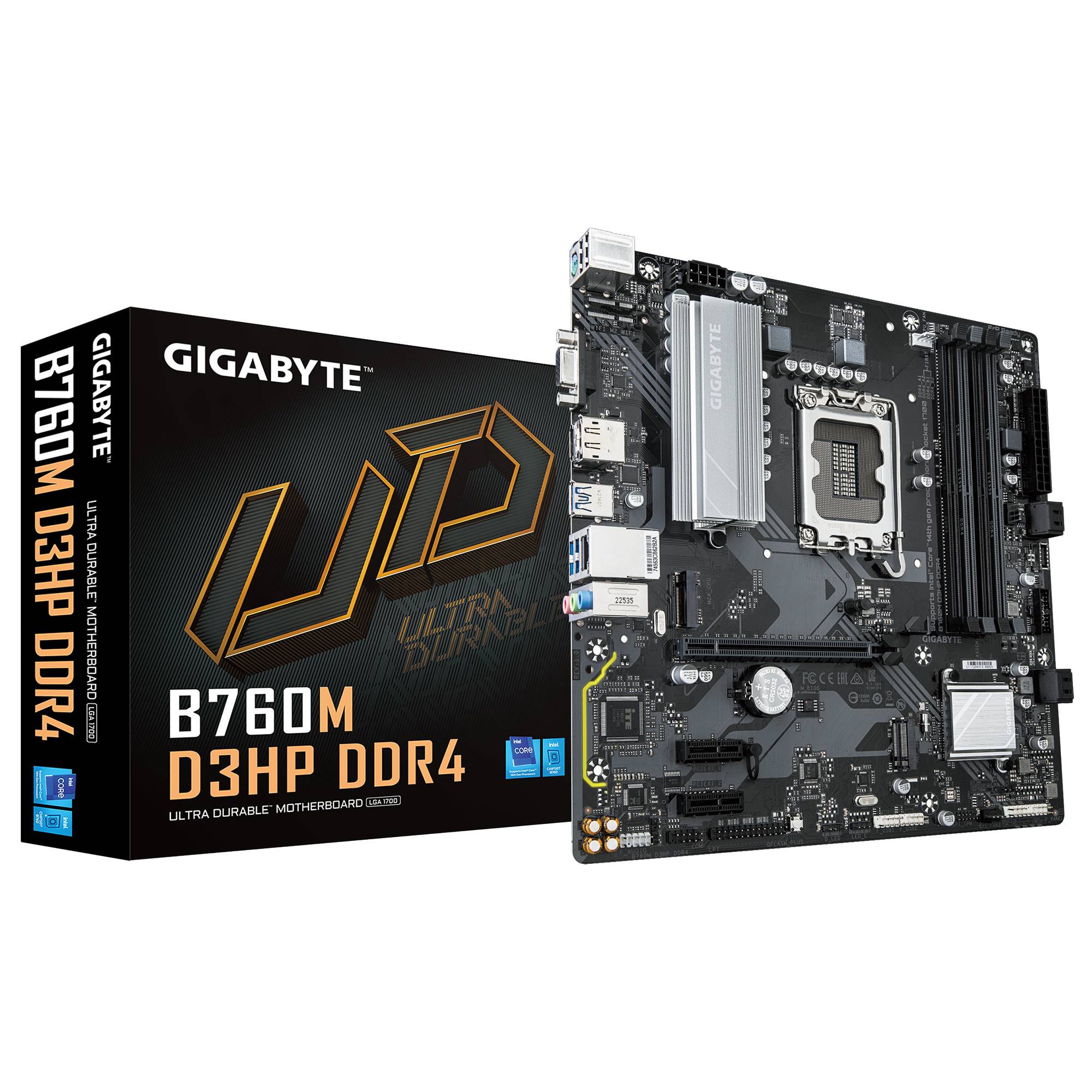

| Package Details | Box |
Features - GigaByte - B760M D3HP DDR4
CPU Socket
- Socket 1700
More Details
Product Code
04:480946
EAN Code
4719331862848
Manufacturer
GigaByte
