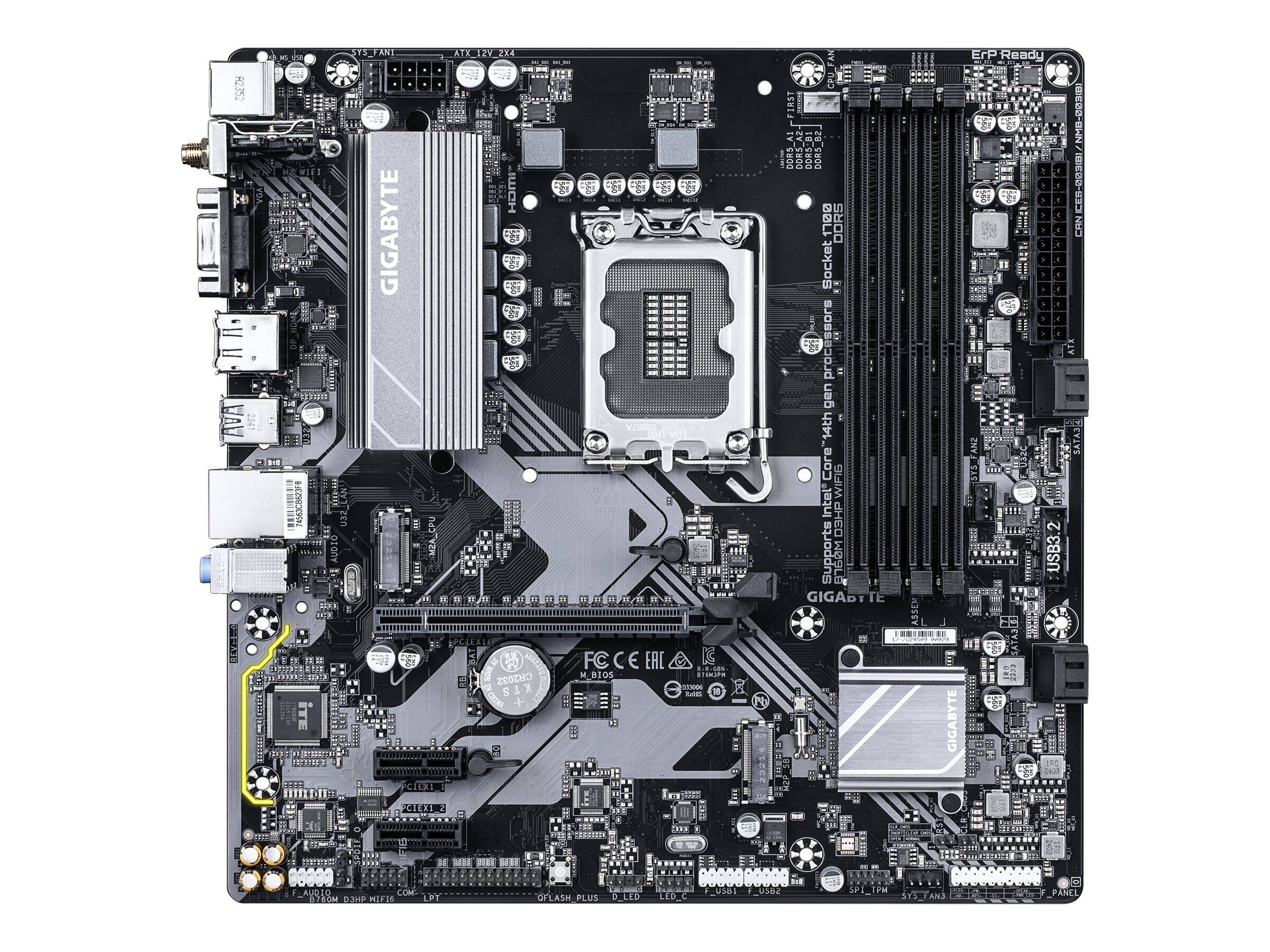

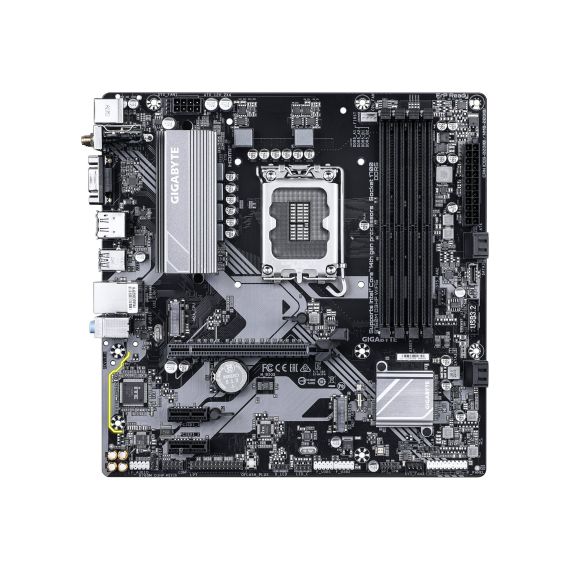

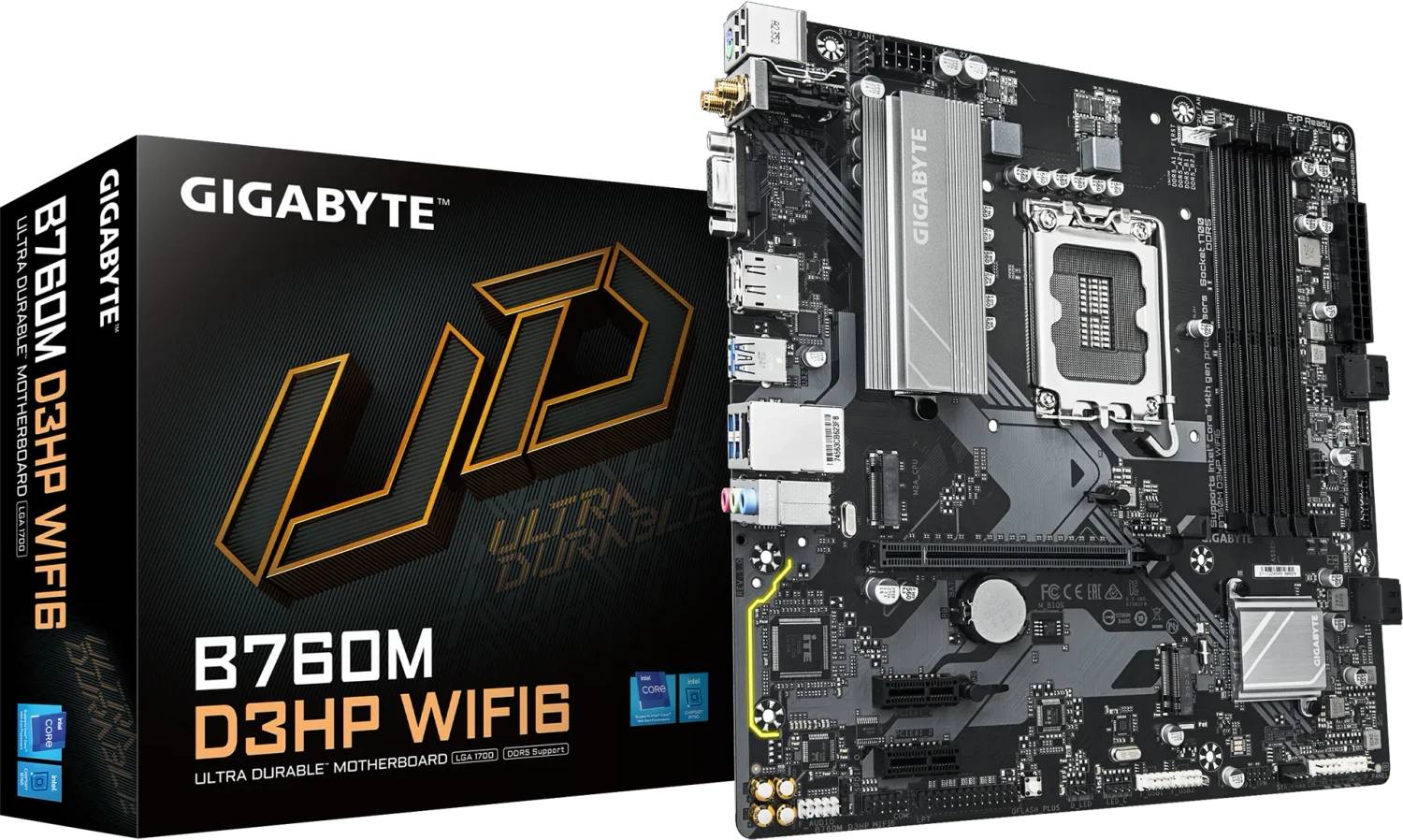

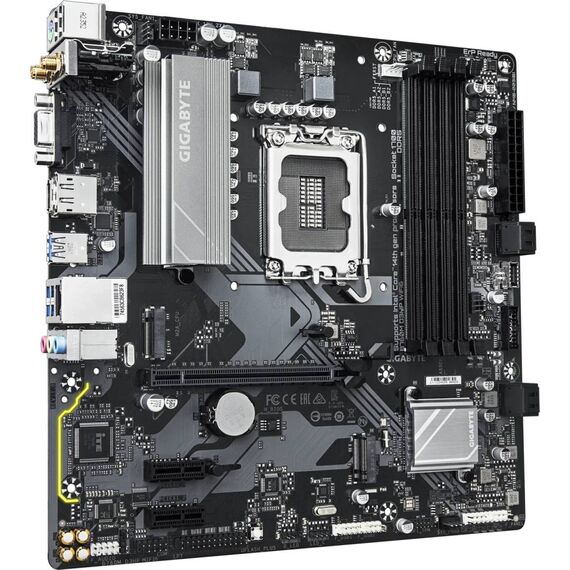

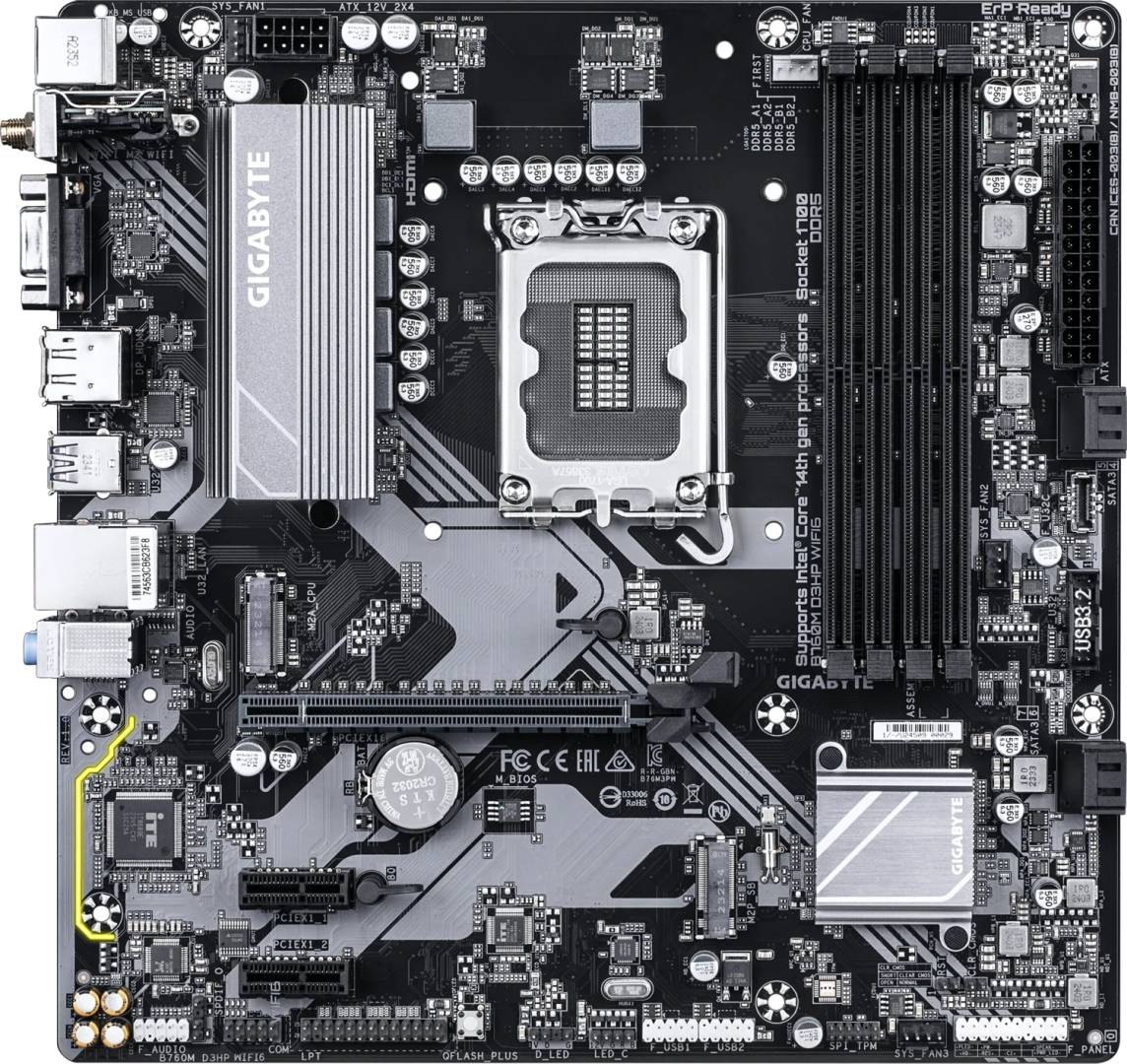

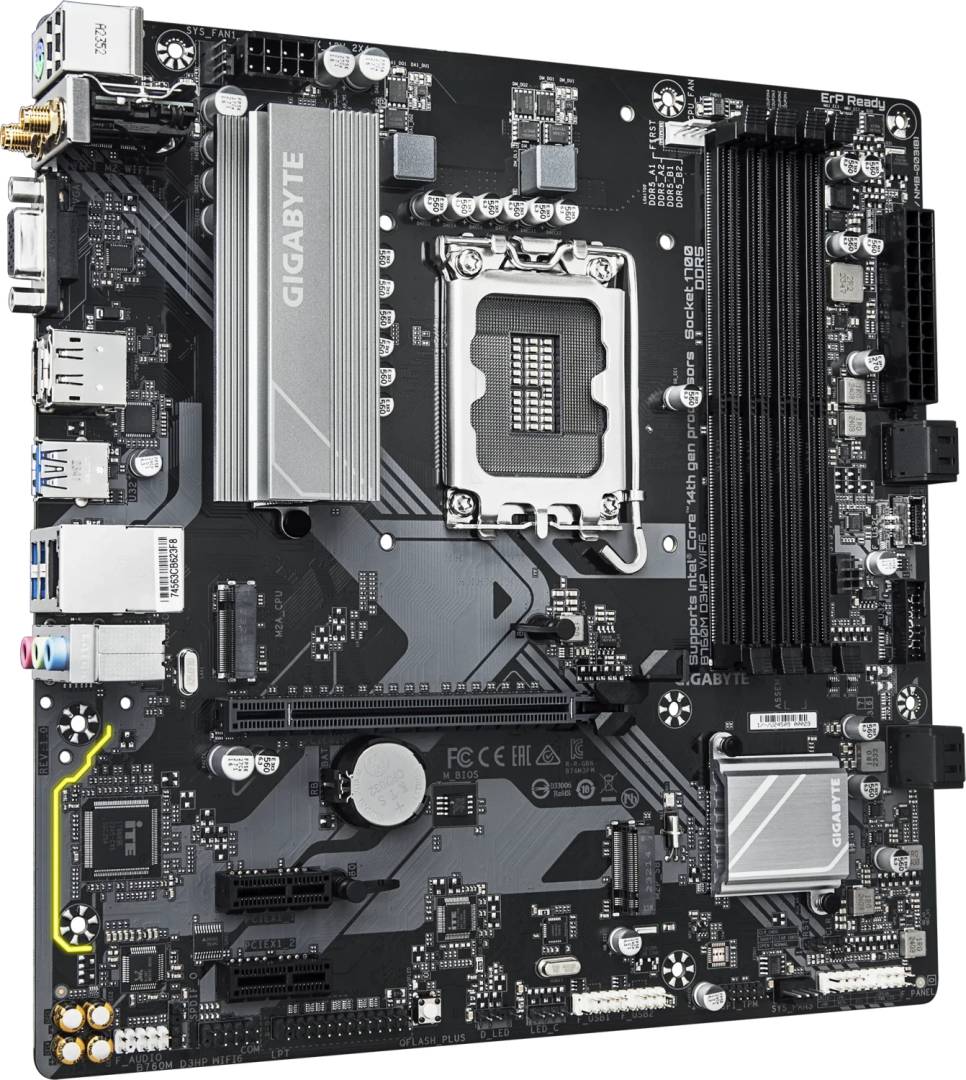

Gigabyte B760M D3HP WIFI6 - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Gigabit LAN, Bluetooth, Wi-Fi 6 - onboard graphics (CPU required) - HD Audio (8-channel) | B760M D3HP WIFI6
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 2800 MHz, 2600 MHz, 2400 MHz, 2200 MHz, 3800 MHz |
| Supported RAM Integrity Check | ECC (operate in non-ECC mode), non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Interfaces | Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU <br /> 4 x DIMM 288-pin <br /> 1 x PCIe 4.0 x16 <br /> 2 x PCIe 3.0 x1 <br /> 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 <br /> PCIe 4.0 -connectors: 2 x M.2 |

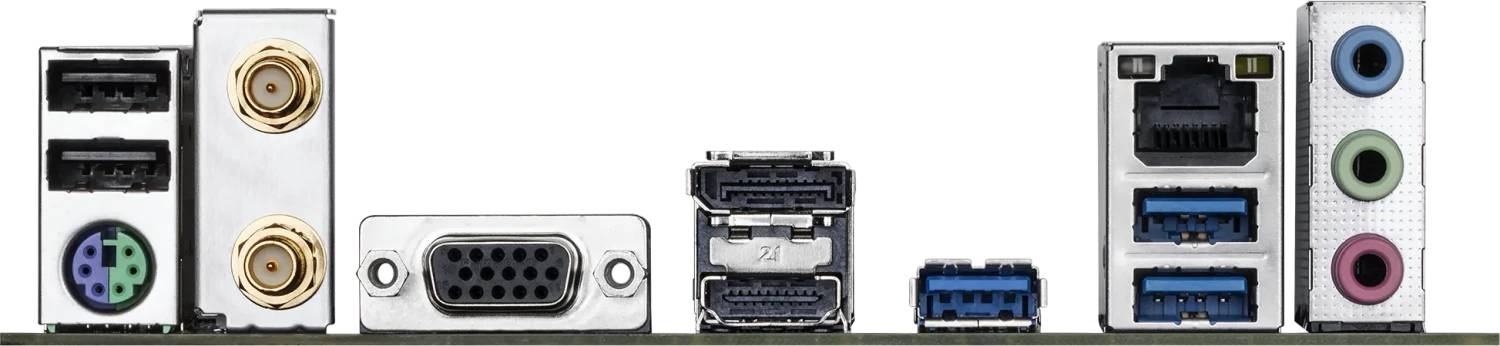

| Interfaces | 1 x DisplayPort <br /> 1 x HDMI <br /> 1 x VGA <br /> 2 x USB 2.0 <br /> 1 x PS/2 keyboard / mouse <br /> 2 x aerial <br /> 1 x audio line-in - mini-jack <br /> 1 x audio line-out - mini-jack <br /> 1 x microphone - mini-jack <br /> 1 x LAN (Gigabit Ethernet) <br /> 3 x USB 3.2 Gen 1 |
| Internal Interfaces | 4 x USB 2.0 - header <br /> 2 x USB 3.2 Gen 1 - header <br /> 1 x USB-C 3.2 Gen 1 - header <br /> 1 x audio - header <br /> 1 x SPDIF out - header <br /> 1 x SPI - header <br /> 1 x serial - header <br /> 1 x parallel - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | System voltage, chassis temperature, fan control, fan speed detection, fan fail warning, temperature detection, water cooling flow rate |
| Hardware Features | Q-Flash, Q-Flash Plus, Q-Flash Plus button, 4+1+1 Phase Power Design, chipset heatsink, GIGABYTE Smart Fan 6, PCIe EZ Latch, Ultra Durable, VRM heatsink design, GIGABYTE PerfDrive |
| Miscellaneous | |
| Included Accessories | IO shield, Wi-Fi aerial |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center |
| Compliant Standards | HDCP 2.3, DisplayPort 1.2 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - GigaByte - B760M D3HP WIFI6
CPU Socket
- Socket 1700
More Details
Product Code
07:21231210
EAN Code
4719331867638
Manufacturer
GigaByte
