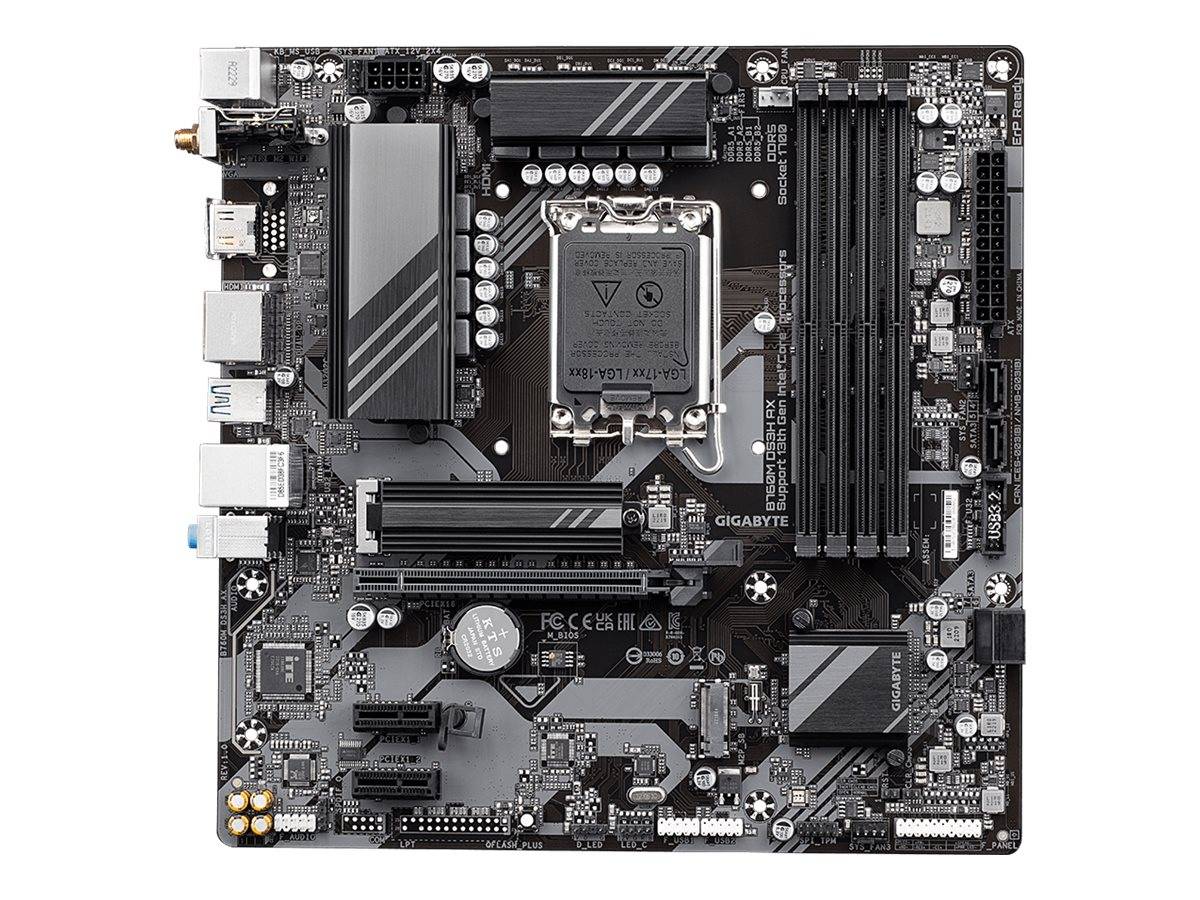

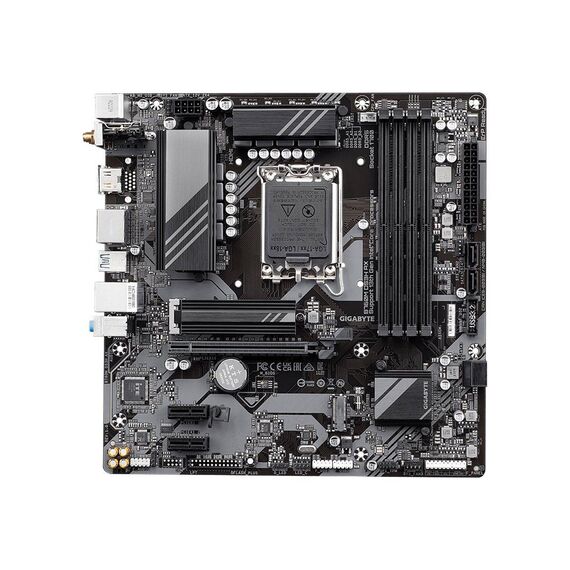

Gigabyte B760M DS3H AX / 1.X / motherboard / micro ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1, USB-C 3.2 Gen2 / Bluetooth, 2.5 Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | B760M DS3H AX
Please sign in so that we can notify you about a reply
Product Features
- Gigabyte PerfDrive
PerfDrive technology integrates multiple Gigabyte exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel Core processors. - Gigabyte ultra-efficient M.2 Thermal Guard
With durability in mind, Gigabyte provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. - Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. - Ultimate connection
Gigabyte motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage and Wi-Fi connectivity. - RGB fusion multi-zone light show design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. - Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With Gigabyte Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS.
Special Features
- Intel Socket LGA 1700 - support 13th and 12th Gen series processors
- Unparalleled performance - hybrid 6+2+1 Phases Digital VRM solution
- Dual Channel DDR4 - 4 x DIMMs XMP memory module support
- Next generation storage:2 x PCIe 4.0 x4 M.2 connectors
- M.2 thermal guard - to ensure M.2 SSD performance
- EZ-Latch - PCIe 4.0 x16 slot with quick release design
- Fast networks - 2.5GbE LAN and Wi-Fi 6E 802.11ax
- Extended connectivity - rear USB-C 10 Gbps, DP, HDMI
- Smart Fan 6 - features multiple temperature sensors, hybrid fan headers with fan stop
- Q-Flash Plus - update BIOS without installing the CPU, memory and graphics card
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces | 2 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ PS/2 keyboard / mouse ¦ 2 x aerial |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Chassis temperature, fan fail warning, fan control |
| Hardware Features | Q-Flash, Q-Flash Plus, Audio Noise Guard, RGB FUSION, M.2 Thermal Guard, Solid Pin Power Connectors, DIY Friendly Design, GIGABYTE Smart Fan 6, 6+2+1 Phase Power Design, MultiKey |
| Miscellaneous | Miscellaneous |
| Included Accessories | External antenna, IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security |
| Compliant Standards | WEEE, UKCA, FCC Part 15 Subpart B |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| Package Details | Box |
Features - GigaByte - B760M DS3H AX
CPU Socket
- Socket 1700
More Details
Product Code
04:434029
EAN Code
4719331851767
Manufacturer
GigaByte
