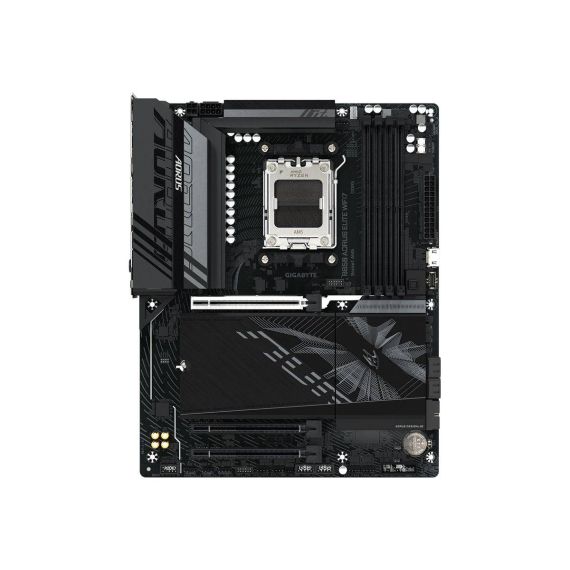

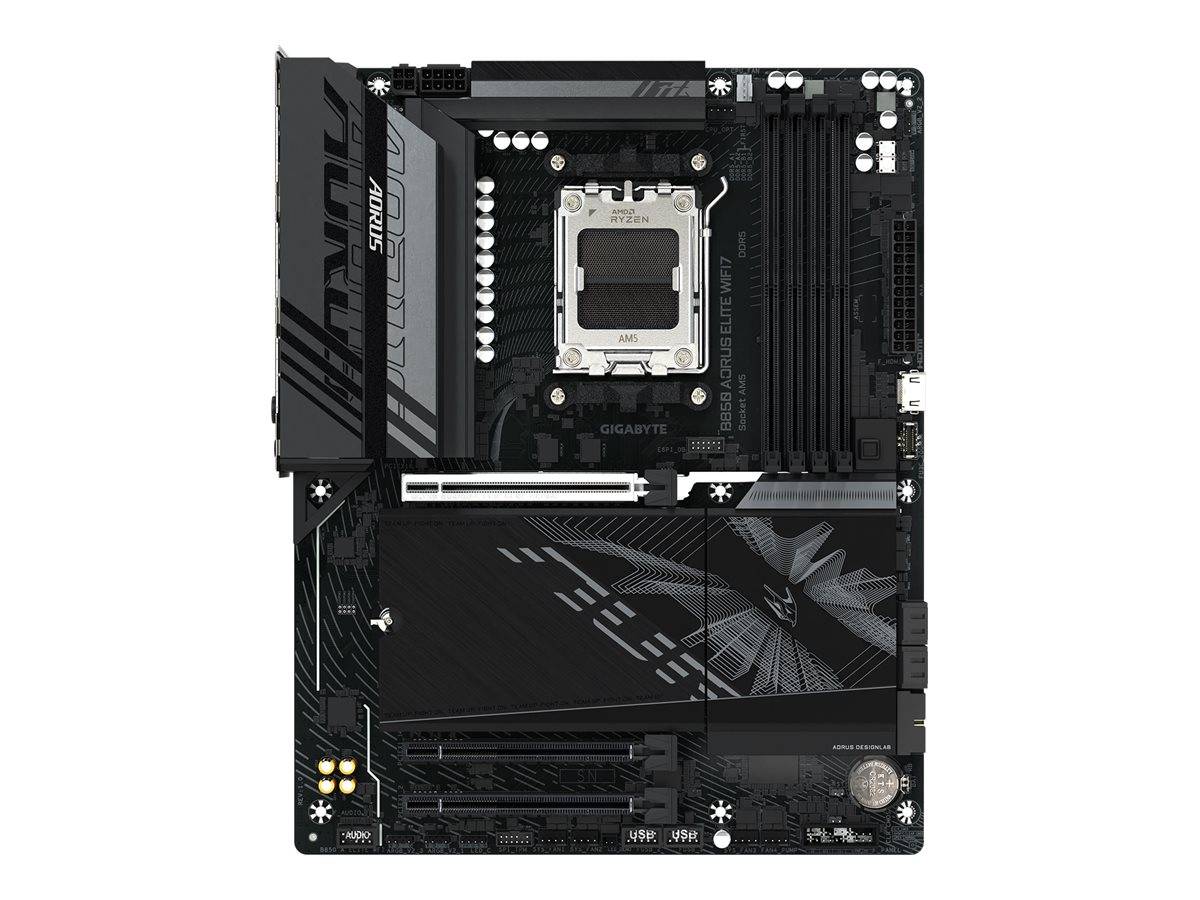

AORUS B850 ELITE WIFI7 / Motherboard / ATX / Socket AM5 / AMD B850 Chipset / USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 / Bluetooth, Wi-Fi 7, 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B850 A ELITE WF7
Please sign in so that we can notify you about a reply
Product Features
- Robust Memory Support
The motherboard supports up to 4 DIMM slots for DDR5 SDRAM, offering options for maximizing system performance. It accommodates a range of RAM speeds, from 2400 MHz to 4100 MHz overclocked, catering to various user needs. - Versatile Connectivity Options
The board includes a comprehensive array of connectivity choices, such as SATA-600, PCIe 4.0, and multiple M.2 sockets, ensuring users can connect a variety of storage devices. Additionally, the inclusion of USB-C 3.2 Gen 2x2 facilitates high-speed data transfers. - Enhanced Networking Capabilities
Equipped with 2.5 Gigabit Ethernet and Wi-Fi 7, the AORUS B850 ELITE provides impressive networking performance. With support for Wi-Fi 6 and Bluetooth 5.4, users can enjoy faster wireless connectivity for streaming, gaming, and data transfer. - Advanced Hardware Features
This motherboard features a 14+2+2 phase power design, ensuring stable power delivery to all components. The additional DIY-friendly design elements, like the M.2 EZ Latch, enhance ease of installation and hardware upgrades.
Special Features
- Supports DDR5 RAM with speeds up to 4100 MHz for performance
- Includes Wi-Fi 7 support for high-speed wireless networking
- Features multiple USB ports, including USB-C 3.2 Gen 2x2 for versatile connectivity
- Equipped with 2.5 Gigabit Ethernet for fast, reliable wired networking
- Comes with hardware monitoring features for optimal system control
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2900 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8922AE |
| Network Interfaces | Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe x16 2 x PCIe 3.0 x16 (x1 mode) 3 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 PCIe 5.0 -connectors: 1 x M.2 |
| Interfaces | 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 5 x USB 3.2 Gen 1 4 x USB 2.0 1 x DisplayPort 1 x SPDIF out 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 2 x aerial 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header 1 x HDMI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, temperature detection, fan speed detection, fan fail warning, system voltage, fan control |
| Hardware Features | 14+2+2 Phase Power Design, 6 Layer PCB, 2x Copper PCB, DIY Friendly Design, shaped PCB design, WIFI EZ-Plug, M.2 EZ Latch plus, M.2 EZ Latch click |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wi-Fi aerial, G-Connector, thermal pad for M.2 SSD, 2 x M.2 rubber package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - GigaByte - B850 A ELITE WF7
More Details
Product Code
04:517133
EAN Code
4719331866105
Manufacturer
GigaByte
