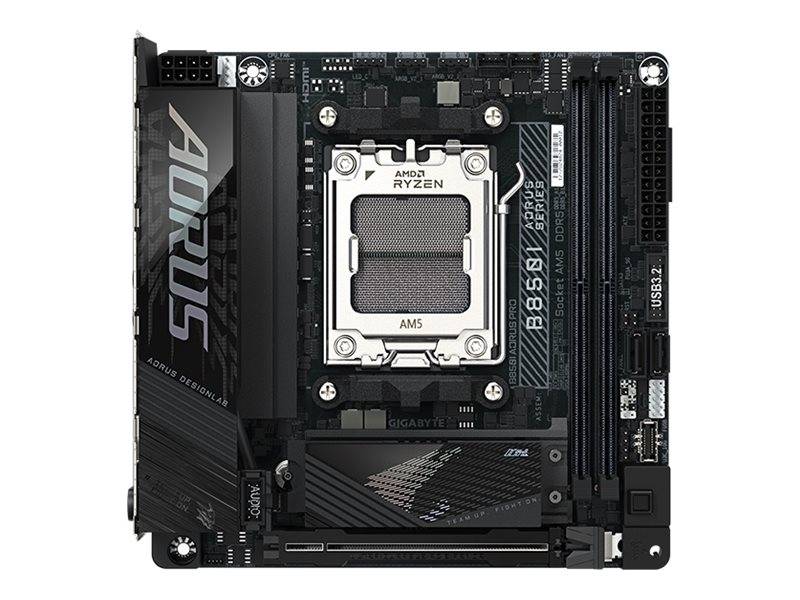

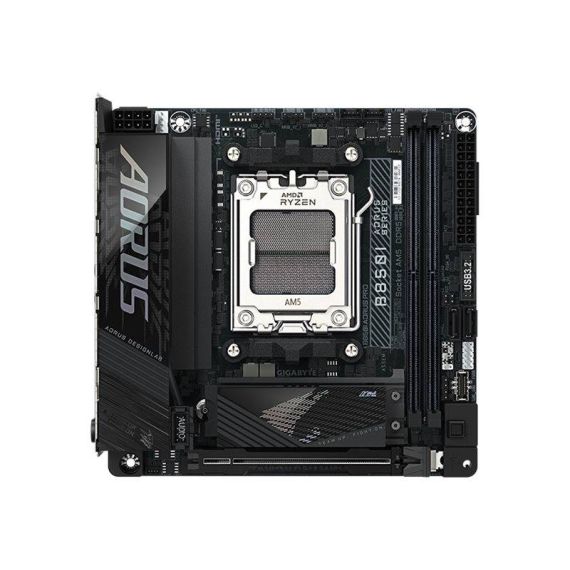

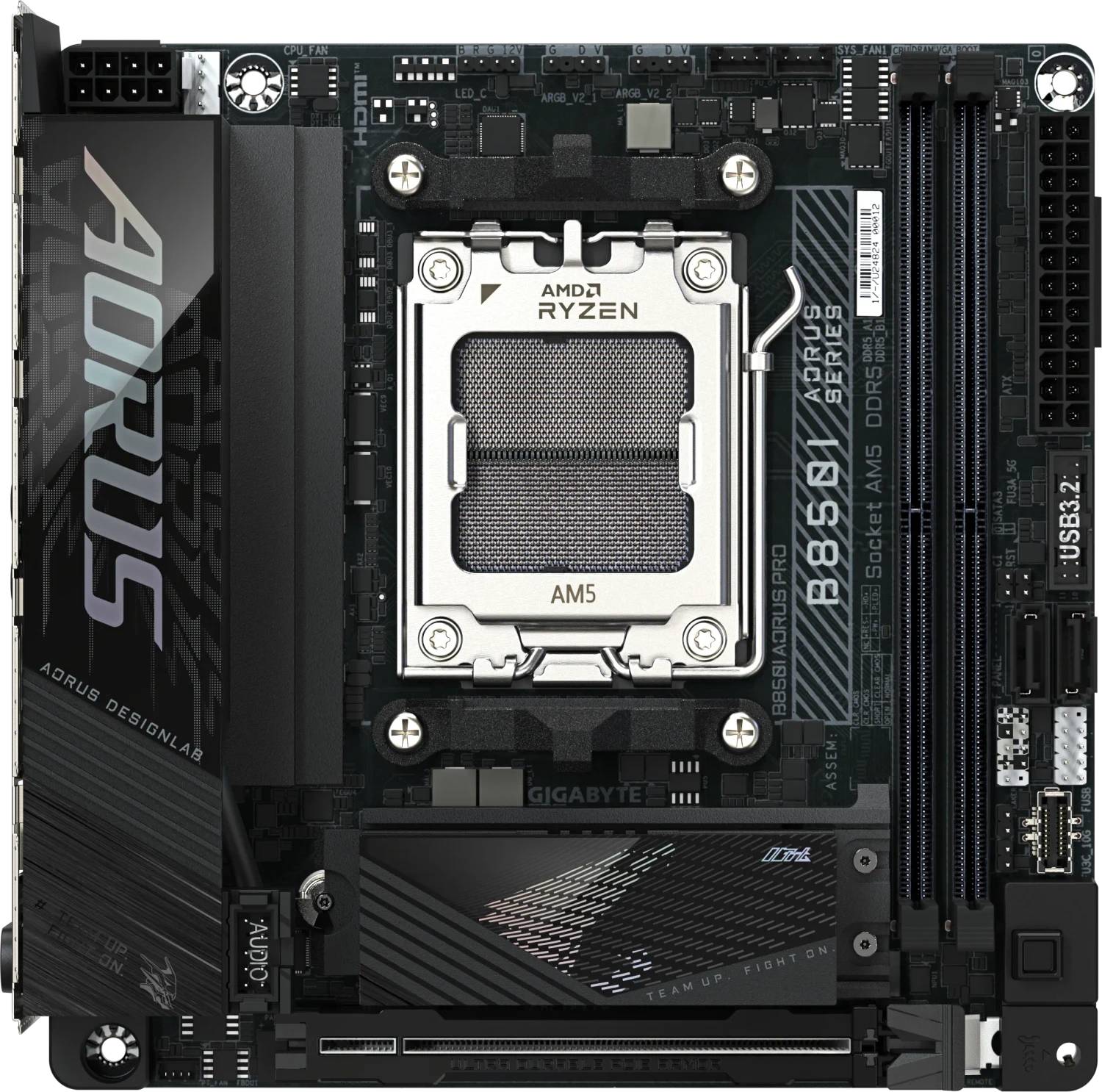

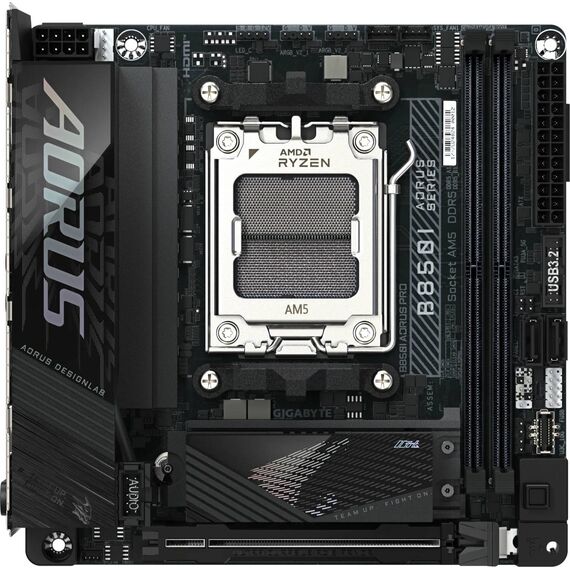

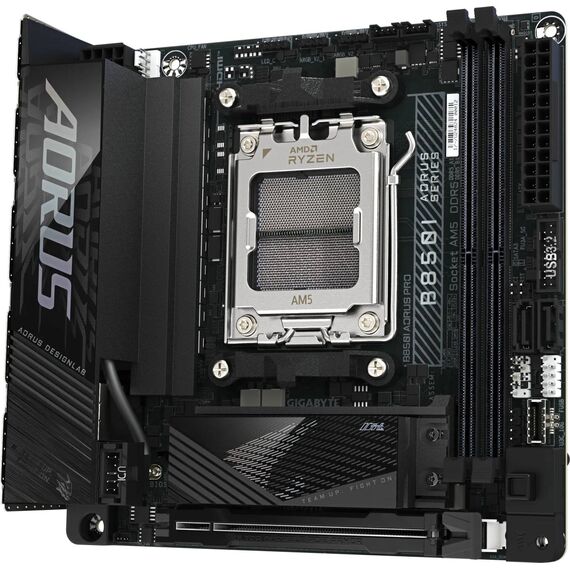

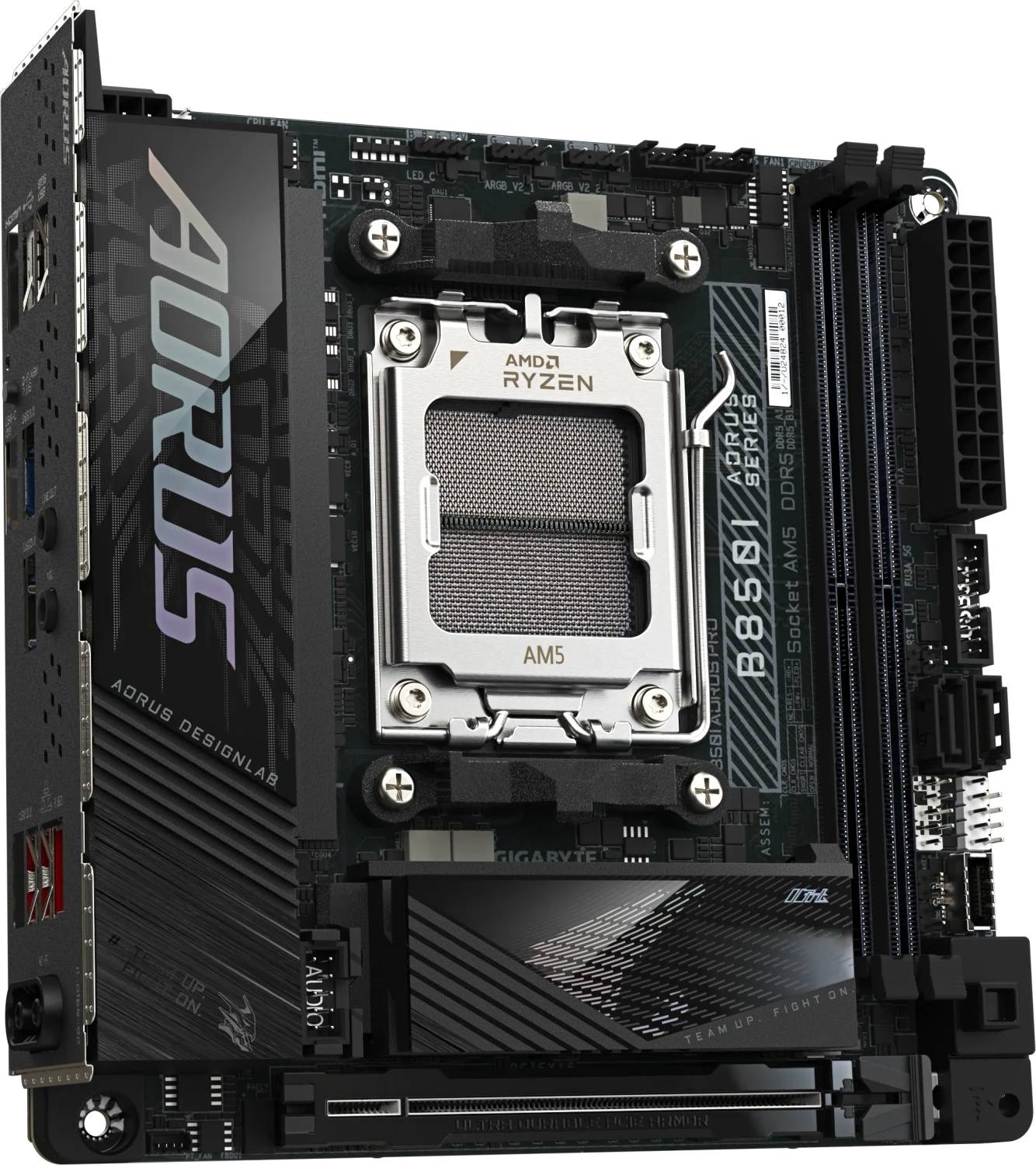

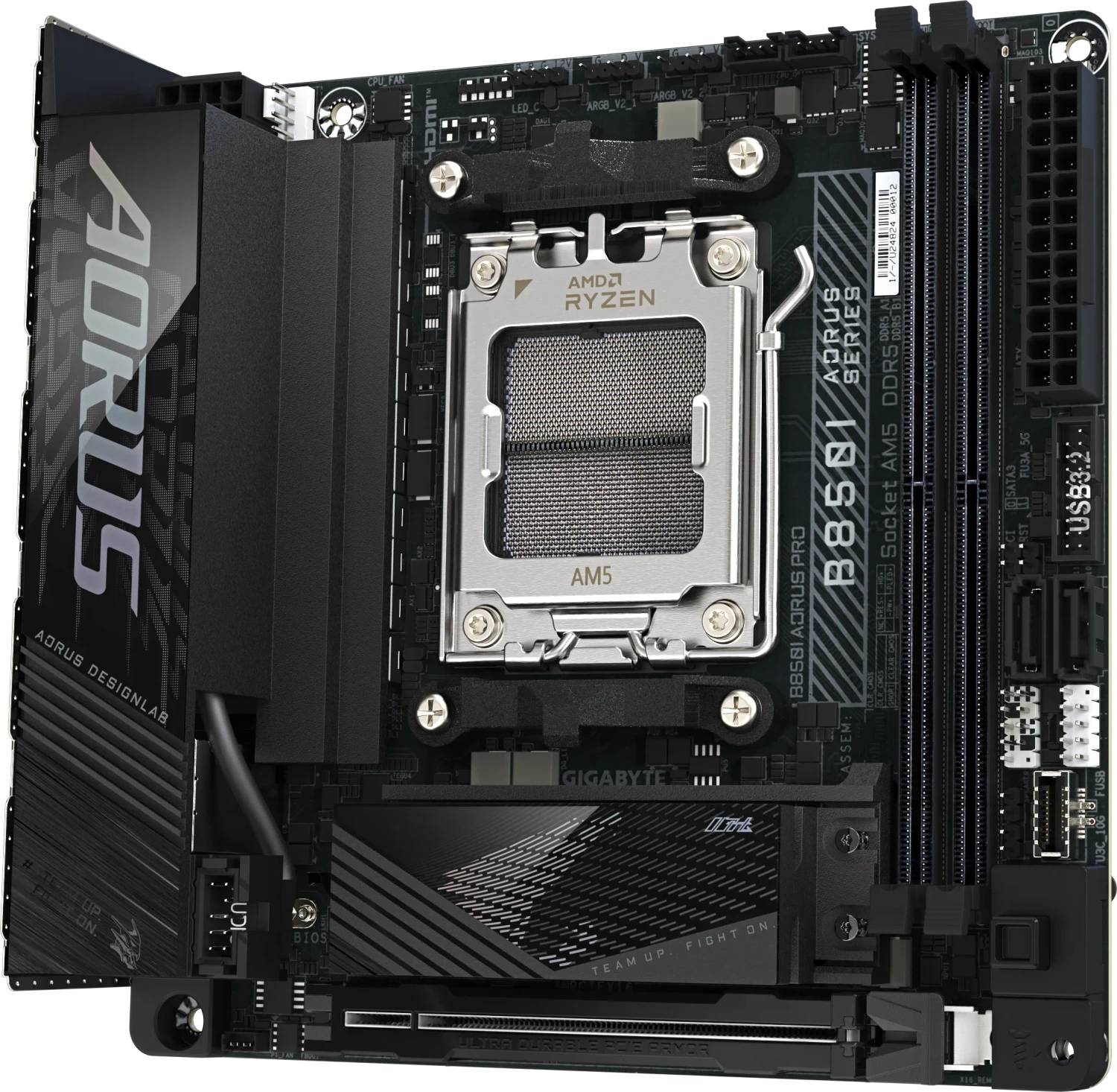

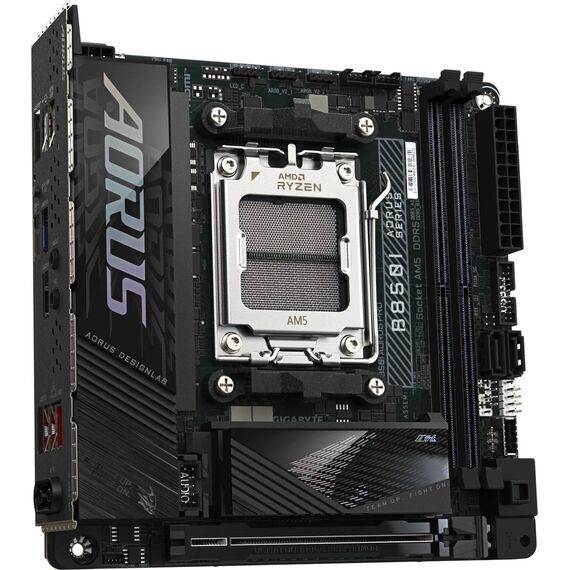

AORUS B850I PRO / Motherboard / mini ITX / Socket AM5 / AMD B850 Chipset / USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / Bluetooth, 2.5 Gigabit LAN, Wi-Fi 7 / onboard graphics (CPU required) / HD Audio | B850I AORUS PRO
Please sign in so that we can notify you about a reply
Product Features
- Efficient power design
The motherboard features an 8+2+1 phase power design, providing stable power to critical components, ensuring reliability during intense tasks and gaming sessions. - Advanced connectivity options
It includes a variety of connectivity options, such as multiple USB ports, HDMI, and 2.5 Gigabit Ethernet, allowing for fast data transfer and versatile device connections. - Enhanced thermal management
With GIGABYTE Smart Fan 6 technology, users can fine-tune cooling settings and monitor fan speeds, ensuring optimal thermal performance during high-load situations. - User-friendly installation features
The motherboard design includes a pre-mounted I/O shield and M.2 EZ Latch, making installation simpler, especially for DIY builders. - Robust memory support
The B850I PRO supports up to 4200 MHz DDR5 SDRAM (overclocked) with up to 2 DIMM slots, accommodating the needs of high-performance memory configurations.
Special Features
- Supports AMD Ryzen 7000/8000/9000 series processors
- High definition audio with Realtek ALC4080 codec
- Dual-channel memory architecture with support for DDR5 SDRAM
- Multiple USB ports including USB-C 3.2 Gen 2
- Integrated 2.5 Gigabit Ethernet for fast networking
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 4200 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio |
| Audio Codec | Realtek ALC4080 |
| LAN | LAN |
| Network Controller | Realtek RTL8922AE |
| Network Interfaces | Bluetooth 5.4, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe x16 2 x M.2 socket (2280 M.2 slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 |

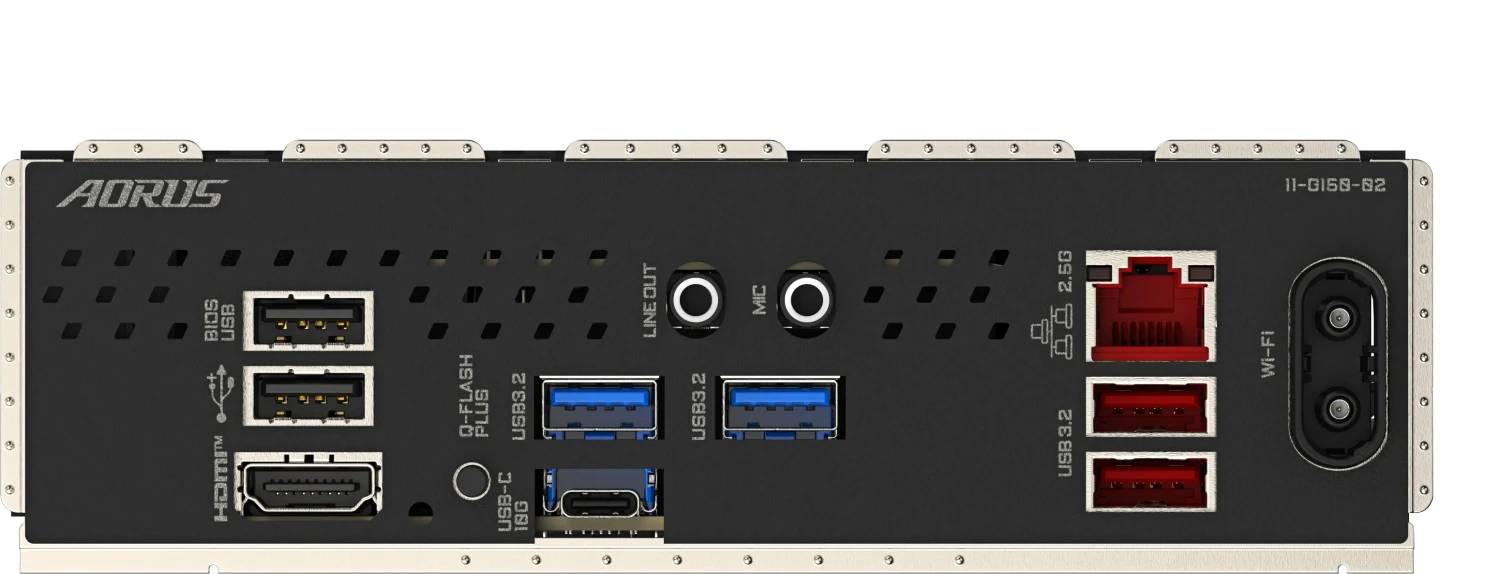

| Interfaces | 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x HDMI 2 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 2 x USB 2.0 - header 1 x speaker - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, temperature detection, fan speed detection, fan fail warning, system voltage, fan control |
| Hardware Features | DIY Friendly Design, 8+2+1 Phase Power Design, 2x Copper PCB, Server-Grade Low-Loss PCB, pre-mounted I/O shield, GIGABYTE Smart Fan 6, WIFI EZ-Plug, M.2 EZ Latch, EZ Debug LED, Q-Flash |
| Miscellaneous | Miscellaneous |

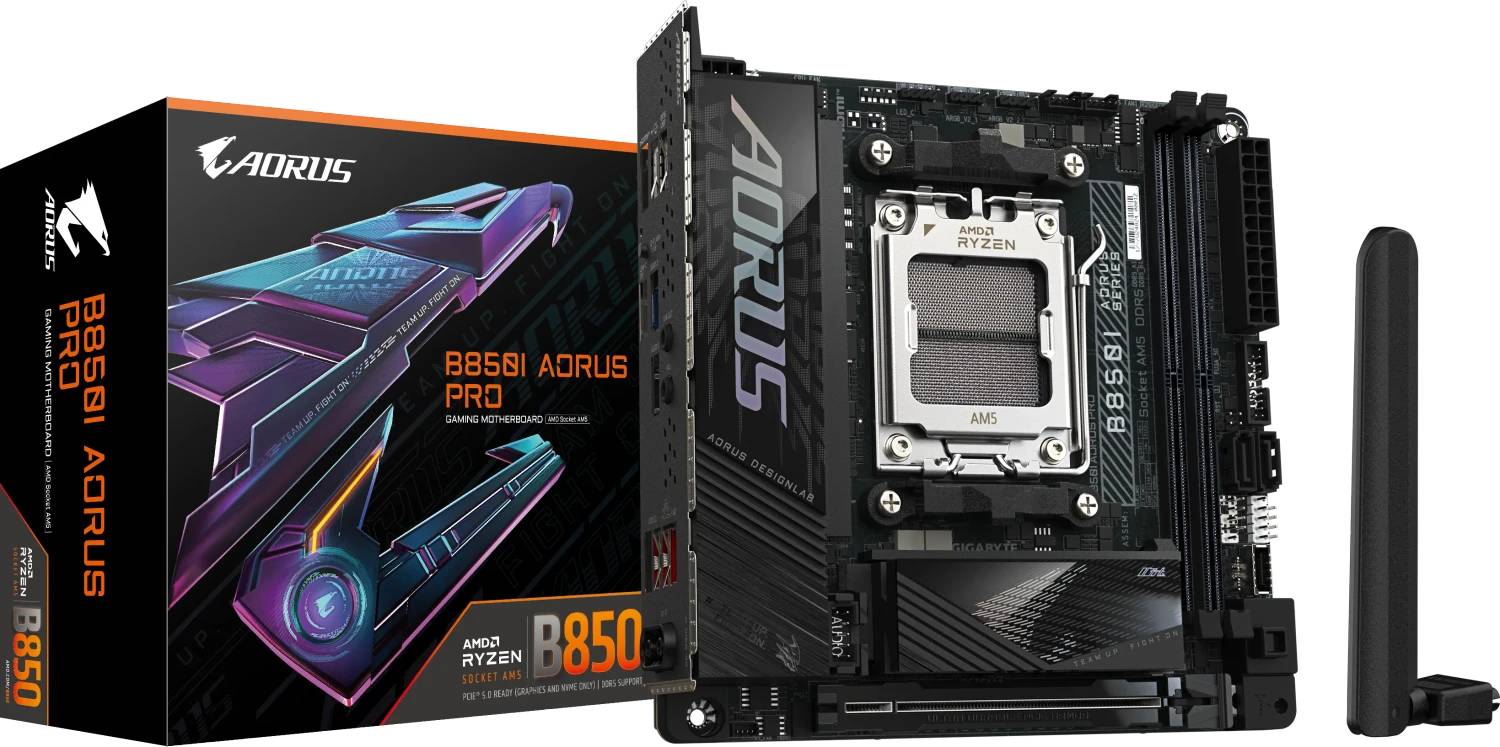

| Included Accessories | Wi-Fi aerial, 2 x fan extension power cables, M.2 screw package, 2 x thermal pads for M.2 SSD, computer case screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
| Width | 17 cm |
| Depth | 17 cm |
Features - GigaByte - B850I AORUS PRO
More Details
Product Code
03:260846
EAN Code
4719331867263
Manufacturer
GigaByte
