Gigabyte E162-220 (rev / none | 6NE162220MR-00
Please sign in so that we can notify you about a reply
Product Features

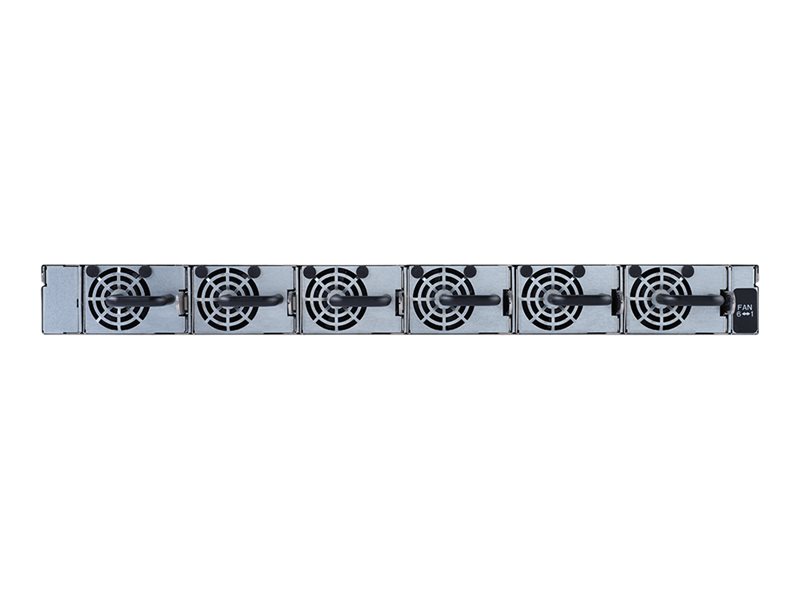

- Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers. - Smart Crises Management and Protection (SCMP)
SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss. - Dual ROM architecture
If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.
Special Fetures
- Supports one double slot GPU card
- Intel C621A Express chipset
- Dual ROM architecture supported
- Dedicated management port
- Two 2.5" SATA/SAS/NVMe hot-swappable HDD/SSD bays
- Full-height Full-length PCIe Gen4 expansion slot
- Two low-profile PCIe Gen4 expansion slots
- OCP 3.0 Gen4 x16 mezzanine slot
- Redundant 800W 80 PLUS Platinum hot-swap power supply
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 2 |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket P+ |
| Chipset Type | Intel C621A |
| Motherboard Name | GIGABYTE ME62-GE0 |
| RAM | |
| Installed Size | 0 GB |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 16 (Total) / 16 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM), 8-channel memory architecture, 3DS Load-Reduced DIMM (LRDIMM), 3DS registered |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | RAID |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Interfaces | DisplayPort |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x hot-swap 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height ¦ 2 (total) / 2 (free) x PCIe 4.0 x16 - low-profile ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0 ¦ 3 (total) / 3 (free) x M.2 Card - 2280/22110 (Key M) |

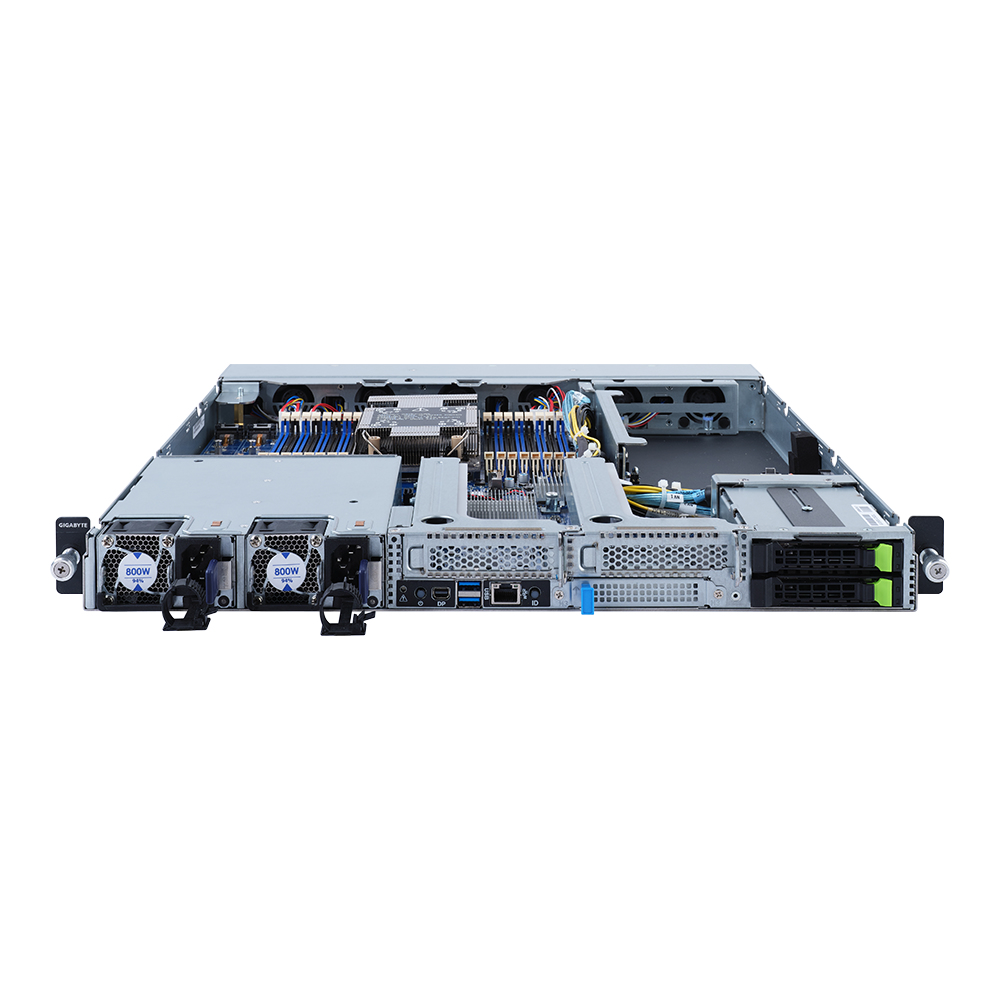

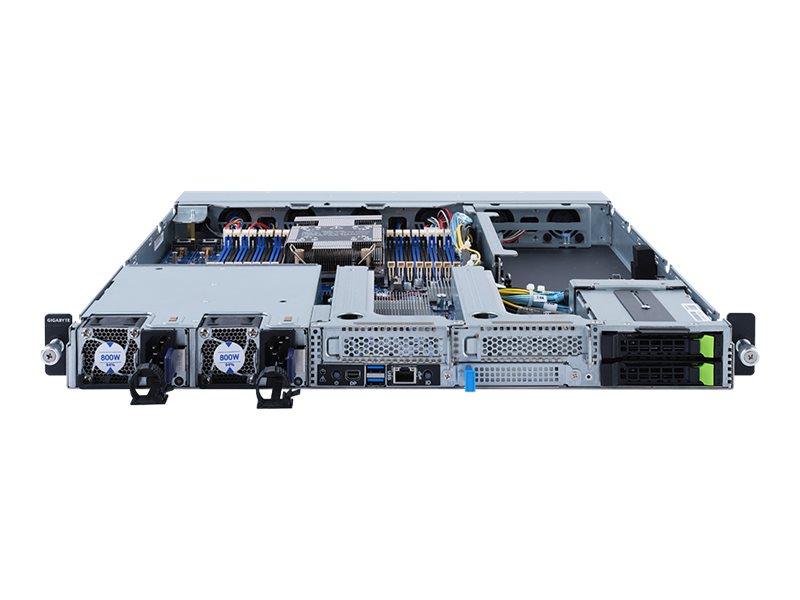

| Interfaces | 2 x USB 3.0 (2 in front) ¦ 1 x Mini DisplayPort (1 in front) ¦ 1 x management (NIC) - RJ-45 (1 in front) |
| Miscellaneous | |
| Included Accessories | CPU Heatsink |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240/ DC 240 V (50 - 60 Hz) |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Operating System / Software | |
| OS Provided | No operating system |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Depth | 50 cm |
| Height | 4.35 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 78.6 cm |
| Shipping Depth | 58.8 cm |
| Shipping Height | 25 cm |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 80% (non-condensing) |
Features - GigaByte - 6NE162220MR-00
More Details
Product Code
CC58094
EAN Code
4719331600839
Manufacturer
GigaByte
