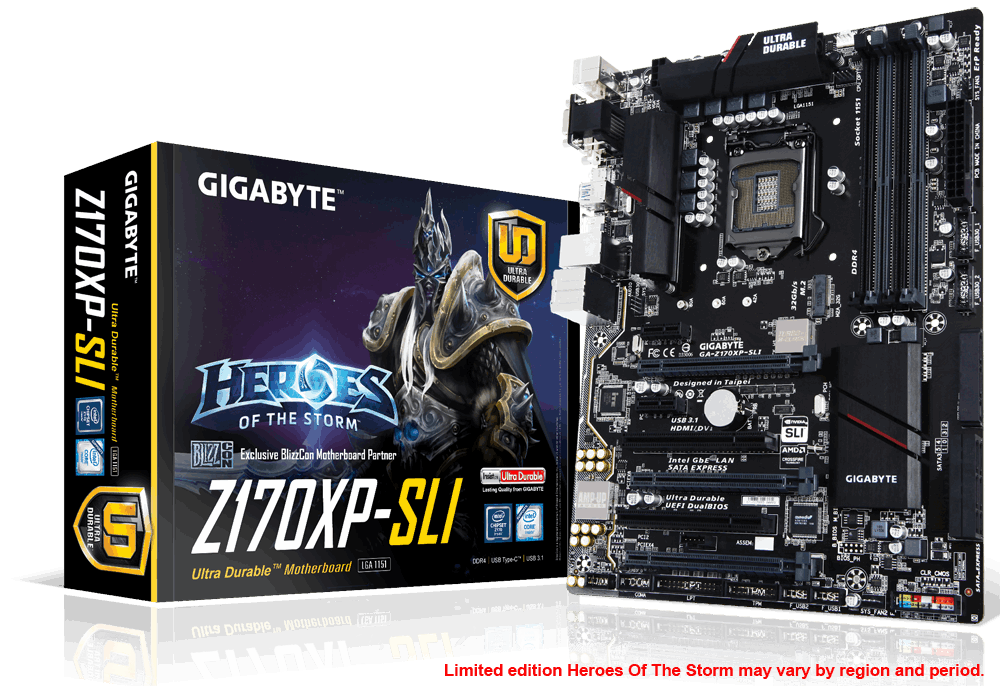

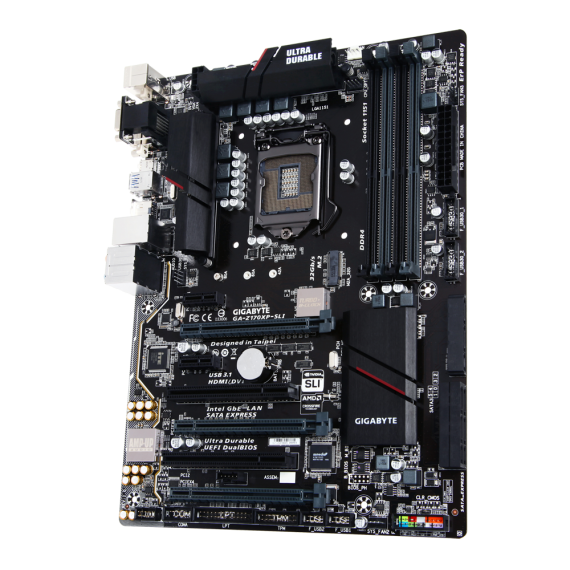

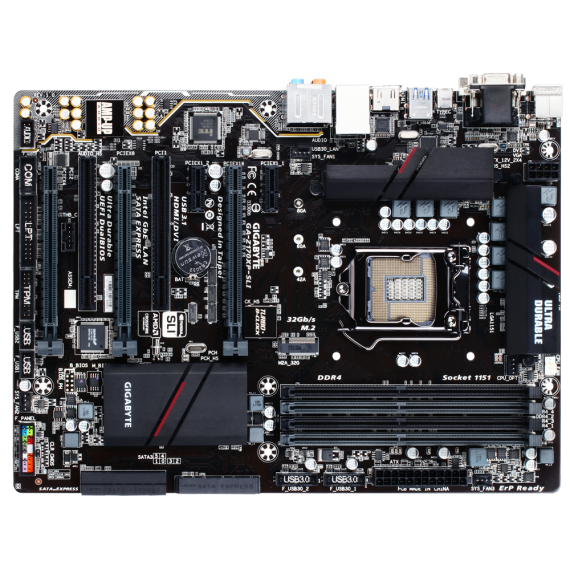

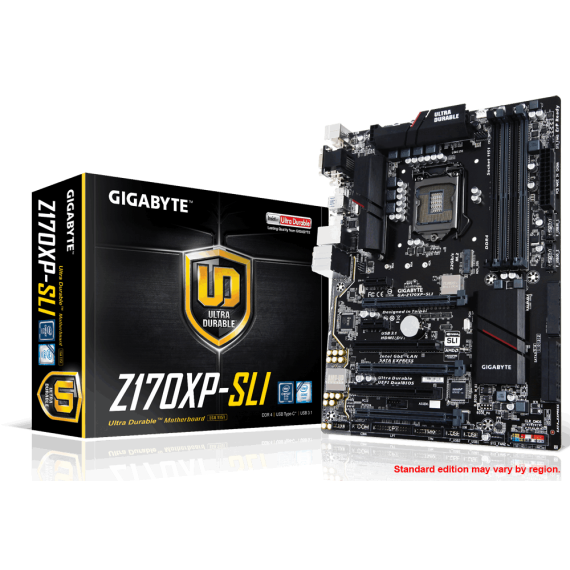

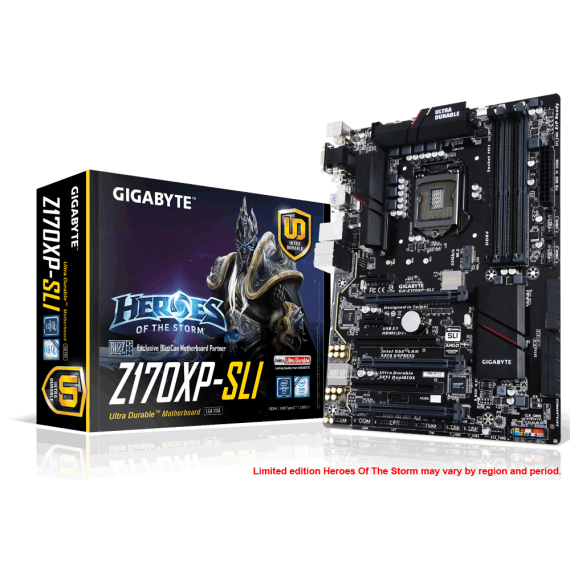

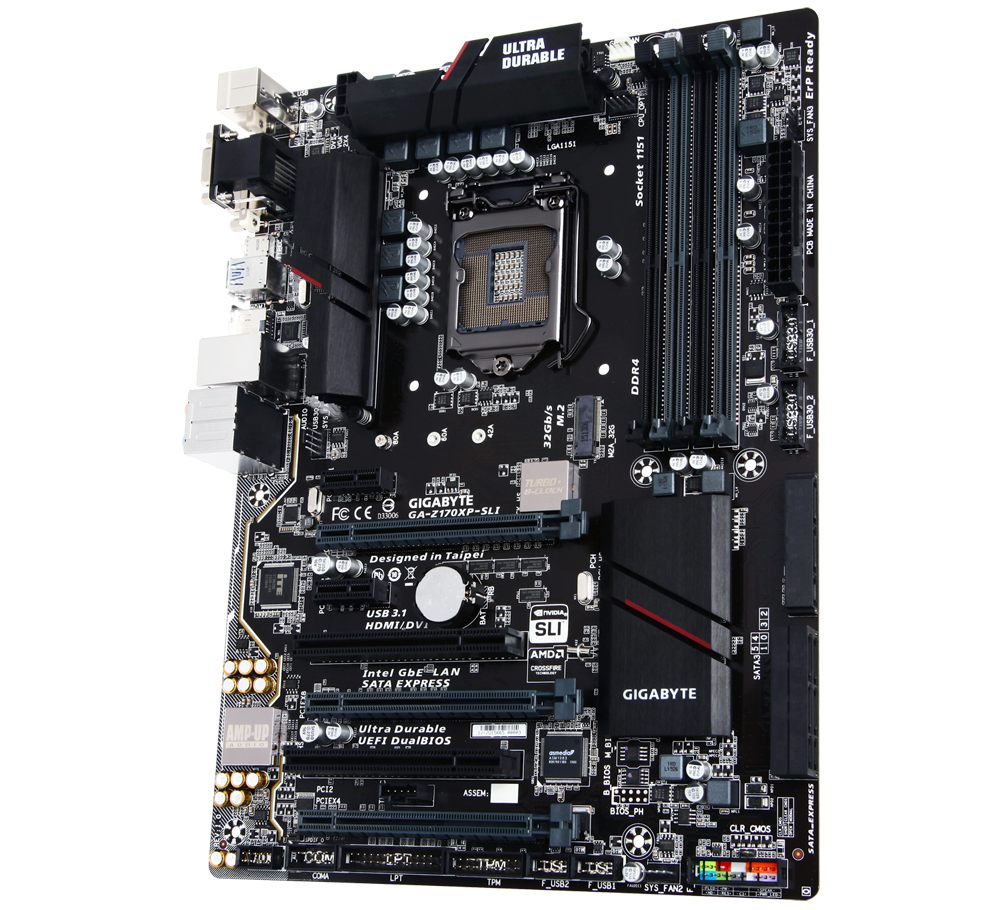

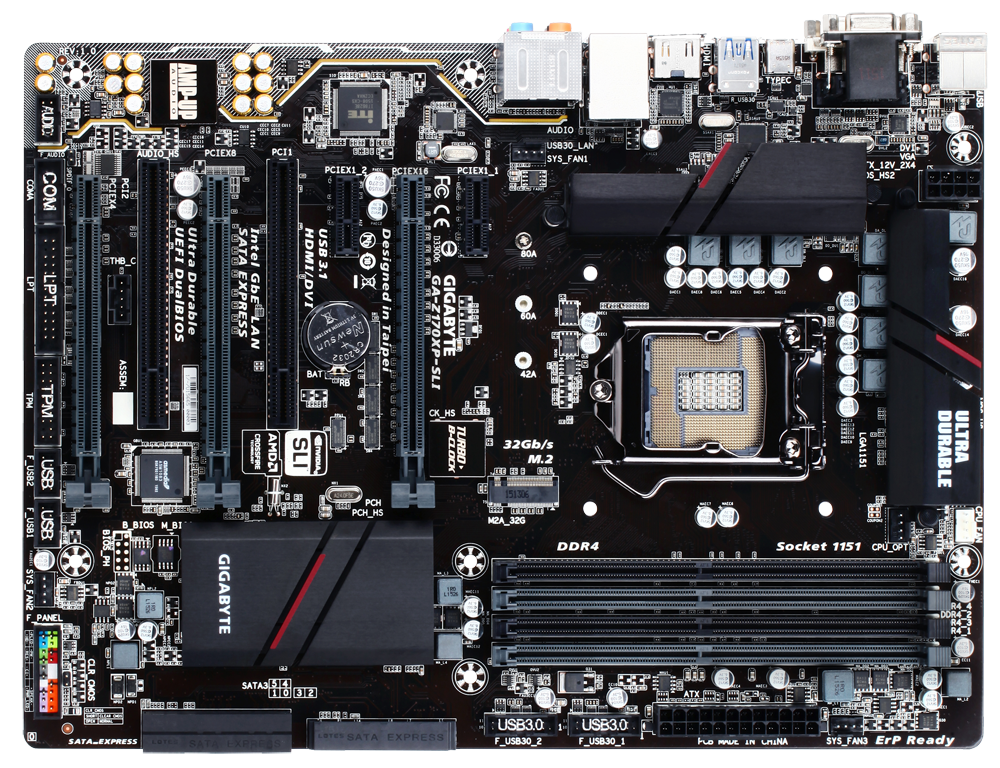

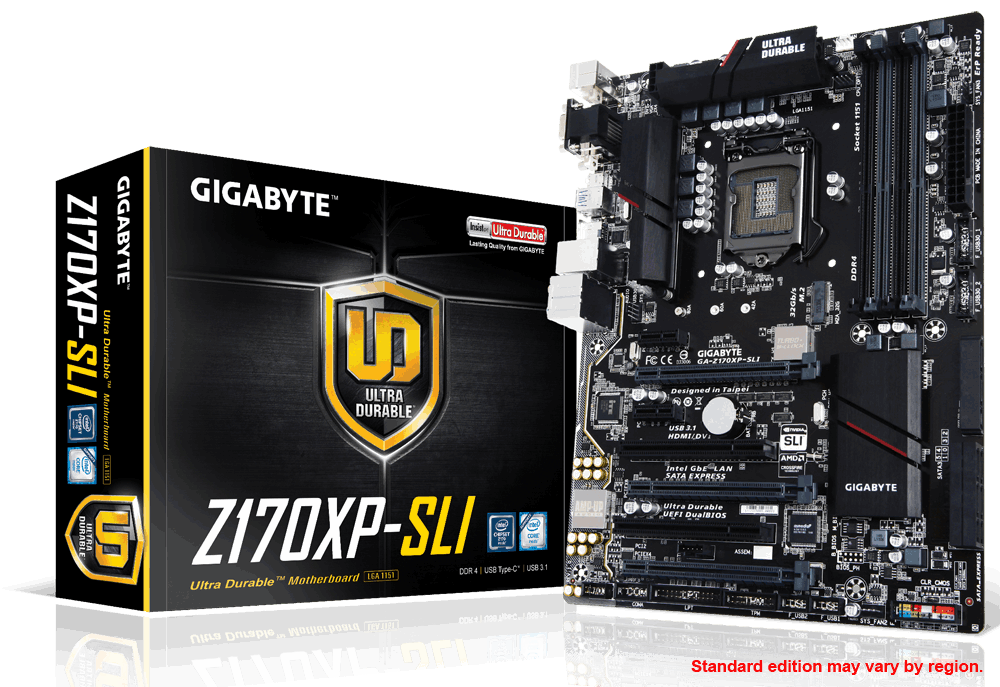

GigaByte GA-Z170XP-SLI S1151 Z170 ATX (GA-Z170XP-SLI)

Brand: GigaByte
GA-Z170XP-SLI
€170.46
€185.28 (€202.85 inc. VAT)
Out of stock
Add to wish list Ask a question
Find similar
Delivery
Payment options
Product CodeE081870 EAN Code4719331828325 ManufacturerGigaByte
  • Supports 6th Generation Intel® Core™ Processor
  • Dual Channel DDR4, 4 DIMMs
  • Fast USB 3.1 with USB Type-C™ - The World’s Next Universal Connector
  • 3-Way Graphics with Premium PCIe Lane
  • PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
  • 3 SATA Express Connectors for up to 16Gb/s Data Transfer
  • 115dB SNR HD Audio with Built-in Rear Audio Amplifier
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • GIGABYTE UEFI DualBIOS™ Technology

      • GIGABYTE Z170XP-SLI Unboxing Video

      Specifications

      CPU
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
      Chipset
      1. Intel® Z170 Express Chipset
      Memory
      1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
      4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
      Onboard GraphicsIntegrated Graphics Processor- Intel® HD Graphics support:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
        * Support for HDMI 1.4 version.
      4. Support for up to 3 displays at the same time
      5. Maximum shared memory of 512 MB
      Audio
      1. Realtek® ALC1150 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
      LAN
      1. Intel® GbE LAN chip (10/100/1000 Mbit)
      Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
        * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
      3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. When the PCIEX1_2 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
      4. 2 x PCI Express x1 slots
        (All of the PCI Express slots conform to PCI Express 3.0 standard.)
      5. 2 x PCI slots
      Multi-Graphics Technology
      1. Support for 3-Way/2-Way AMD CrossFire™and 2-Way NVIDIA® SLI™ Technology
      Storage InterfaceChipset:
      1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
      2. 3 x SATA Express connectors
      3. 6 x SATA 6Gb/s connectors
      4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
        * Refer to "1-8 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
      USBChipset:
      1. 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
      2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
      Chipset+ASMedia® ASM1142 chip:
      1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
      2. 1 x USB 3.1 Type-A port (red) on the back panel
      Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x M.2 Socket 3 connector
      4. 3 x SATA Express connectors
      5. 6 x SATA 6Gb/s connectors
      6. 1 x CPU fan header
      7. 1 x water cooling fan header (CPU_OPT)
      8. 3 x system fan headers
      9. 1 x front panel header
      10. 1 x front panel audio header
      11. 1 x S/PDIF Out header
      12. 2 x USB 3.0/2.0 headers
      13. 2 x USB 2.0/1.1 headers
      14. 1 x Trusted Platform Module (TPM) header
      15. 1 x Thunderbolt™ add-in card connector
      16. 1 x serial port header
      17. 1 x parallel port header
      18. 1 x Clear CMOS jumper

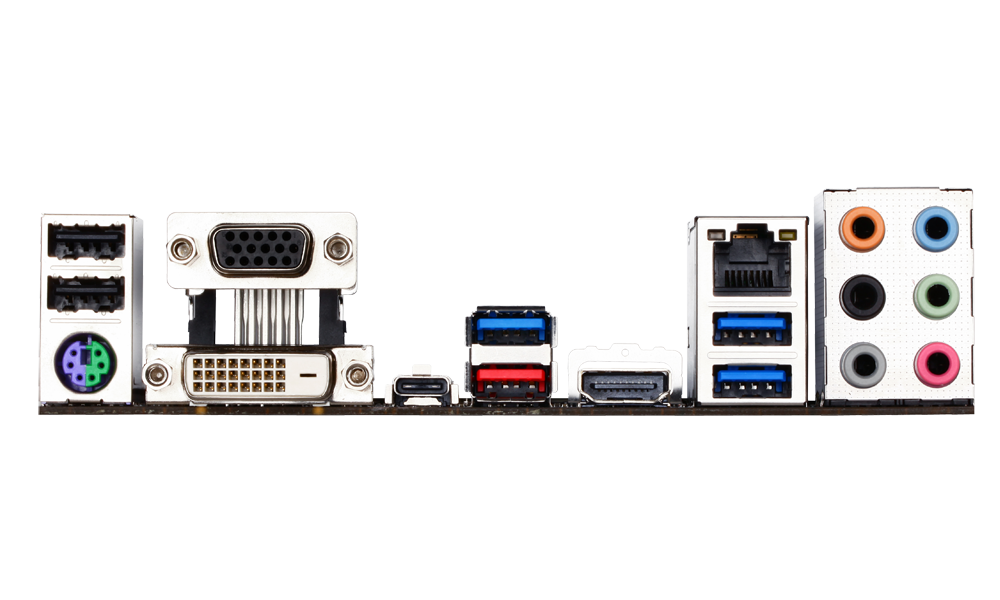

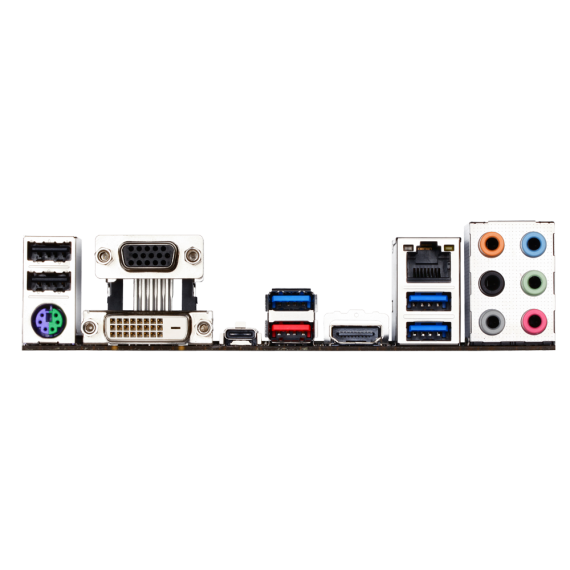

      Back Panel Connectors
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 1 x USB Type-C™ port, with USB 3.1 support
      6. 1 x USB 3.1 Type-A port (red)
      7. 3 x USB 3.0/2.0 ports
      8. 2 x USB 2.0/1.1 ports
      9. 1 x RJ-45 port
      10. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
      I/O Controller
      1. iTE® I/O Controller Chip
      H/W Monitoring
      1. System voltage detection
      2. CPU/System/Chipset temperature detection
      3. CPU/CPU OPT/System fan speed detection
      4. CPU/System/Chipset overheating warning
      5. CPU/CPU OPT/System fan fail warning
      6. CPU/CPU OPT/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
      BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
      Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        3D OSD
        @BIOS
        Ambient LED
        AutoGreen
        Cloud Station
        EasyTune
        Easy RAID
        Fast Boot
        Smart TimeLock
        Smart Keyboard
        Smart Backup
        System Information Viewer
        USB Blocker
      2. Support for Q-Flash
      3. Support for Smart Switch
      4. Support for Xpress Install
      Bundle Software
      1. Norton® Internet Security (OEM version)
      2. Intel® Smart Response Technology
      3. cFosSpeed
      Operating System
      1. Support for Windows 10/8.1/7*
        * Please download “Windows® USB Installation Tool” to install Windows® 7.
      Form Factor
      1. ATX Form Factor; 30.5cm x 22.5cm
      Box Contents
      1. GA-Z170XP-SLI motherboard
      2. Four SATA cables
      3. Motherboard driver disk
      4. I/O Shield
      5. User's Manual
      6. One 2-Way SLI bridge connector
      7. Quick Installation Guide
      8. One G Connector
      Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
