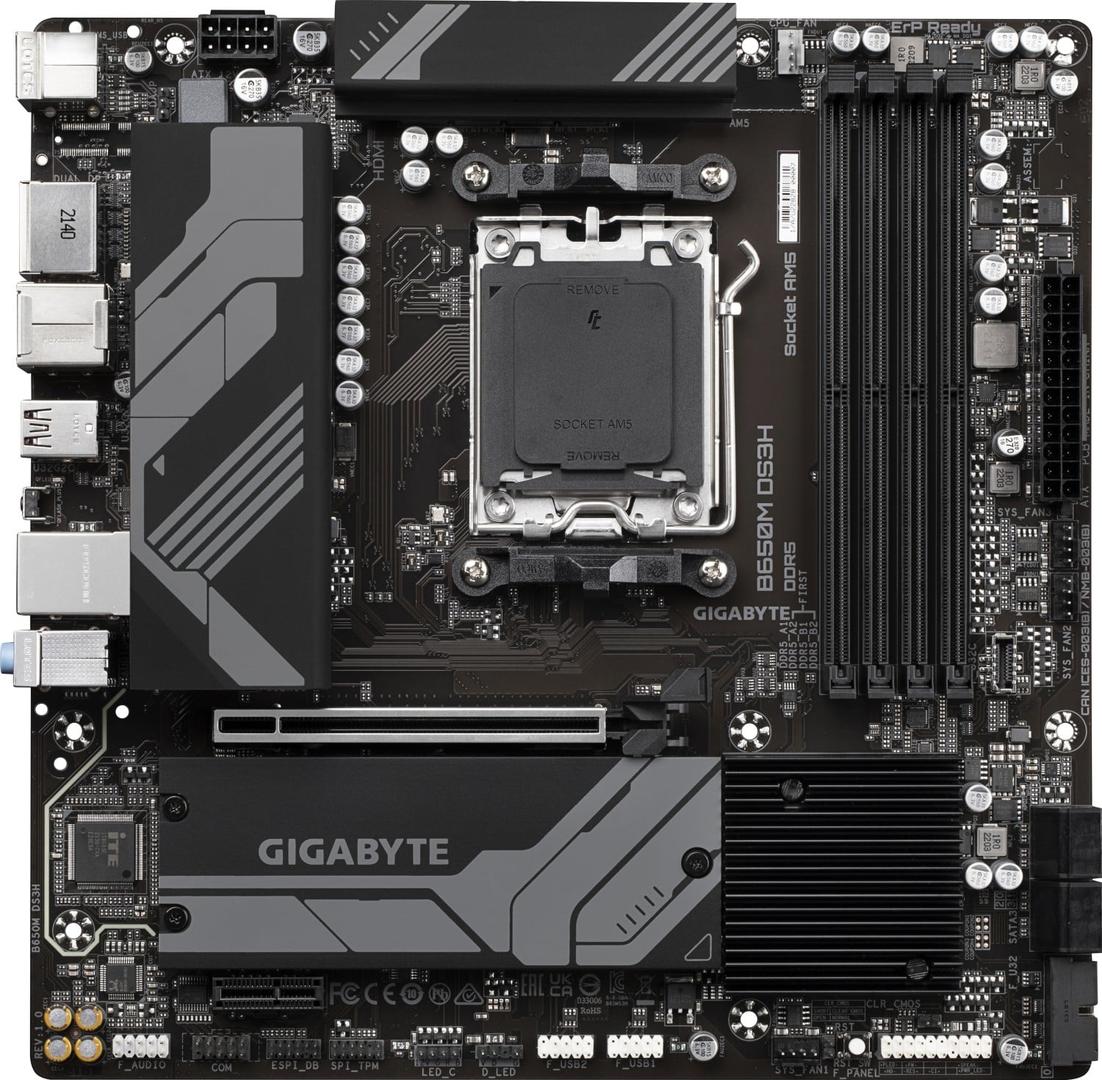

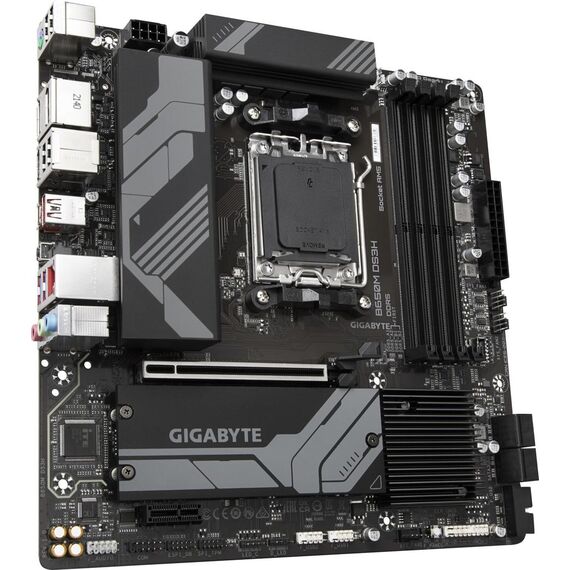

Gigabyte B650M DS3H / 1.0 / motherboard / micro ATX / Socket AM5 / AMD B650 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / High Definition Audio (7.1-channel) | B650M DS3H
Please sign in so that we can notify you about a reply
Product Features
- Unparalleled performance
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and cutting-edge technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming. - Thermal design
GIGABYTE motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure great CPU, chipset, SSD stability and low temperatures under full load application and gaming performance. - Connectivity
GIGABYTE motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage. - Personalization
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. - Ultra Durable
GIGABYTE Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use premium components and reinforce every slots to make each of them solid and durable.
Special Features
- AMD socket AM5
- Unparalleled performance
- Dual channel DDR5
- SuperSpeed storage
- Advanced thermal design and M.2 thermal guard
- PCIe x16 EZ-Latch with quick release and screwless design
- Fast networks
- Extended connectivity
- Smart Fan 6
- Q-Flash Plus
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | High Definition Audio (7.1-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2280/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |

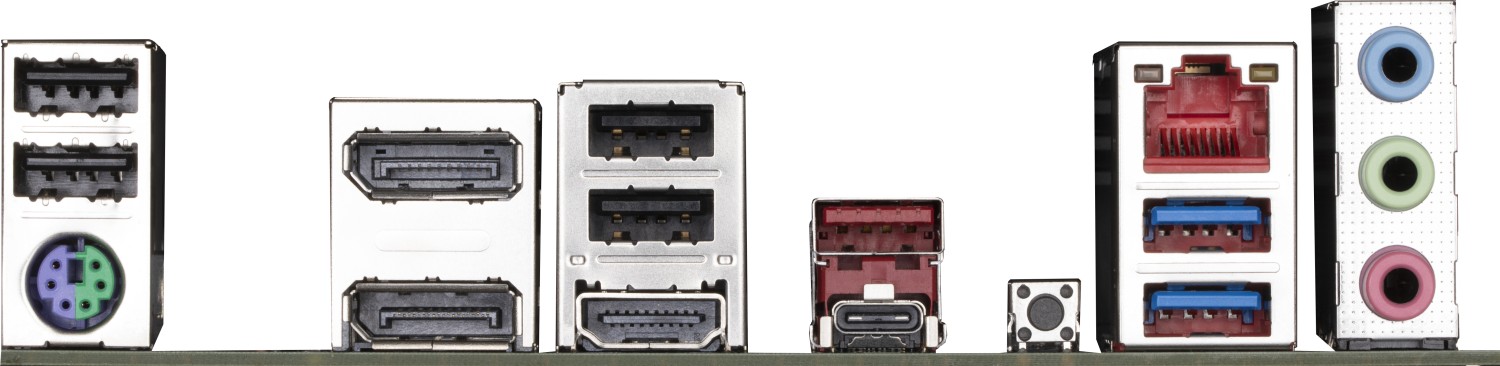

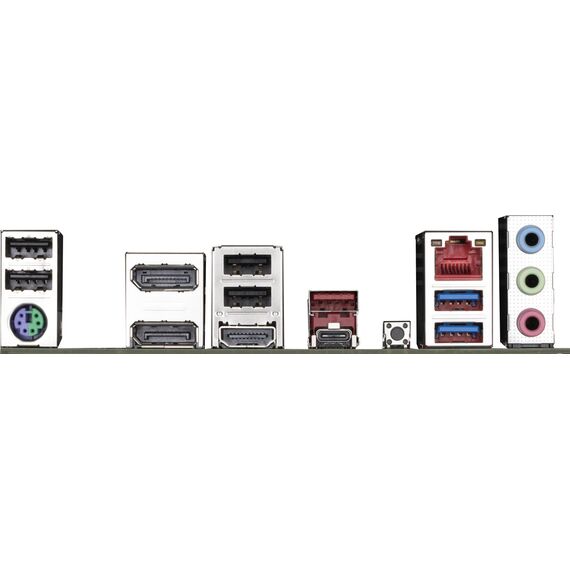

| Interfaces | 1 x HDMI ¦ 2 x DisplayPort ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 1 |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Fan fail warning, fan control |
| Hardware Features | Q-Flash, Ultra Durable, 2x Copper PCB, 6 Layer PCB, Q-Flash Plus, M.2 Thermal Guard, Solid Pin Power Connectors, RGB FUSION 2.0, GIGABYTE Smart Fan 6, 6+2+1 Phase Power Design, 60A Smart Power Stage |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security |
| Compliant Standards | WEEE, DisplayPort 1.4, HDCP 2.3 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - GigaByte - B650M DS3H
More Details
Product Code
07:129876
EAN Code
4719331849825
