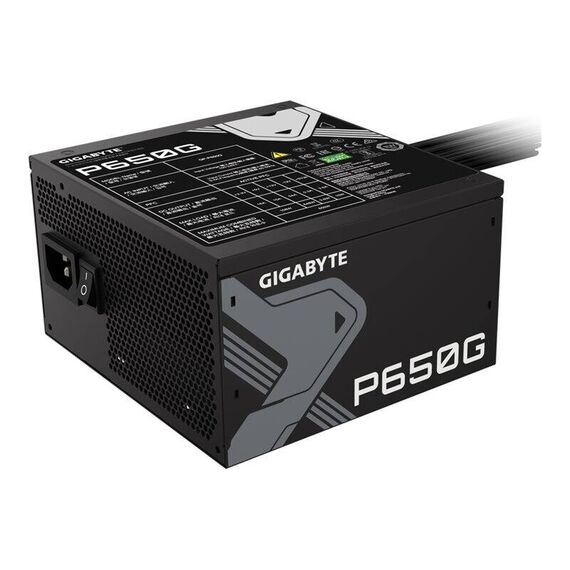

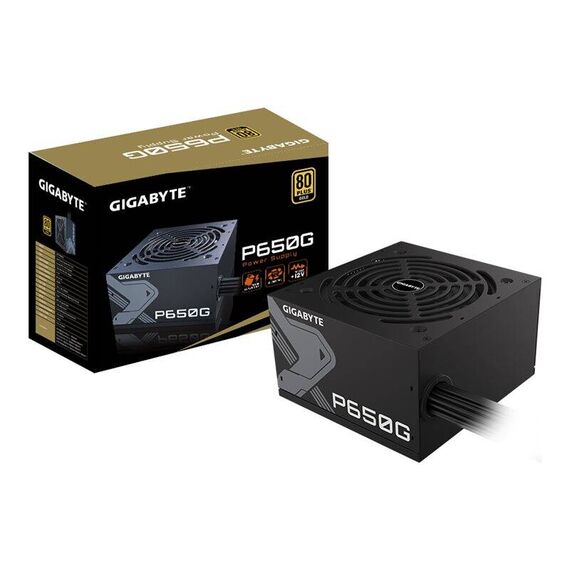

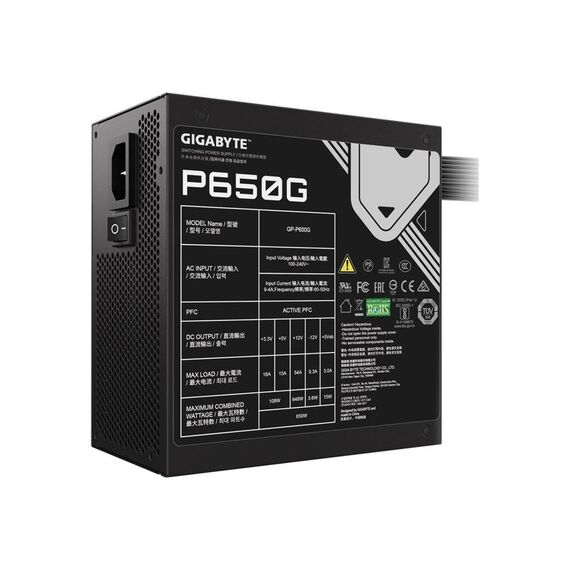

Gigabyte GP-P650G - Power supply (internal) - ATX12V - 80 PLUS Gold - AC 100-240 V - 650 Watt - active PFC | GP-P650G
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Provided | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V 50 - 60 Hz |
| Power Capacity | 650 Watt |
| Output Current | +3.3V - 18 A ¦ +5V - 15 A ¦ +12V - 54 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Power Factor (PF) | 0.9 |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| MTBF | 100,000 hours |

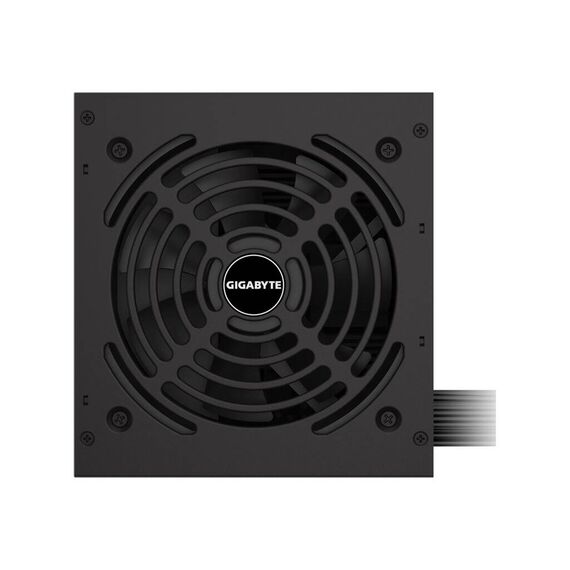

| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail, hydraulic bearing cooling fan, undervoltage correction |
| Compliant Standards | CCC, FCC, RoHS, IEC 60950-1, PSE Mark, TUV SUD, EAC, RCM, UKCA, ICC |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - GigaByte - GP-P650G
More Details
Product Code
04:462117
EAN Code
4719331553753
Manufacturer
GigaByte
