Gigabyte B650 AORUS PRO AX / 1.0 / motherboard / ATX / Socket AM5 / AMD B650 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi / onboard graphics (CPU required) / High Defini | B650 AORUS PRO AX
B650 AORUS PRO AX
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6666 MHz (O.C.), 6600 MHz (O.C.), 4400 MHz, 5200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | High Definition Audio (7.1-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | AMD RZ616 (MT7922A22M) |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |

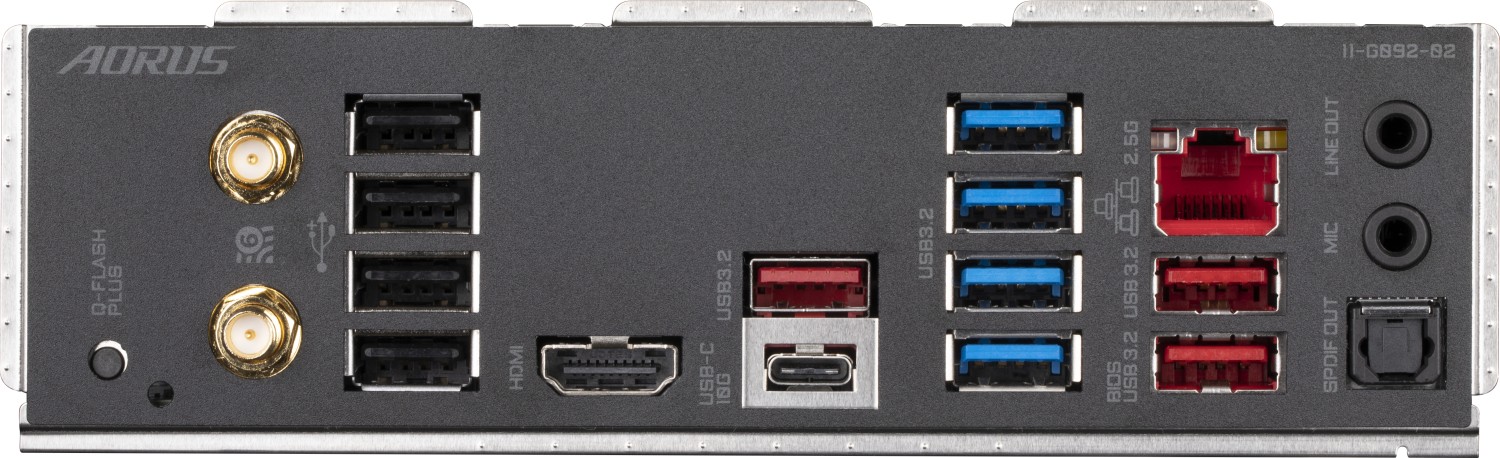

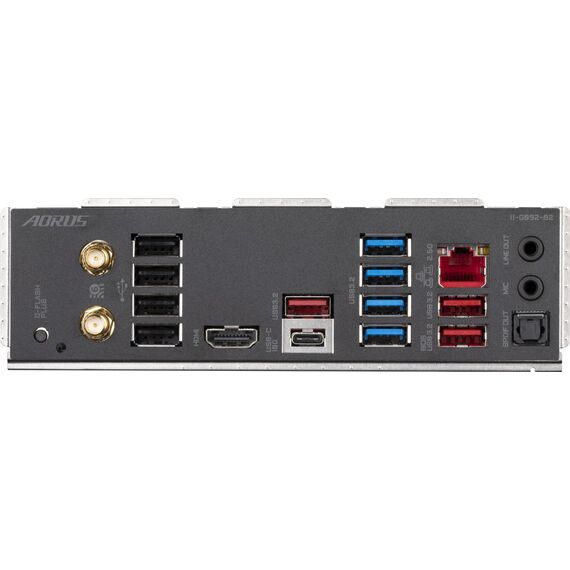

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | CPU core temperature, system voltage, water cooling flow rate, fan fail warning |
| Hardware Features | Q-Flash, Ultra Durable, 2x Copper PCB, 8 Layer PCB, Q-Flash Plus, M.2 Thermal Guard, Solid Pin Power Connectors, RGB FUSION 2.0, DIY Friendly Design, 90A Smart Power Stage, GIGABYTE Smart Fan 6 |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield |
| Software Included | Norton Internet Security |
| Compliant Standards | DisplayPort 1.4, HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
