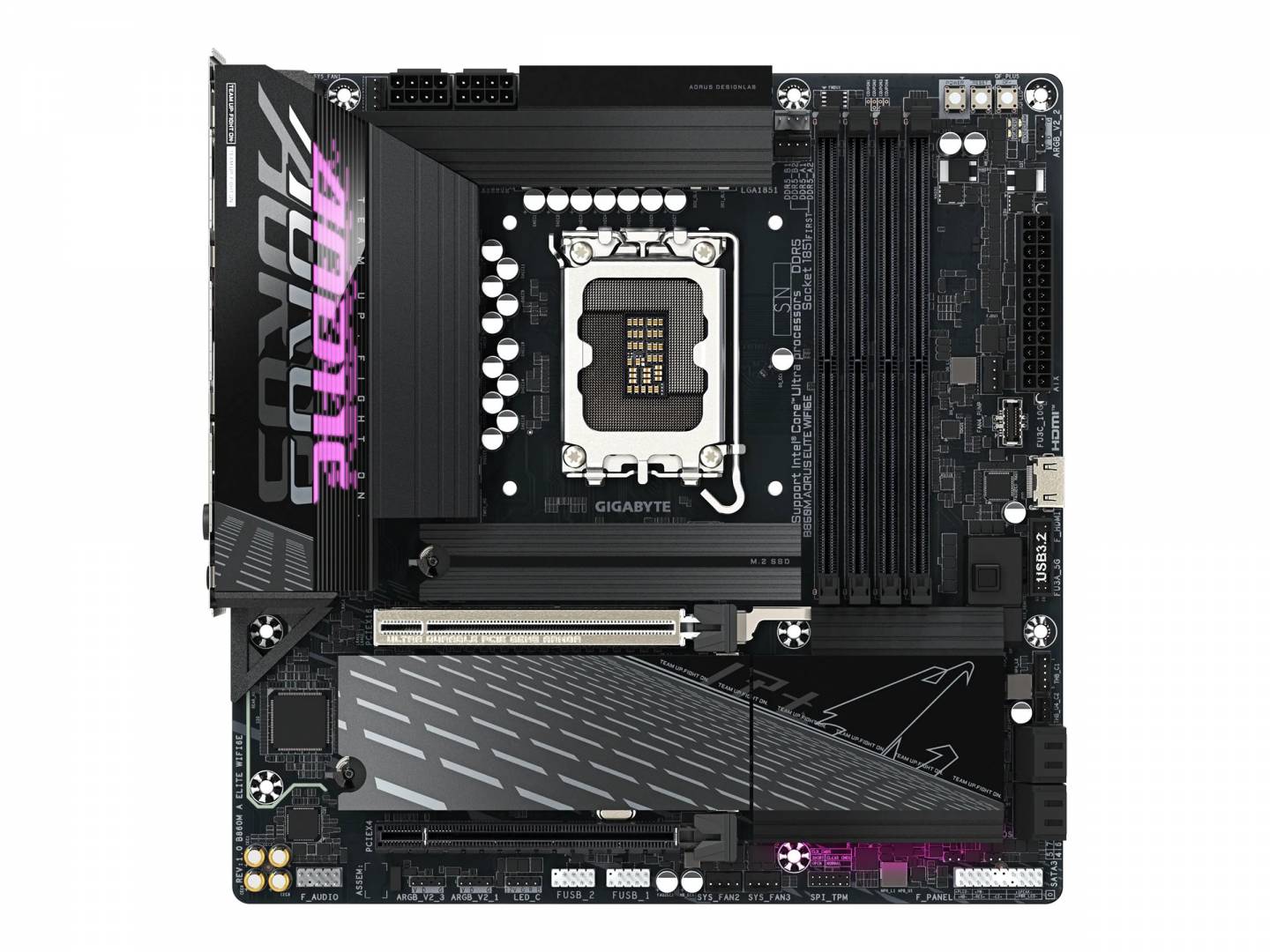

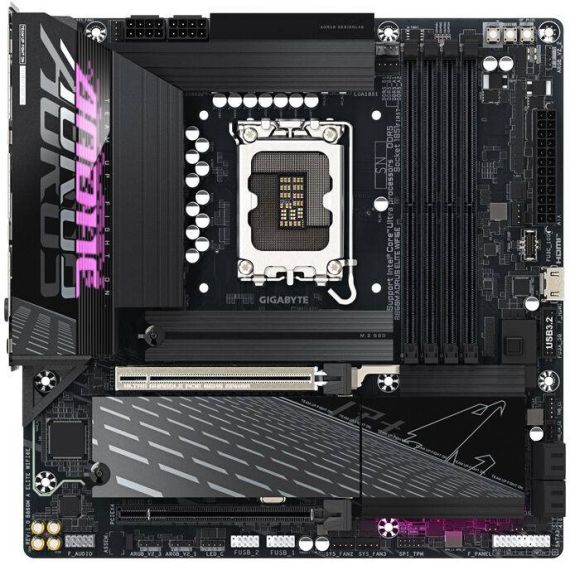

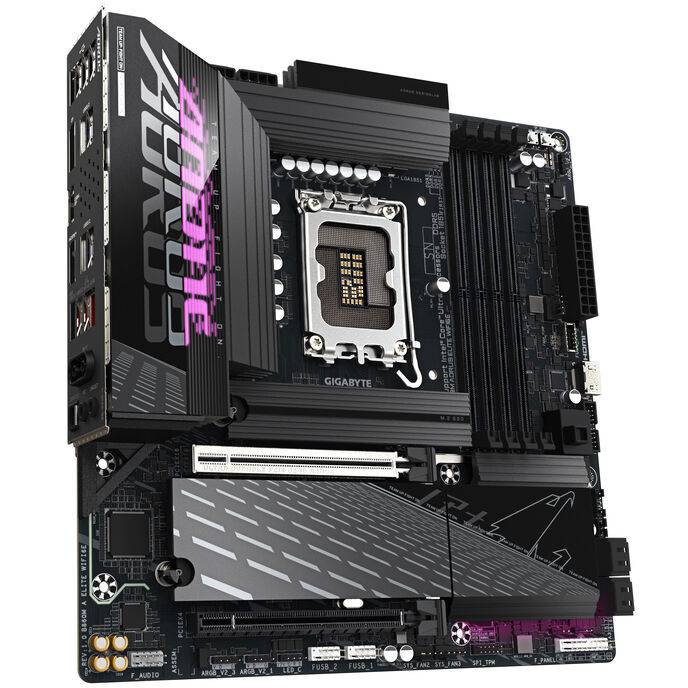

AORUS B860M ELITE WIFI6E / Motherboard / micro ATX / LGA1851 Socket / AMD B850 Chipset / USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4 / Bluetooth, Wi-Fi 6E, 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-cha | B860M A ELITE WIFI6E
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B850 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4600 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 2800 MHz |
| Supported RAM Integrity Check | ECC (operate in non-ECC mode), non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x1 1 x M.2 socket (2280 M.2 slot) 1 x M.2 socket (2280/2580 M.2 Key M slot) 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 |

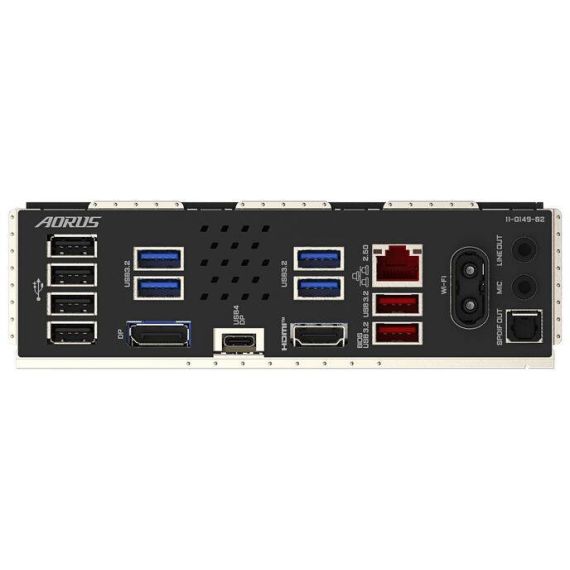

| Interfaces | 1 x USB4/DisplayPort 4 x USB 3.2 Gen 1 4 x USB 2.0 1 x PS/2 keyboard / mouse 1 x DisplayPort 1 x HDMI 2 x aerial 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x LAN (2.5Gigabit Ethernet) 1 x SPDIF 1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 2 x Thunderbolt - header 1 x HDMI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, temperature detection, fan speed detection, fan fail warning, system voltage, fan control |
| Hardware Features | 12+1+2 Phase Power Design, AI Perfdrive, WIFI EZ-Plug, PCIe EZ Latch, DIY Friendly Design, power button, 2x Copper PCB, Ultra Durable |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber pad, M.2 screw package, Wi-Fi aerial |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - GigaByte - B860M A ELITE WIFI6E
CPU Socket
- Socket 1851
More Details
Product Code
03:260868
EAN Code
4719331866877
Manufacturer
GigaByte
