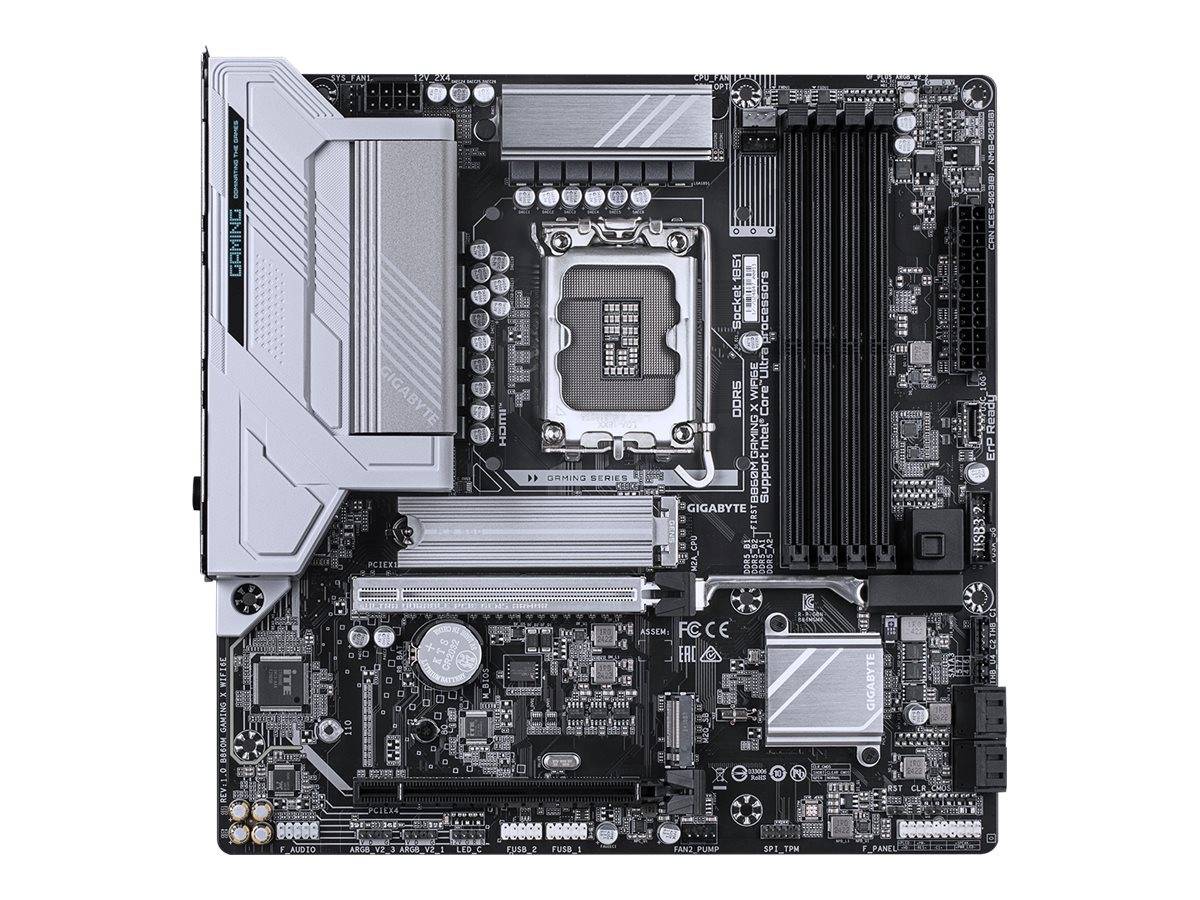

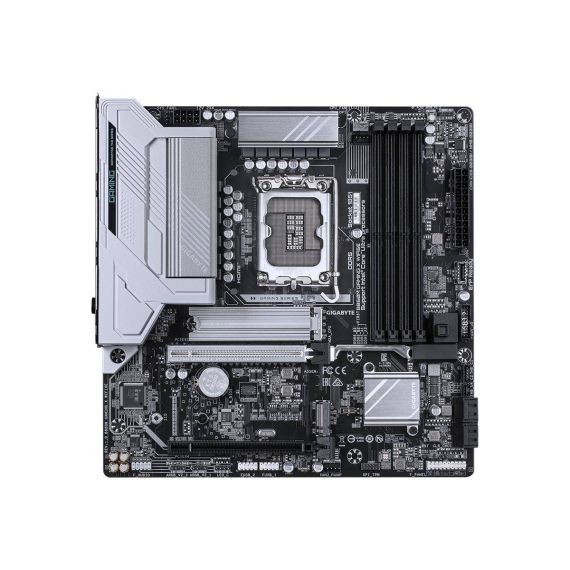

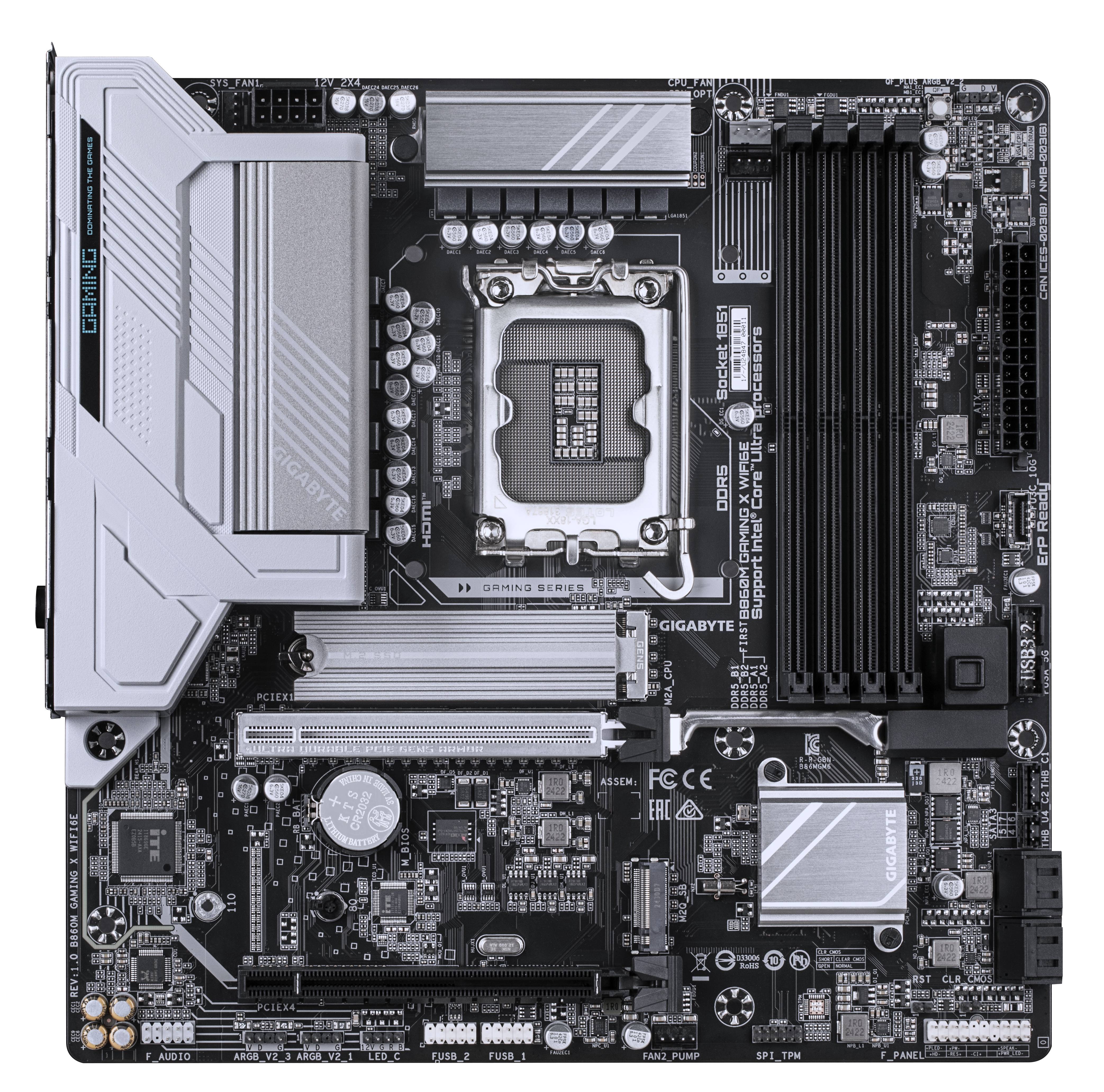

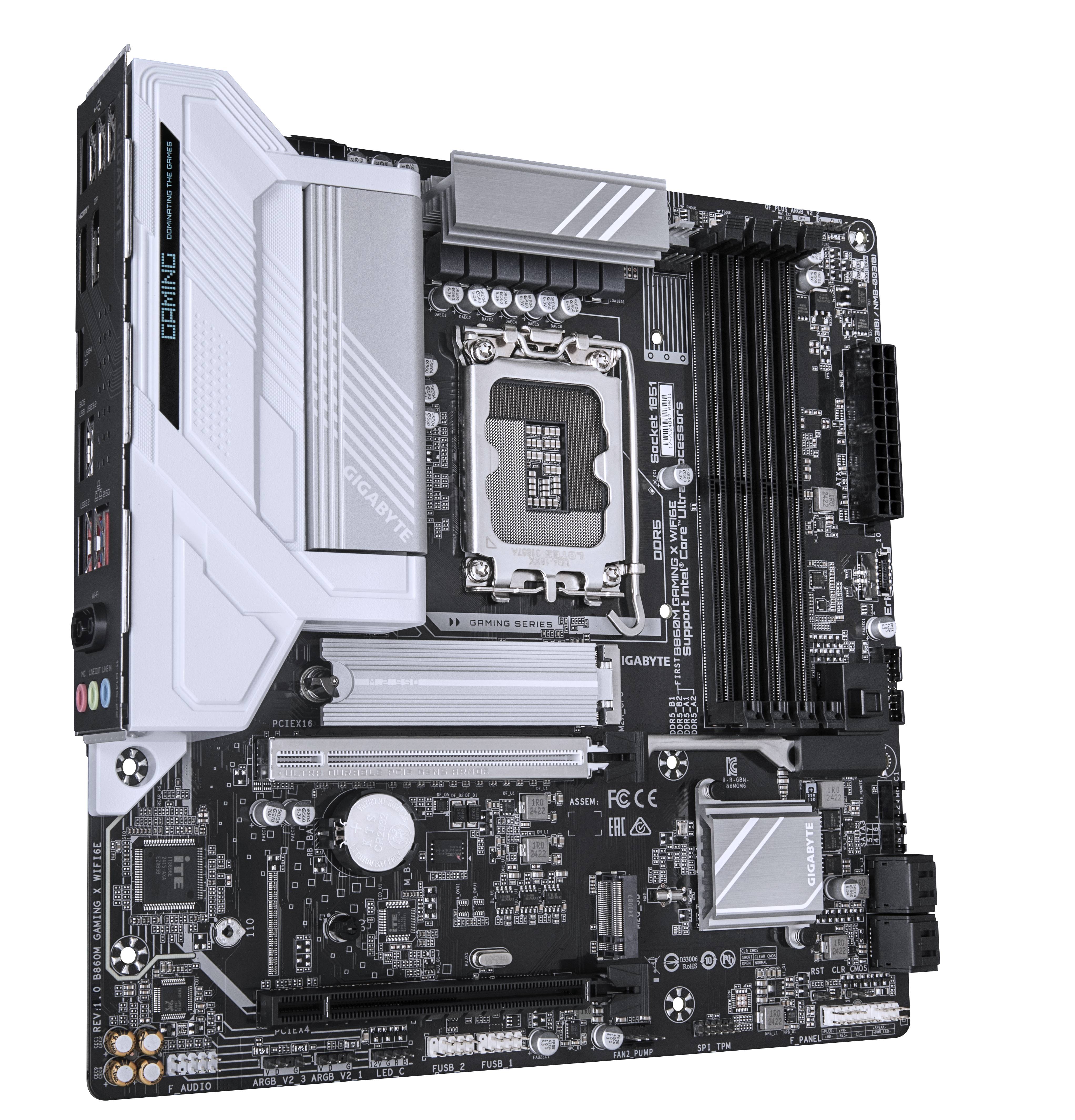

Gigabyte B860M GAMING X WIFI6E / Motherboard / ATX / LGA1851 Socket / AMD B850 Chipset / USB4, USB-C 3.2 Gen2, USB 3.2 Gen 1 / Bluetooth, Wi-Fi 6E, Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B860M GAMING X WIFI6E
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity options
The motherboard provides a variety of ports, including multiple USB 2.0, USB 3.2 Gen 1, USB4, HDMI, and DisplayPort, ensuring compatibility with various peripherals and devices. - High-speed memory support
Compatible with DDR5 SDRAM, the motherboard supports RAM speeds ranging from 2800 MHz to 4600 MHz (overclocking), enhancing system performance for demanding applications. - Efficient power design
With an 8+1+2 phase power design, this motherboard ensures stable power delivery to the CPU and components, essential for maintaining peak performance under load. - Advanced BIOS features
Includes an AMI UEFI BIOS with support for various monitoring features and optimizations, providing users with a comprehensive toolset for system management and customization. - Versatile storage solutions
Equipped with multiple storage interfaces including RAID support, M.2 sockets, and Serial ATA-600, allowing for flexible and high-speed storage configurations.
Special Features
- Supports AMD B850 chipset for improved performance
- Offers multiple expansion slots for enhanced flexibility
- Includes advanced high definition audio output
- Equipped with comprehensive hardware monitoring features
- Supports Wi-Fi 6E and Bluetooth 5.3 for seamless connectivity
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B850 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4600 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 2800 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel AX211 / Realtek RTL8852CE |
| Network Interfaces | Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x1 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 |

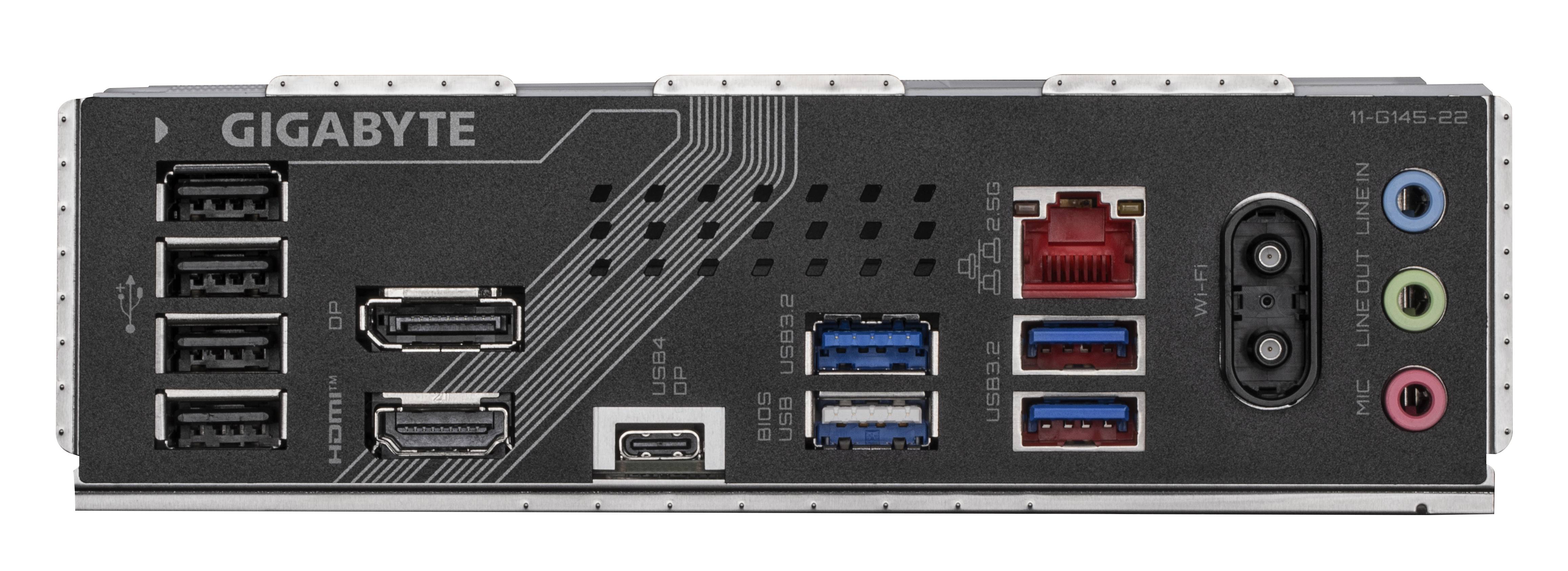

| Interfaces | 1 x USB4 3 x USB 3.2 Gen 1 5 x USB 2.0 1 x HDMI 1 x DisplayPort 2 x aerial 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, temperature detection, fan speed detection, fan fail warning, system voltage, fan control |
| Hardware Features | 8+1+2 Phase Power Design, GIGABYTE Smart Fan 6, DIY Friendly Design, 2oz Copper PCB, 6 Layer PCB |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wi-Fi aerial, 1 x M.2 rubber package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - GigaByte - B860M GAMING X WIFI6E
CPU Socket
- Socket 1851
More Details
Product Code
03:260869
EAN Code
4719331867133
Manufacturer
GigaByte
