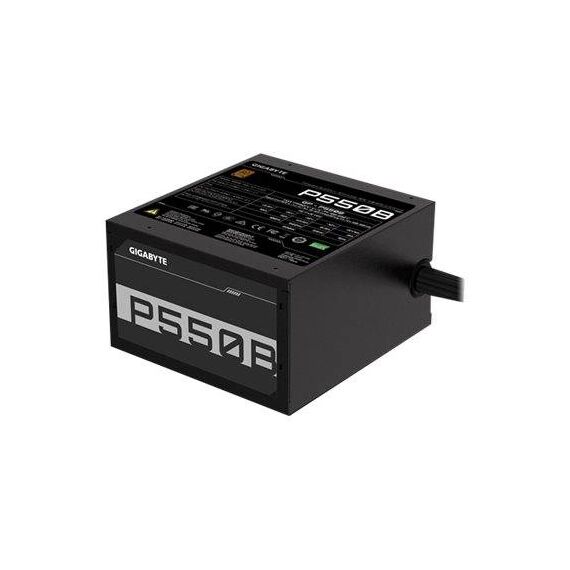

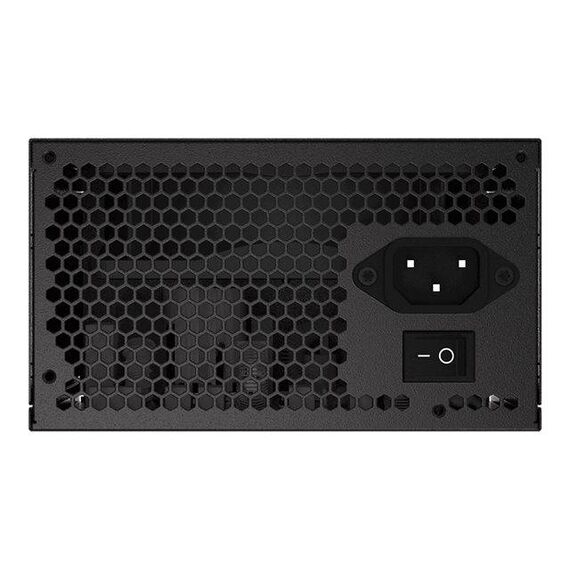

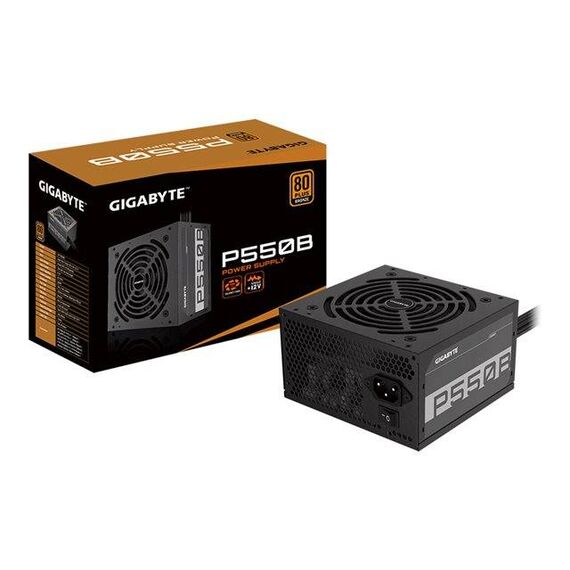

Gigabyte P550B / Power supply (internal) / ATX12V 2.31 / 80 PLUS Bronze / AC 100-240 V / 550Watt / active PFC | GP-P550B
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Gigabyte P550B / Power supply (internal) / ATX12V 2.31 / 80 PLUS Bronze / AC 100-240 V / 550 Watt / active PFC | GP-P550B
Description
P550B's better power efficiency leads to less power waste, less heat and less fan noise. It provides a better solution for system builds. The flat cable reduces the clutter and improves the airflow in the case.
Gigabyte P550B Power supply 550Watt | GP-P550B
Special Features
- Better power efficiency
- Less power waste
- Silent fan
- Superior protection
Product features
- Silent fan
Silent hydraulic bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The fan provides longer and more stable life time. - Superior protection
In order to make sure the entire computer system to operate stably under any conditions, Gibagyte not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.31 |
| PSU Form Factor | ATX |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 550 Watt |
| Output Current | +3.3V - 18 A ¦ +5V - 15 A ¦ +12V - 43.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 85% |
| Power Factor (PF) | 0.9 |
| 80 PLUS Certification | 80 PLUS Bronze |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, hydraulic bearing cooling fan, non-modular |
| Compliant Standards | TUV, CCC, FCC, RoHS, EAC, cRUus |
| Service & Support | Limited warranty - 3 years |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Χαρακτηριστικά
Product Code
04:347538
EAN Code
4719331551490
Manufacturer
GigaByte
