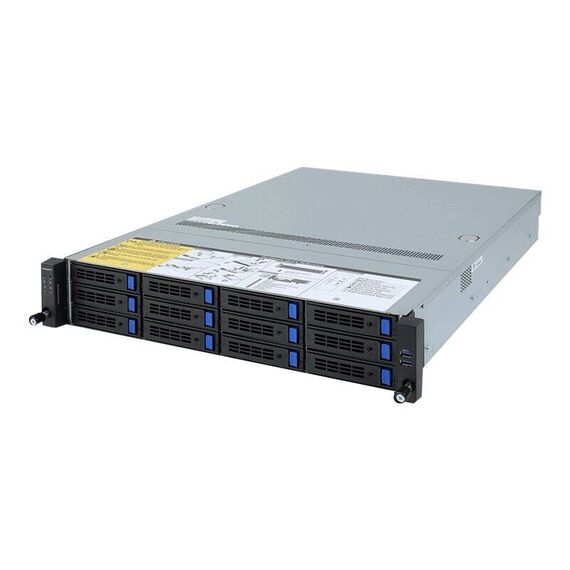

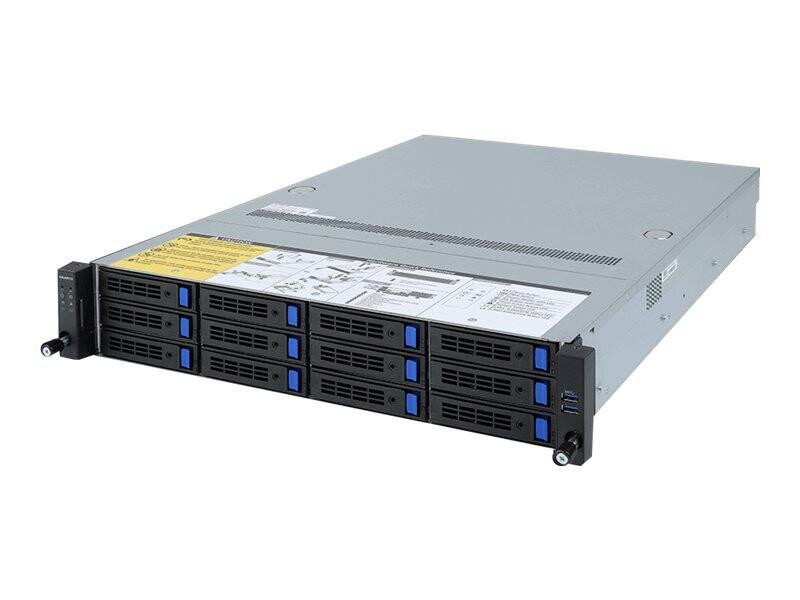

Gigabyte R282-Z90 (rev. 100) / Server / rack-mountable / 2U / 2-way / no CPU up to / RAM 0 GB / SATA / hot-swap 2.5", 3.5" bay(s) / no HDD / AST2500 / Gigabit Ethernet / no OS / monitor: none | 6NR282Z90MR-00
Please sign in so that we can notify you about a reply
Product Features
- Dynamic fan speed control
GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system's current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve excellent cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited when necessary according to the user's custom requirements. - Easier serviceability
Simply slot in / pull out the card without needing to open the server chassis; tool less design. - Larger thermal envelope
More space for heat sink provides an increased power budget for emerging capabilities. - Cold redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher loading, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with dual PSU. When the total system loading falls lower than 40%, the system will automatically place one PSU into standby mode, enabling the other PSU to take over the greater load. This can enable total system power efficiency savings of up to 10%. - SCMP
SCMP is a GIGABYTE feature that will automatically force the system's CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost.
Special Features
- 2x 1Gb/s LAN ports
- 1x dedicated management port
- 12 x 3.5" and 2 x 2.5" SATA hot-swappable HDD/SSD bays
- Ultra-fast M.2 with PCIe Gen3 x4 interface
- 8x PCIe Gen4 x16 and x8 expansion slots
- 1x OCP 3.0 Gen4 x16 mezzanine slot
- 1x OCP 2.0 Gen3 x8 mezzanine slot
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 14 |
| Processor / Chipset | Processor / Chipset |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket SP3 |
| RAM | RAM |
| Installed Size | 0 GB |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 32 (Total) / 32 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM), 8-channel memory architecture |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Networking | Networking |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I350-AM2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 12 (total) / 12 (free) x hot-swap 3.5" ¦ 2 (total) / 2 (free) x hot-swap 2.5" |
| Slots | 2 (total) / 2 (free) x PCIe 4.0 x8 - half-length, low-profile ¦ 2 (total) / 2 (free) x PCIe 4.0 x16 - half-length, full-height ¦ 4 (total) / 4 (free) x PCIe 4.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 / Open Compute Project mezzanine (OCP) 2.0 ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280/22110 |
| Interfaces | 4 x USB 3.0 (2 front, 2 rear) ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x management (NIC) - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 x CPU Heatsink, rack rail kit |
| Compliant Standards | RoHS |
| Power | Power |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V / DC 240 V (50 - 60 Hz) |
| Power Provided | 1200 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43.8 cm |
| Depth | 73 cm |
| Height | 8.7 cm |
| Weight | 18 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 98.2 cm |
| Shipping Depth | 58.8 cm |
| Shipping Height | 26.8 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 80% (non-condensing) |
