Gigabyte GeForce RTX 3060 GAMING OC 12G (rev. 2.0) / OC Edition / graphics card / GF RTX 3060 / 12 GB GDDR6 / PCIe 4.0 x16 / 2 x HDMI, 2 x DisplayPort | GV-N3060GAMING OC-12GD 2.0
Please sign in so that we can notify you about a reply
Product Features
- Alternate spinning
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure. - Smooth airflow
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. - 3D Active Fan
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. - Unique blade fan
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. - Graphene nano lubricant
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter. - Screen cooling
Extended heatsink design allows air flow to pass through, providing better heat dissipation. - Heat pipes direct touch
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling. - RGB Fusion 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices. - Protection metal back plate

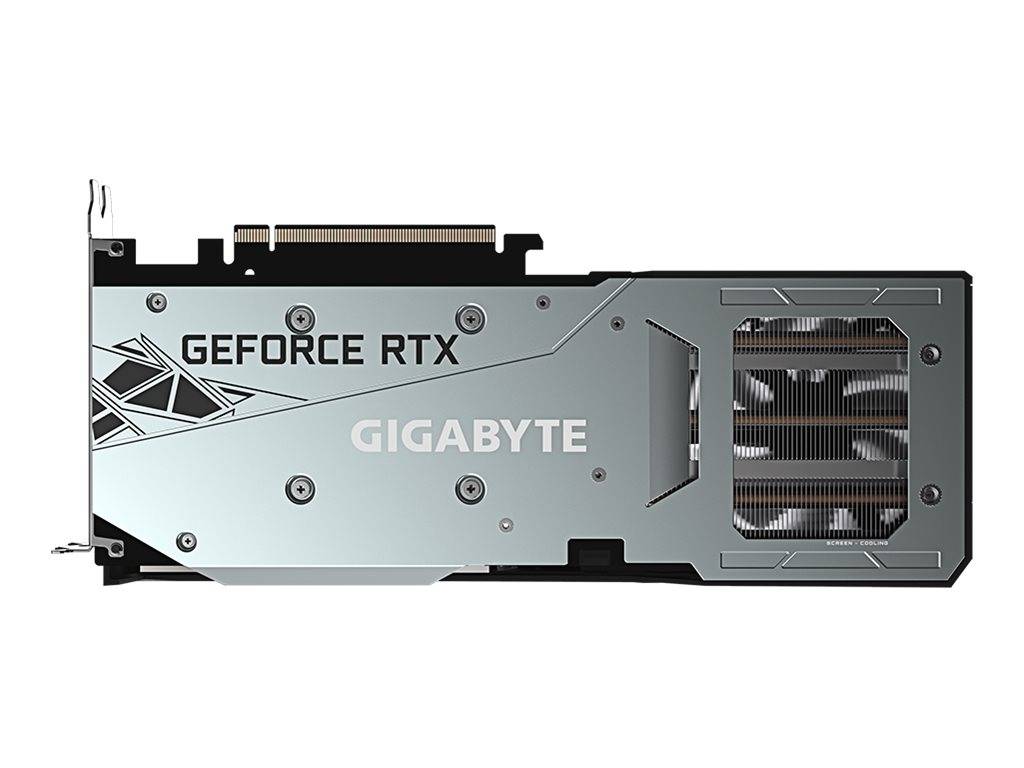

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. - POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Special Features
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX 3060
- Integrated with 12GB GDDR6 192-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion 2.0
- Protection metal back plate
- Limited Hash Rate version
Product Specification
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 3060 |
| Core Clock | 1837 MHz |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

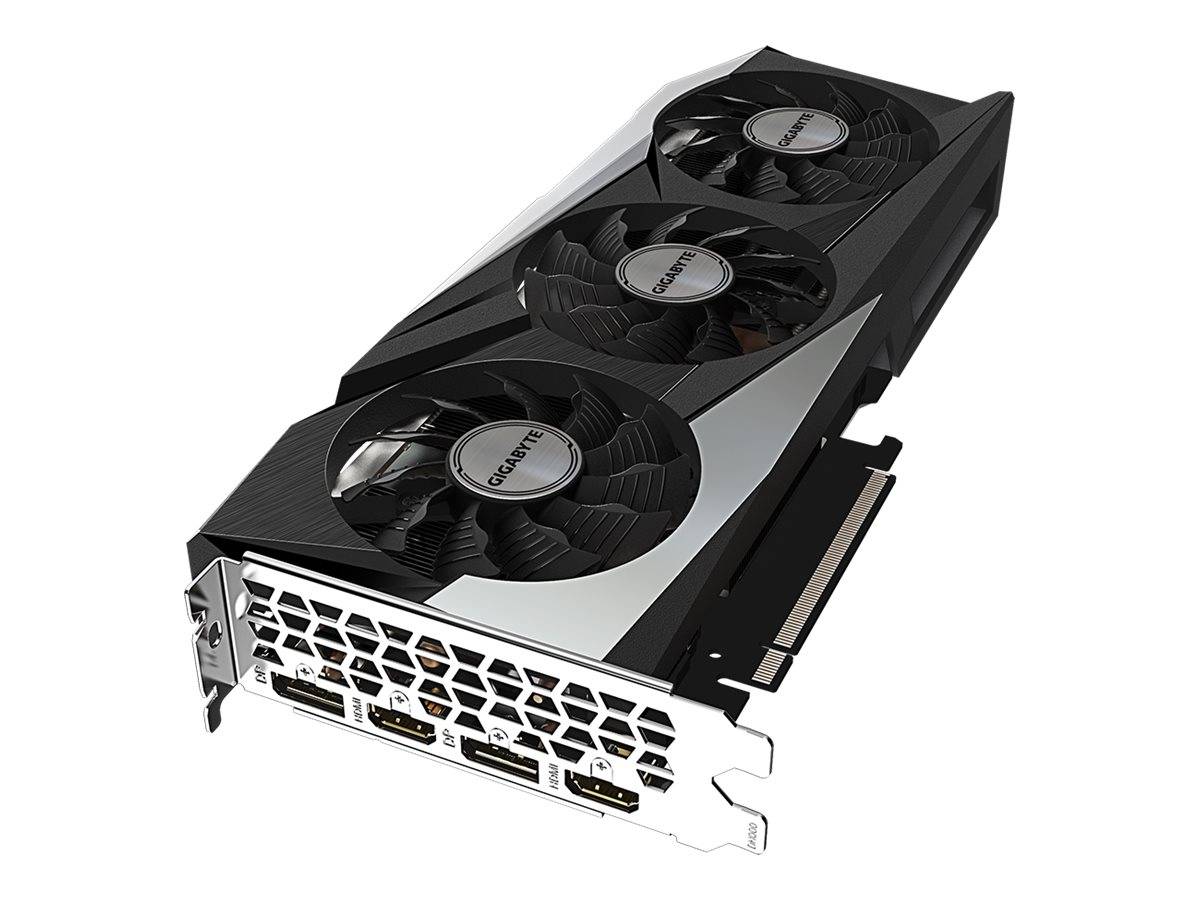

| Interfaces | 2 x DisplayPort ¦ 2 x HDMI |
| API Supported | OpenGL 4.6, DirectX 12 Ultimate |
| Features | GIGABYTE WindForce 3x, Heat Pipe Direct Touch technology, metal wraparound backplate, NVIDIA Tensor Core, RGB Fusion 2.0, Nvidia RT Core, Gigabyte Alternate Spinning, NVIDIA Ampere GPU technology, 3D Active Fan, Limited Hash Rate |
| Memory | Memory |
| Size | 12 GB |
| Technology | GDDR6 SDRAM |
| Effective Clock Speed | 15000 MHz |
| Bus Width | 192-bit |
| Bandwidth | 360 GBps |
| System Requirements | System Requirements |
| Required Power Supply | 550 W |
| Additional Requirements | 8 pin PCI Express power connector |
| Miscellaneous | Miscellaneous |
| Compliant Standards | DisplayPort 1.4a |
| Width | 4.1 cm |
| Depth | 28.2 cm |
| Height | 11.7 cm |
Features - GigaByte - GV-N3060GAMING OC-12GD 2.0
GPU
GeForce RTX 3060
More Details
Product Code
04:377356
EAN Code
4719331309312
Manufacturer
GigaByte
