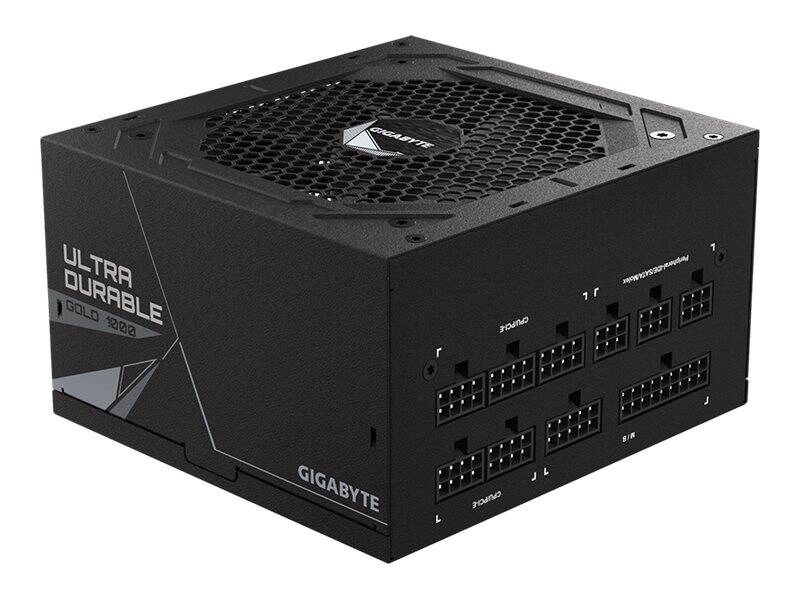

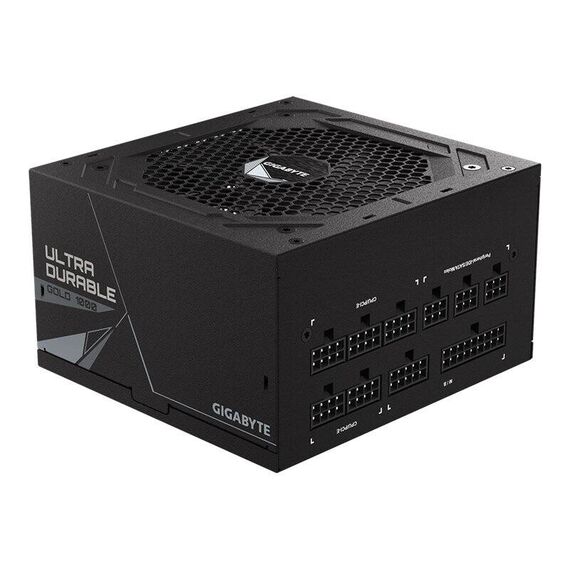

Gigabyte UD1000GM - Power supply (internal) - ATX12V 2.31/ EPS12V - 80 PLUS Gold - AC 100-240 V - 1000 Watt - active PFC | GP-UD1000GM
GP-UD1000GM
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.31/ EPS12V |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83.3 A ¦ -12V - 0.3 A |
| Efficiency | 90% |
| Power Factor (PF) | 0.9 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Overheat protection, Smart Fan Control Quiet technology, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, hydraulic bearing cooling fan, fully modular |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
