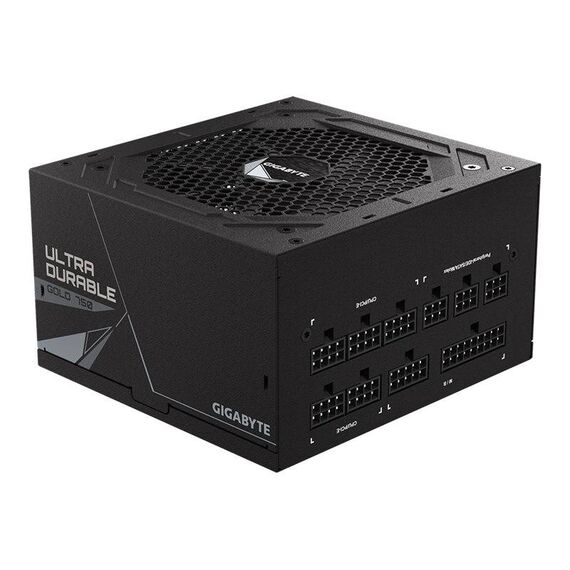

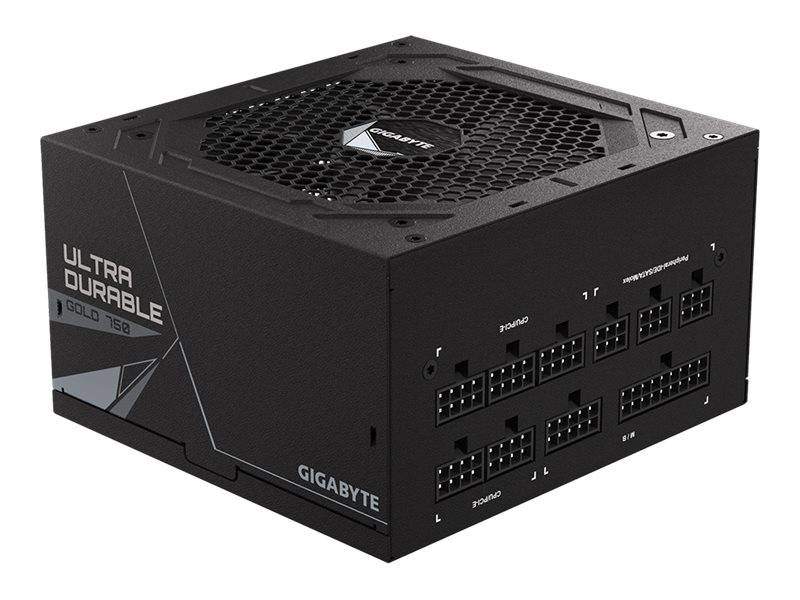

Gigabyte UD750GM / Power supply (internal) / ATX12V 2.31/ EPS12V / 80 PLUS Gold / AC 100-240 V / 750 Watt / active PFC | GP-UD750GM
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.31/ EPS12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 61 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Power Factor (PF) | 0.9 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Overheat protection, Smart Fan Control Quiet technology, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, hydraulic bearing cooling fan, fully modular |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - GigaByte - GP-UD750GM
More Details
Product Code
03:225642
EAN Code
4719331552671
Manufacturer
GigaByte
