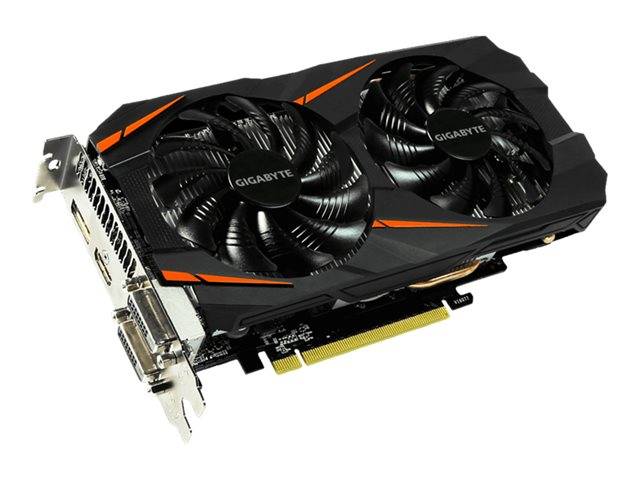

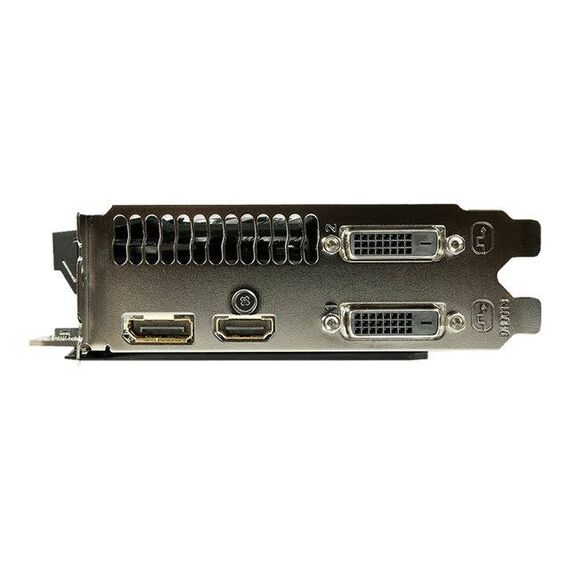

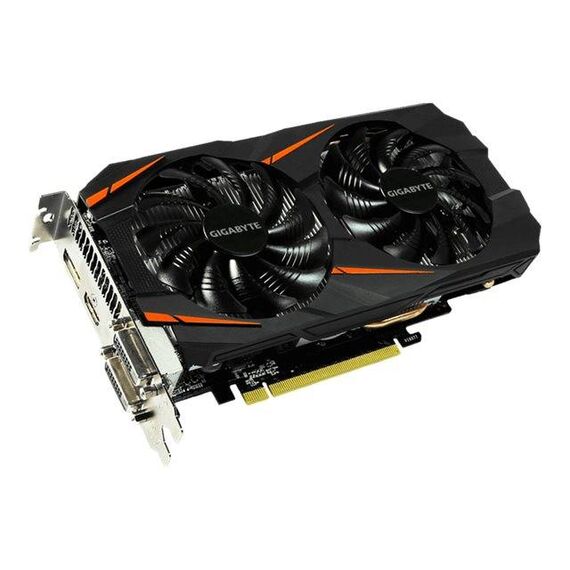

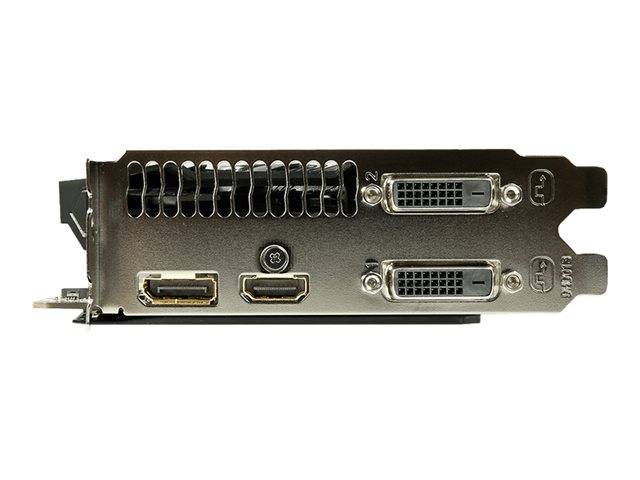

Gigabyte GeForce GTX 1060 WINDFORCE OC 6G / Graphics card / GF GTX 1060 / 6 GB GDDR5 / PCIe 3.0 x16 / 2 x DVI, HDMI, DisplayPort | GV-N1060WF2OC-6GD

Description

The WINDFORCE 2X cooling system features two 90 mm unique blade fans, alternate spinning fan design, pure copper composite heat-pipe, heat pipe direct touch technology, semi-passive 3D active fan, and protection back plate together delivering an effective heat dissipation capacity for higher performance at lower temperatures.Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.The airflow is spilled by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.

Special Features

• Powered by GeForce GTX 1060
• Integrated with 6 GB GDDR5 192 bit memory
• WINDFORCE 2X with blade fan design
• Support up to 8K display @60 Hz
• Build with 4+1 power phases

Product features

• WINDFORCE 2X cooling system
  The WINDFORCE 2X cooling system features two 90 mm unique blade fans, alternate spinning fan design, pure copper composite heat-pipe, heat pipe direct touch technology, semi-passive 3D active fan, and protection back plate together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
• Alternate spinning fan design
  Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.
• 90 mm unique blade fan design
  The airflow is spilled by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
• 3D active fan
  The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
• Composite heat-pipe
  The composite heat-pipe combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
• Heat pipe direct touch
  The pure copper heat pipe is shaped to maximize the direct contact area to the GPU.
• Protection back plate
  Glorious black back plate provides the solid protection, strengthens the structure and inspires the passion for gaming.
