Gigabyte Z790 D / 1.0 / motherboard / ATX / LGA1700 Socket / Z790 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C 3.2 Gen 1 / 2.5 Gigabit LAN / DDR5 / onboard graphics (CPU required) / High Definition Audio (7.1-channel) | Z790 D
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
With a comprehensive array of ports including HDMI, USB 3.2 Gen 2, LAN (2.5 Gigabit Ethernet), and more, this motherboard ensures a wide range of connectivity options for various peripherals and devices, enhancing the user experience with fast and versatile connections. - Robust storage solutions
Equipped with 6 x SATA-600 (RAID) ports and 2 x M.2 interfaces, the motherboard offers robust storage solutions, supporting high-speed data transfer and RAID configurations for improved data integrity and performance. - Optimized for performance
Featuring support for up to 5333 MHz (O.C.) DDR4 SDRAM across 4 DIMM slots, the motherboard is designed to maximize the performance of 12th/13th and 14th Generation Intel Core processors, ensuring smooth and efficient operation even under demanding workloads. - Advanced cooling features
GIGABYTE Smart Fan 6 technology and M.2 Thermal Guard provide advanced cooling solutions, maintaining optimal temperatures for key components and ensuring sustained performance and reliability. - Durable and reliable
The motherboard is built with a 6 Layer PCB, 16+1+1 Phase Power Design, and durable components, offering a stable foundation for your PC build that's designed to last through intense gaming sessions and demanding applications.
Special Features
- Supports 12th/13th and 14th Generation Intel Core processors for high-performance computing
- Dual-channel memory architecture with support for DDR4 SDRAM up to 5333 MHz (O.C.), enhancing system speed and responsiveness
- Comprehensive cooling system with GIGABYTE Smart Fan 6 and M.2 Thermal Guard for optimal temperature management
- 2.5 Gigabit Ethernet for high-speed network connectivity, improving online gaming and streaming experiences
- RGB FUSION 2.0 offers customizable lighting effects, adding aesthetics to functionality
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | High Definition Audio (7.1-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x4 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |

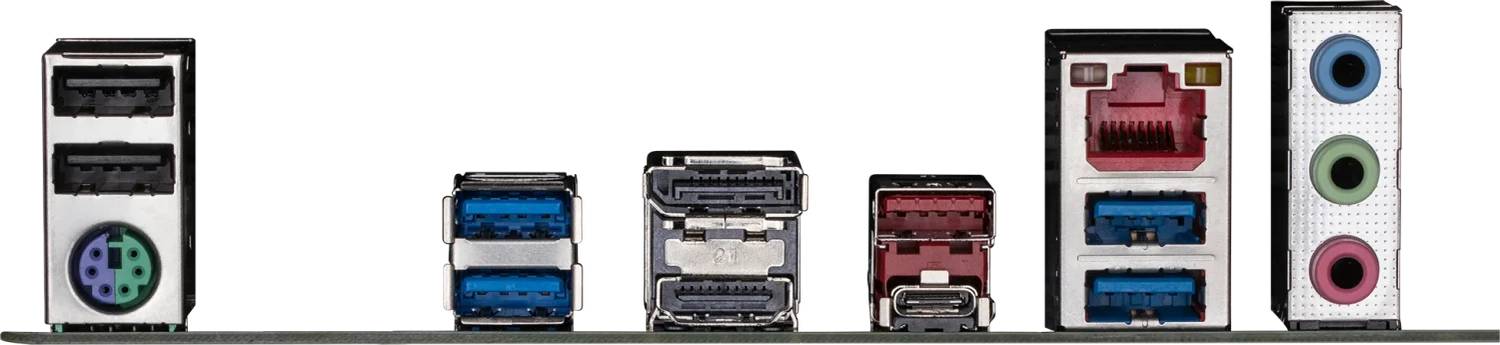

| Interfaces | HDMI ¦ 1 x USB 3.2 Gen 2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 2.0 ¦ 1 x USB-C Gen2x2 |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 2 x Thunderbolt - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, water cooling flow rate, fan fail warning, fan speed detection, temperature detection |
| Hardware Features | Q-Flash, Ultra Durable, 2x Copper PCB, 6 Layer PCB, Q-Flash Plus, M.2 Thermal Guard, RGB FUSION 2.0, DIY Friendly Design, 16+1+1 Phase Power Design, GIGABYTE Smart Fan 6, AMD CrossFire technology support, GIGABYTE PerfDrive, MOSFET Heatsink |
| Miscellaneous | Miscellaneous |
| Software Included | Realtek Gaming LAN Bandwidth Control, Norton Internet Security (OEM Version) |
| Width | 30.5 cm |
| Depth | 24.4 cm |
