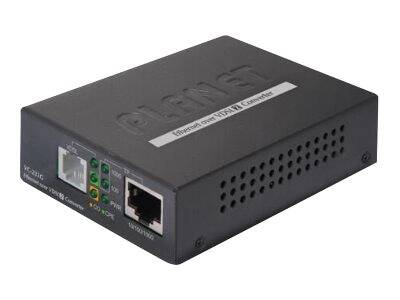

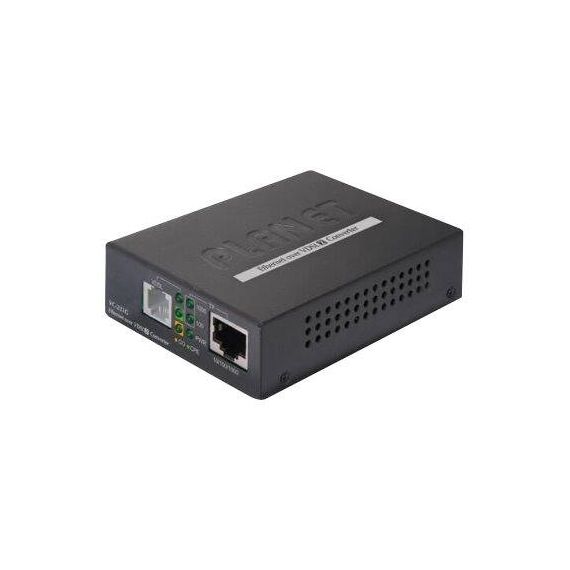

PLANET VC-231G - Media converter - GigE, Ethernet over VDSL2 - 10Base-T, 100Base-TX, 1000Base-T - RJ-45 / RJ-11 - up to 1.4 km | VC-231G
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Media converter |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, Ethernet over VDSL2 |
| Data Transfer Rate | 200 Mbps |
| MAC Address Table Size | 2K entries |
| Max Transfer Distance | 1.4 km |
| Status Indicators | Power, link/activity, VDSL |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, 9 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x VDSL2 - RJ-11 |
| Dimensions & Weight | |
| Width | 9.7 cm |
| Depth | 7 cm |
| Height | 2.6 cm |
| Weight | 184 g |
Features - Planet - VC-231G
More Details
Product Code
04:247952
EAN Code
4711605282826
Manufacturer
Planet
