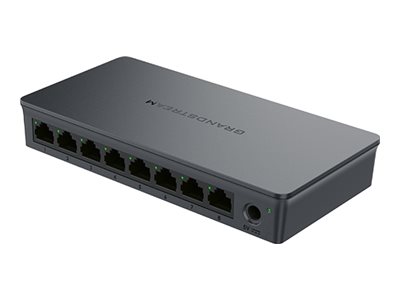

Grandstream GWN7711 Series GWN7711 - Switch - Managed - 8 x 10/100/1000 - desktop, wall-mountable | GWN7711

Product Features
- Reliable environmental performance
The Grandstream GWN7711 switch is designed to operate under varying conditions with a temperature range from 0°C to 40°C. It also supports storage temperatures between -20°C and 60°C, ensuring functionality in diverse environments. - Versatile connectivity options
Equipped with 8 ports of 1000Base-T connectivity, this switch provides rapid data transfer suited for both home and office setups, accommodating multiple devices at once. - Robust network management features
With support for VLANs and port mirroring, network administrators can efficiently manage traffic and monitor performance, ensuring optimal operation across networks. - Comprehensive status monitoring
The GWN7711 includes several status indicators for power, PoE, link, and activity. This feature allows users to easily monitor the operational status of the switch at any given time. - Flexible installation design
Designed with a compact form factor, this switch can be conveniently used as a desktop device or mounted on a wall, making it adaptable to various workspace configurations.
Special Fetures
- Operates in a range of temperatures from 0°C to 40°C for dependable performance
- Features 8 Gigabit Ethernet ports for high-speed connectivity
- Includes VLAN support and port mirroring for enhanced network management
- Offers various status indicators for real-time monitoring of operations
- Designed for both desktop and wall-mountable configurations
Product Specification
Device Type | Switch - 8 ports - Managed |
Enclosure Type | Desktop, wall-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 |
Performance | Bandwidth per port: 8 Gbps <br /> Switching capacity: 16 Gbps <br /> Forwarding mode: 11.9 Mpps <br /> Packet buffer size: 4 Mbit |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 15KB |
Remote Management Protocol | IPv4 |
Features | Loop detection, cable test, port mirroring, fanless, broadcast mode, multicast mode, Storm Control, QoS, VLAN support, reset button, store and forward, DHCP client, security slot (Kensington security lock compatible), plastic housing |
Compliant Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
Status Indicators | Link, activity, PoE, power |
Expansion / Connectivity | |
Interfaces | 8 x 1000Base-T RJ-45 |
Power | |
Power Device | External power adapter |
Voltage Required | DC 5 V |
Electric Current Required | 0.6 A |
Miscellaneous | |
Included Accessories | Power adapter |
Compliant Standards | FCC, RCM, IC |
Dimensions & Weight | |
Width | 16.4 cm |
Depth | 8 cm |
Height | 3 cm |
Weight | 170 g |
Dimensions & Weight (Shipping) | |
Shipping Width | 20.2 cm |
Shipping Depth | 16.6 cm |
Shipping Height | 5.4 cm |
Shipping Weight | 380 g |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 60 °C |
Humidity Range Storage | 10 - 90% (non-condensing) |
