HAGOR HA DH 900 - 1600 S - Mounting kit (ceiling mount) - for LCD display - lockable - black - screen size: 32"-50" | 2704
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Special Fetures
- 32-50" (81-127 cm)
- Landscape | Portrait
- Incl. VESA mount up to max. 400 x 400 mm
- TV mount can be tilted between -5° and +30
- Can be swiveled by ±15° on the mounting side
- Ceiling distance adjustable in 100 mm increments
- Incl. cover ring for suspended ceilings
- Internal cable routing
- 50 kg maximum load capacity
Product Specification
| Colour | Black |
| Package Content | Ceiling cover |
| AV Furniture | |
| Type | Mounting kit |
| Mounting Components | Ceiling mount |
| Recommended Use | LCD display |
| VESA Mounting Interface | Up to 400 x 400 mm, from 100 x 100 mm |
| Cable Management | Internal cable management |
| Lockable | Yes |
| Recommended Display Size | 32"-50" |
| Tilt | -5° to 30° |
| Lift | 70 cm |
| Swivel | -15° to 15° |
| Adjustments | Height, tilt, swivel |
| Max Load Weight | 50 kg |
| Finish | Powder coated |
| Details | Portrait orientation, landscape orientation |
| Dimensions & Weight Details | |

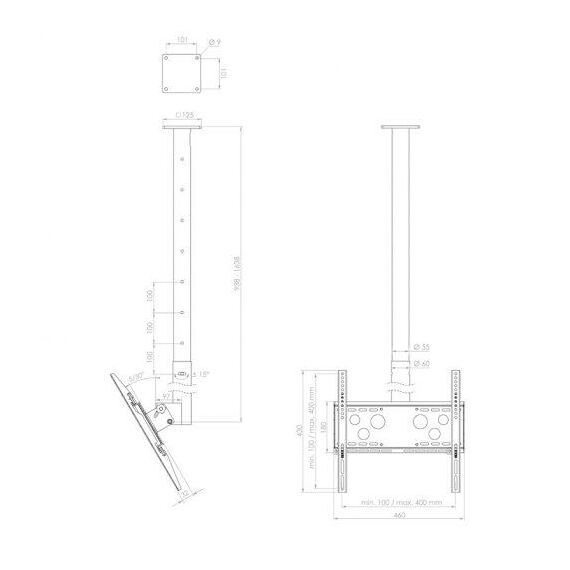

| Dimensions | Column (minimum) - width: 12.5 cm, depth: 12.5 cm, height: 93.8 cm ¦ Column (maximum) - width: 12.5 cm, depth: 12.5 cm, height: 163.8 cm ¦ Mounting bracket - width: 46 cm height: 43 cm |
Monitor mount capacity
Single monitor mount
Χαρακτηριστικά
Product Code
CF35369
EAN Code
4250058527042
Manufacturer
Hagor
