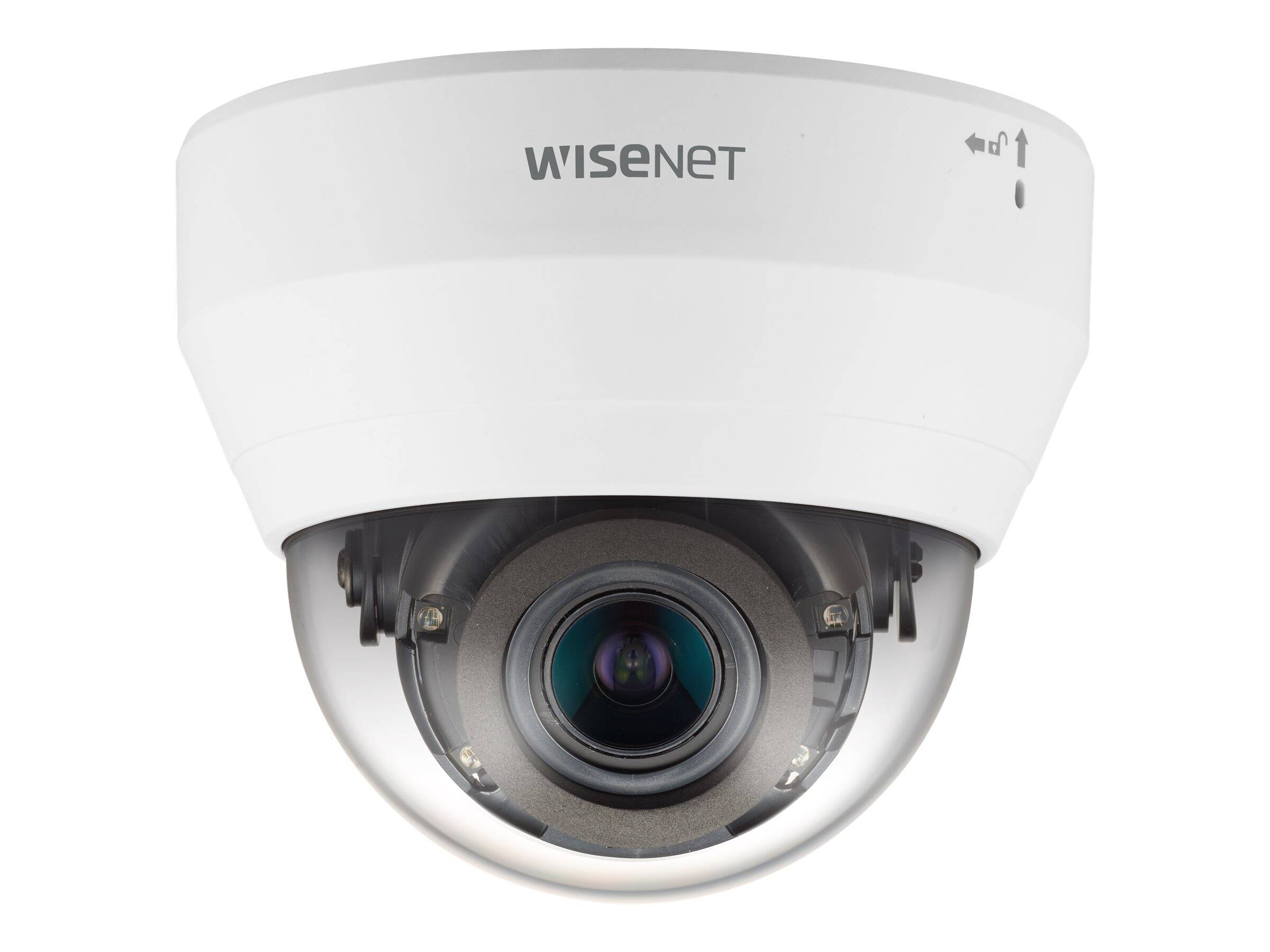

Hanwha Vision QND-6082R1 / Network surveillance camera / dome / colour (Day&Night) / 2 MP / 1920 x 1080 / 1080p / auto iris / motorized / composite / LAN 10/100 / MJPEG, H.264, H.265 / DC 12 V / PoE Class 3 | QND-6082R1
Please sign in so that we can notify you about a reply
Product Features
- Wide viewing angles
With angular fields of view ranging up to 132 degrees diagonally, 109 degrees horizontally, and 57.4 degrees vertically, the QND-6082R1 ensures comprehensive coverage, minimizing blind spots for enhanced security monitoring. - Night vision
Equipped with infrared LEDs and capable of capturing clear footage up to 20 m away in complete darkness, the camera switches seamlessly between color and B&W modes, ensuring round-the-clock surveillance. - High-definition video quality
The QND-6082R1 delivers crisp, clear video footage in Full HD 1080p resolution at 30 frames per second, providing detailed images for reliable surveillance and identification purposes. - Video analytics
Features such as motion detection, directional detection, and tamper-detection, along with support for various video analytics protocols including ONVIF (Profiles G, S, T), enhance security operations by enabling smart monitoring and alerts. - Durable and adaptable
Designed to operate in a wide range of environmental conditions, from -10°C to 55°C and 0 to 90% RH, the QND-6082R1 is suited for both indoor and outdoor installations, ensuring reliable performance in diverse settings.
Special Features
- Full HD 1080p resolution for clear, detailed images
- Infrared LEDs provide up to 20 m of night vision
- Supports microSD, microSDHC, and microSDXC cards for flexible storage options
- Robust networking capabilities with a wide range of supported protocols
- Environmental durability with operating temperatures from -10°C to 55°C
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 11.98 cm |
| Depth | 11.98 cm |
| Height | 9.88 cm |
| Weight | 320 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.03 lux - colour - F1.6 - shutter 1/30 sec 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 20 m |
| Video Capture | 1920 x 1080 @ 30 fps |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), entrance / exit detection, WiseStream II support, anti-flicker, IP address filtering, Hallway View, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, Gain Control |
| Image Sensor | Image Sensor |
| Type | 2 MP CMOS 1/2.8" |
| Effective Pixels | 1920 x 1080 |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 3.1 x |
| Focal Length | 3.2 mm - 10 mm |
| Lens Iris | F/1.6-2.9 auto iris (DC) |
| Min Focus Distance | 50 cm |
| Horizontal Field of View (degree) | 33.2 - 109 |
| Vertical Field of View (degree) | 18.7 - 57.4 |
| Diagonal Field of View (degree) | 38 - 132 |
| Panning | Panning |
| Range (degree) | 350 |
| Tilting | Tilting |
| Range (degree) | 0 to 67 |
| Interfaces | Interfaces |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | Composite video LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IEEE 802.1x, IEEE 802.1af |
| Colour | White, RAL 9003 |
| Power | Power |
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 7.7 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 0 - 90% RH |
Features - Hanwha Techwin - QND-6082R1
More Details
Product Code
07:21246080
EAN Code
8801089208941
Manufacturer
Hanwha Techwin
