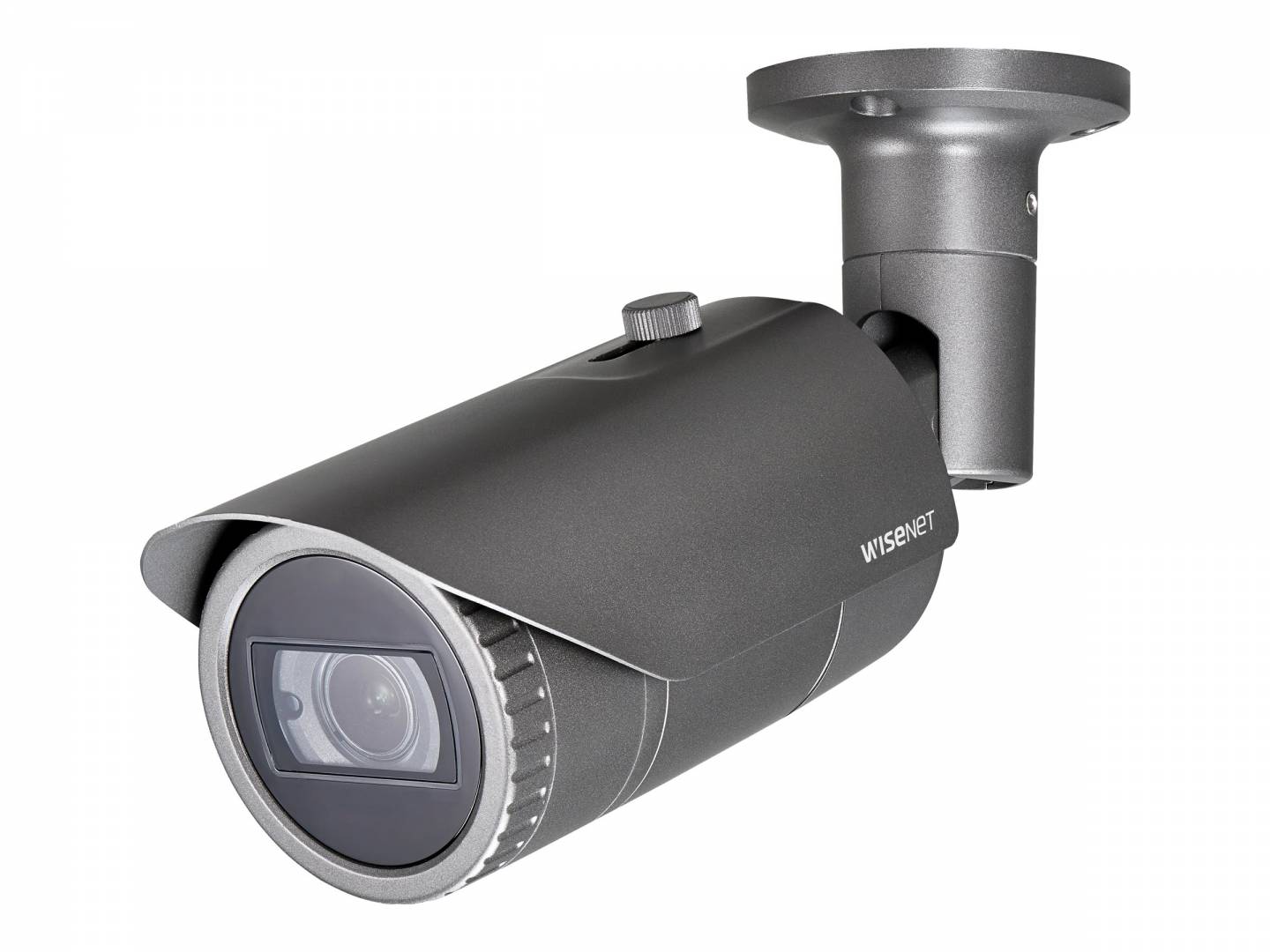

Hanwha Vision QNO-6082R1 / Network surveillance camera / bullet / colour (Day&Night) / 2 MP / 1920 x 1080 / auto iris / motorized / composite / LAN 10/100 / MJPEG, H.264, H.265 / DC 12 V / PoE Class 3 | QNO-6082R1
Please sign in so that we can notify you about a reply
Product Features
- Robust environmental adaptability
Designed to withstand a wide range of temperatures from -30°C to 60°C and humidity up to 90% RH, ensuring reliable operation in diverse environmental conditions. - Advanced optical performance
Features a motorized zoom lens with a focal length of 3.2 mm to 10 mm, auto iris, and a wide angular field of view, providing flexible surveillance coverage and high-quality imaging. - Enhanced night vision capability
Equipped with infrared LEDs, the camera delivers clear, black and white images up to 30 m away in complete darkness, with a minimum illumination of 0 lux. - Comprehensive video analytics
Includes features such as motion detection, tamper detection, and advanced analytics like directional detection and virtual line detection, enhancing security monitoring and situational awareness. - Versatile connectivity and storage options
Supports Ethernet 10Base-T/100Base-TX for network connectivity and comes with a variety of supported memory cards including microSD, microSDHC, and microSDXC for flexible storage solutions.
Special Features
- 30 m infrared night vision for clear images in complete darkness
- Motorized zoom lens with auto iris for detailed and flexible viewing angles
- Supports a wide range of network protocols ensuring compatibility and integration
- Robust against extreme weather, compliant with IK10 and IP66 standards
- Advanced video analytics for enhanced security and surveillance
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 7.8 cm |
| Depth | 7.8 cm |
| Height | 25.98 cm |
| Weight | 900 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.03 lux - colour - F1.6 - shutter 1/30 sec 0 lux - B&W - infrared LEDs on |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 720 x 576, 800 x 600, 1920 x 1080, 640 x 360, 800 x 448 |
| Frame Rate (max) | 30 frames per second |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), entrance / exit detection, WiseStream II support, anti-flicker, IP address filtering, Unicast Streaming, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, Gain Control |
| Image Sensor | Image Sensor |
| Type | 2 MP CMOS 1/2.8" |
| Effective Pixels | 1920 x 1080 |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 3.1 x |
| Focal Length | 3.2 mm - 10 mm |
| Lens Iris | F/1.6-2.9 auto iris (DC) |
| Horizontal Field of View (degree) | 33.2 - 109 |
| Vertical Field of View (degree) | 18.7 - 57.4 |
| Diagonal Field of View (degree) | 38 - 132 |
| Interfaces | Interfaces |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | Composite video LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IK10, IP66, IEEE 802.1x, IEEE 802.1af |
| Colour | Dark grey |
| Power | Power |
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 7.4 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 90% RH |
Features - Hanwha Techwin - QNO-6082R1
More Details
Product Code
07:21246262
EAN Code
8801089209382
Manufacturer
Hanwha Techwin
