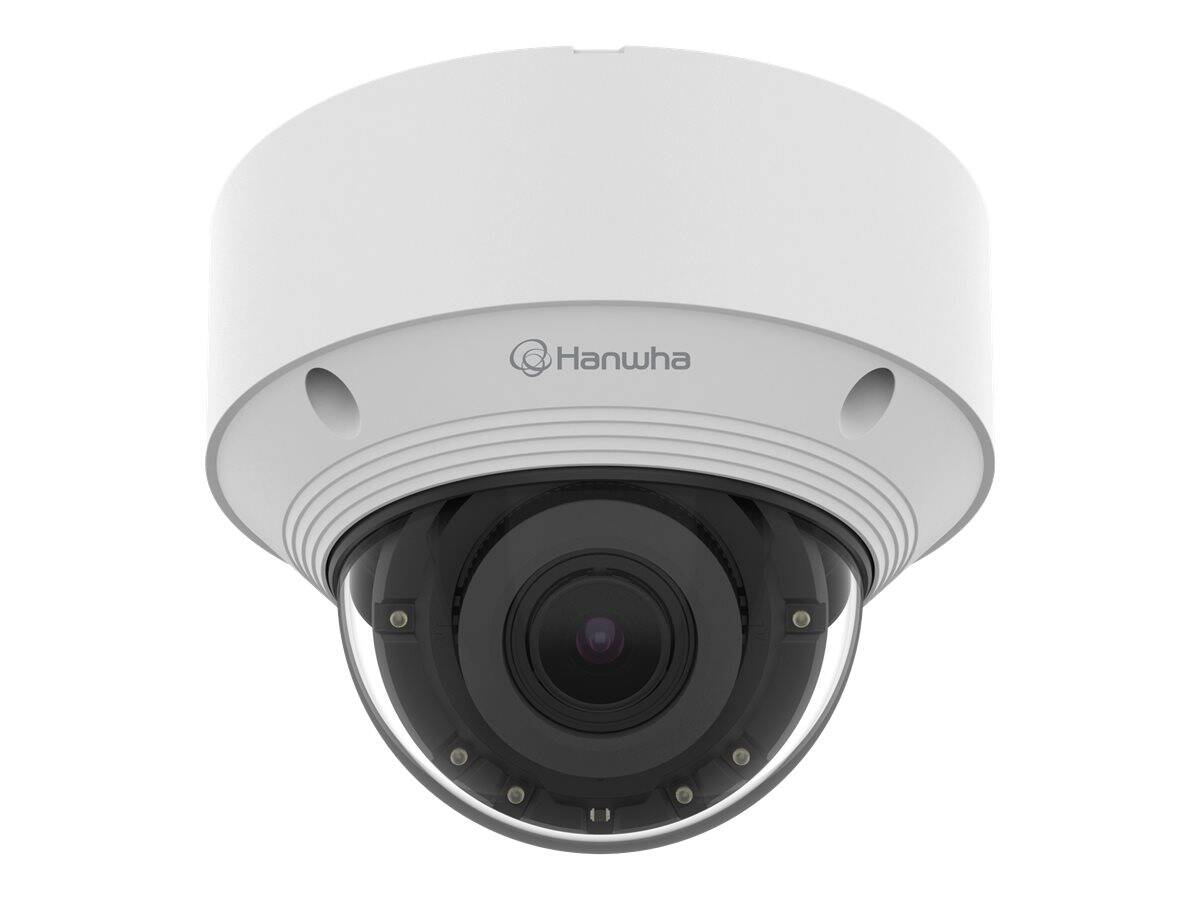

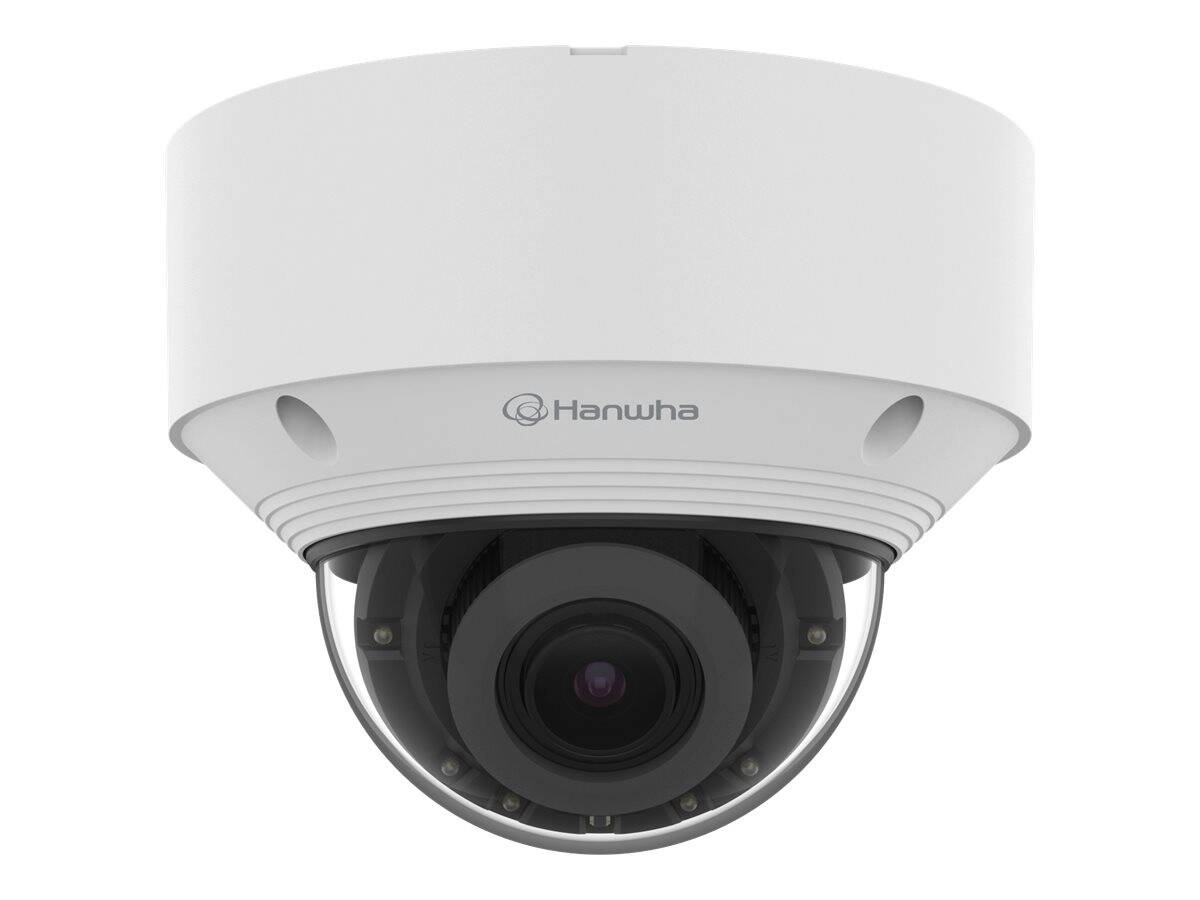

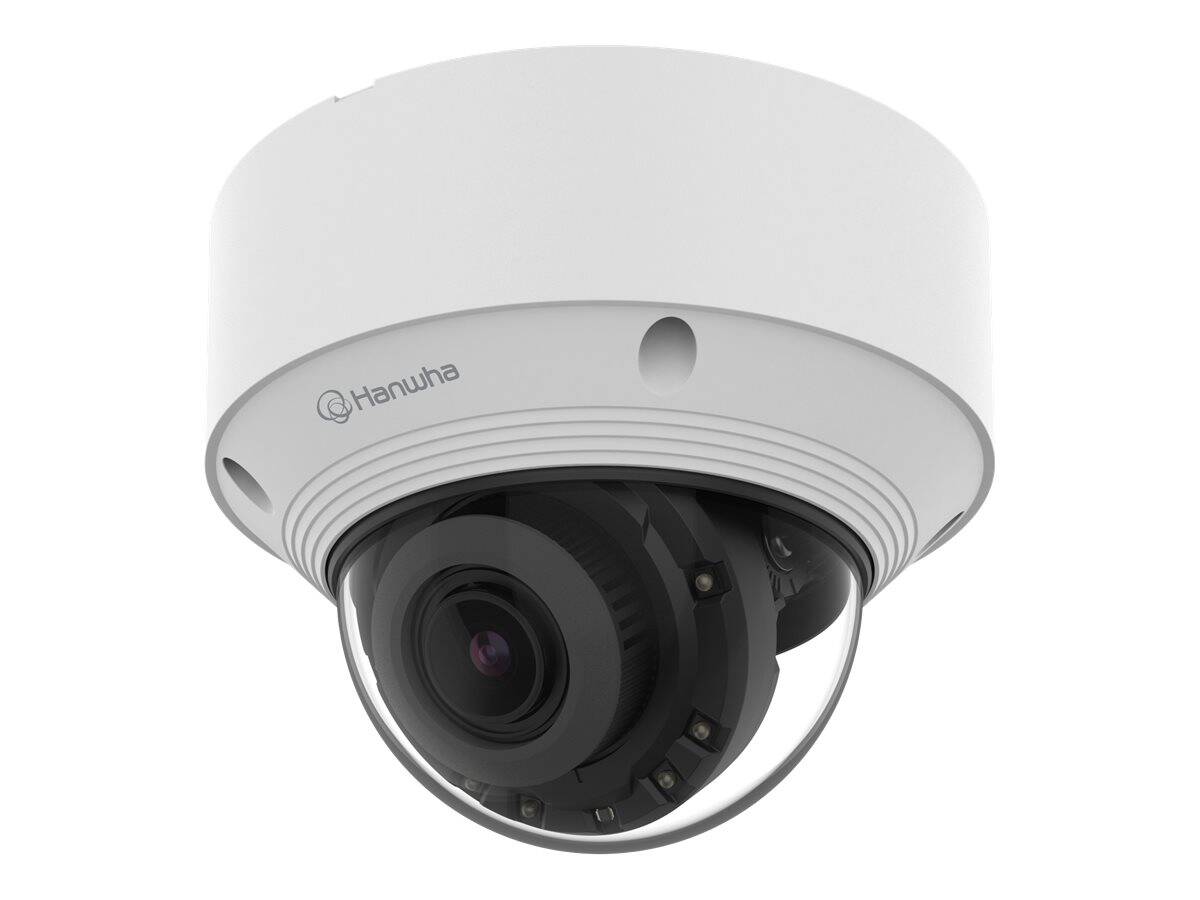

Hanwha Vision QNV-C8083R / Network surveillance camera / PTZ / dome / vandal-proof / colour (Day&Night) / 5 MP / 2592 x 1944 / auto iris / motorized / audio / LAN 10/100 / MJPEG, H.264, H.265 / PoE | QNV-C8083R
Please sign in so that we can notify you about a reply
Special Features
- H.265, H.264, MJPEG codec supported
- Multiple streaming
- Day and Night (ICR), WDR (120 dB)
- Micro SD/SDHC/SDXC 1 slot
- IP66, IK10
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 14 cm |
| Depth | 14 cm |
| Height | 11.02 cm |
| Weight | 875 g |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt / zoom - vandal-proof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.07 lux - colour - F1.6 - 30 IRE - shutter 1/30 sec 0 lux - B&W - infrared LEDs on 0.007 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, white balance, image flip, image mirror, Hallway View, WiseNR II, Samsung Super Noise Reduction (SSNRV), Privacy Mask Function, Gain Control, Lens Distortion Compensation (LDC), anti-flicker, Person Detection, Vehicle Detection, Object Detection, Virtual Line detection, loitering detection, intrusion detection, entrance / exit detection, Defocus Detection, motion detection, tamper-detection, WiseStream II support, WiseStream III support, digest authentication, notification picture to E-mail, notification picture to FTP, Handover, Unicast Streaming, Multicast Streaming, Constant Bitrate (CBR), Variable Bitrate (VBR), user access log, alarm function, direction detection, auto ICR |
| Image Sensor | Image Sensor |
| Type | 5 MP CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 3.2 x |
| Focal Length | 3.2 mm - 10.2 mm |
| Lens Iris | F/1.6-3.1 auto iris (DC) |
| Focus Adjustment | Automatic |
| Min Focus Distance | 1.2 m |
| Horizontal Field of View (degree) | 29 - 95 |
| Vertical Field of View (degree) | 21 - 69 |
| Diagonal Field of View (degree) | 36 - 126 |
| Panning | Panning |
| Range (degree) | 0 to 350 |
| Tilting | Tilting |
| Range (degree) | -35 to +70 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, EAP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 Audio line-in/microphone Audio line out USB - Micro-USB Type B |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IP66, IK10, IEEE 802.3af, IEEE 802.1x, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, CISPR-32 Class A, RCM, AS/NZS CISPR 32 Class A, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 62262 IK10 |
| Colour | White, RAL 9003 |
| Power | Power |
| Power Requirements | PoE |
| Power Device | 12.95 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
Features - Hanwha Techwin - QNV-C8083R
More Details
Product Code
07:21246518
EAN Code
8801089219909
Manufacturer
Hanwha Techwin
