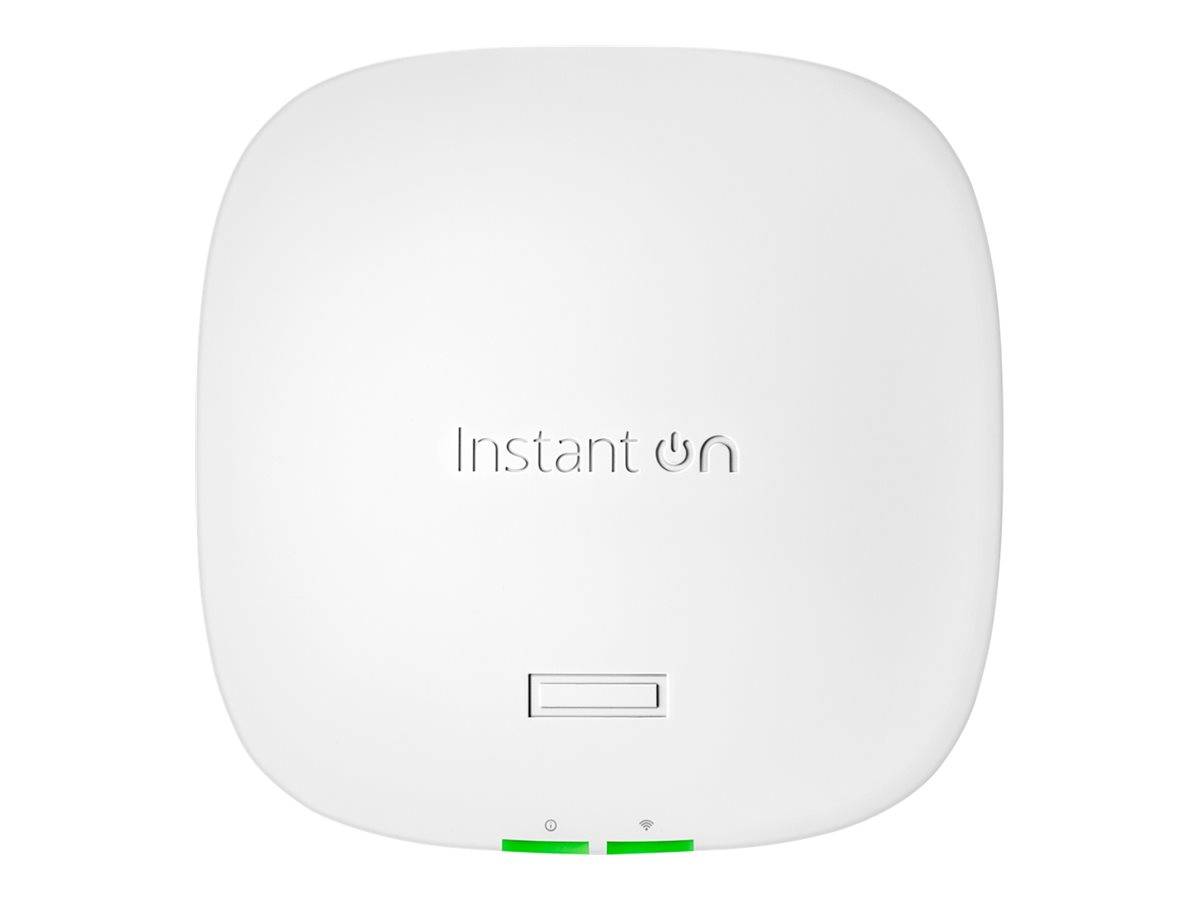

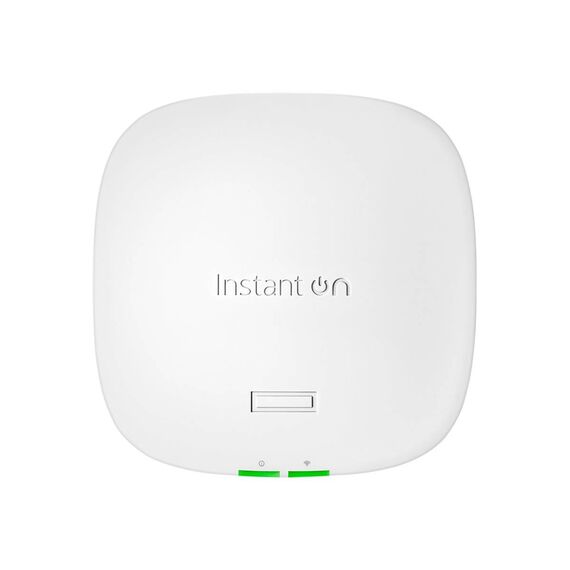

HPE Networking Instant On AP32 (RW) / Radio access point / Wi-Fi 6 / Wi-Fi 6E / 2.4 GHz, 5 GHz, 6 GHz / wall / ceiling mountable | S1T29A
Product Features
- Enhanced connectivity
The HPE Networking Instant On AP32 (RW) is equipped with a 2.5 GBase-T RJ-45 connector, ensuring high-speed, reliable connections for all your devices. Its support for Wi-Fi 6 technology offers excellent wireless performance across the 2.4 GHz, 5 GHz, and 6 GHz bands, making it suitable for dense, high-traffic environments. - Robust design
Designed for indoor use, the AP32 (RW) boasts a ruggedized chassis that's built to withstand the rigors of daily use. Its internal antennas are omnidirectional, providing consistent, high-quality signal coverage in all directions. - Advanced features
This wireless access point is packed with features like 2x2 MIMO technology, MU-MIMO technology, and OFDMA spread spectrum method. It also supports functionalities such as BSS Coloring, Target Wait Time (TWT), and Transmit Beamforming, enhancing the efficiency and reliability of wireless communication.
Special Features
- Supports Wi-Fi 6 technology for faster, more efficient wireless connectivity
- 2.5 GBase-T RJ-45 connector for high-speed, reliable connections
- Omnidirectional internal antennas provide wide coverage
- Features like MU-MIMO and OFDMA improve network efficiency
- Designed for indoor use with a ruggedized chassis
Product Specification
Device Type | Radio access point |
Ruggedized Design | Indoor |
Width | 16 cm |
Depth | 16 cm |
Height | 3.9 cm |
Weight | 520 g |
Networking | Networking |
Form Factor | Wall / ceiling mountable |
Connectivity Technology | Wireless |
Line Coding Format | 1024 QAM |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E) |
Spread Spectrum Method | OFDMA |
Network / Transport Protocol | PPPoE |
Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
Performance | Maximum data rate (6 GHz): 2.4 Gbps Maximum data rate (5 GHz): 1.2 Gbps Maximum data rate (2.4 GHz): 574 Mbps |
Capacity | Active users: 75 |
Status Indicators | Status, wireless |
Features | Static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Advanced Cellular Coexistence (ACC), MU-MIMO technology, 2x2 MIMO technology, security slot (Kensington security lock compatible), Target Wait Time (TWT), PoE Class 4, Transmit Beamforming, PoE Class 3, BSS Coloring |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6E |
Aerial | Aerial |
Antenna | Internal |
Antenna Qty | 2 |
Directivity | Omni-directional |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x 2.5 GBase-T - RJ-45 |
Miscellaneous | Miscellaneous |
Included Accessories | Ceiling/wall mount clip |
MTBF | 62 years |
Power | Power |
Power Over Ethernet (PoE) Supported | PoE |
Power Device | External power adapter |
Power Consumption Operational | 11 Watt |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 2 years |
