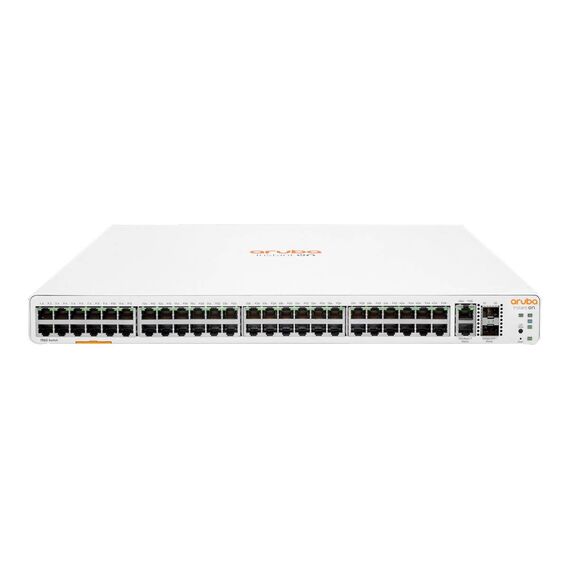

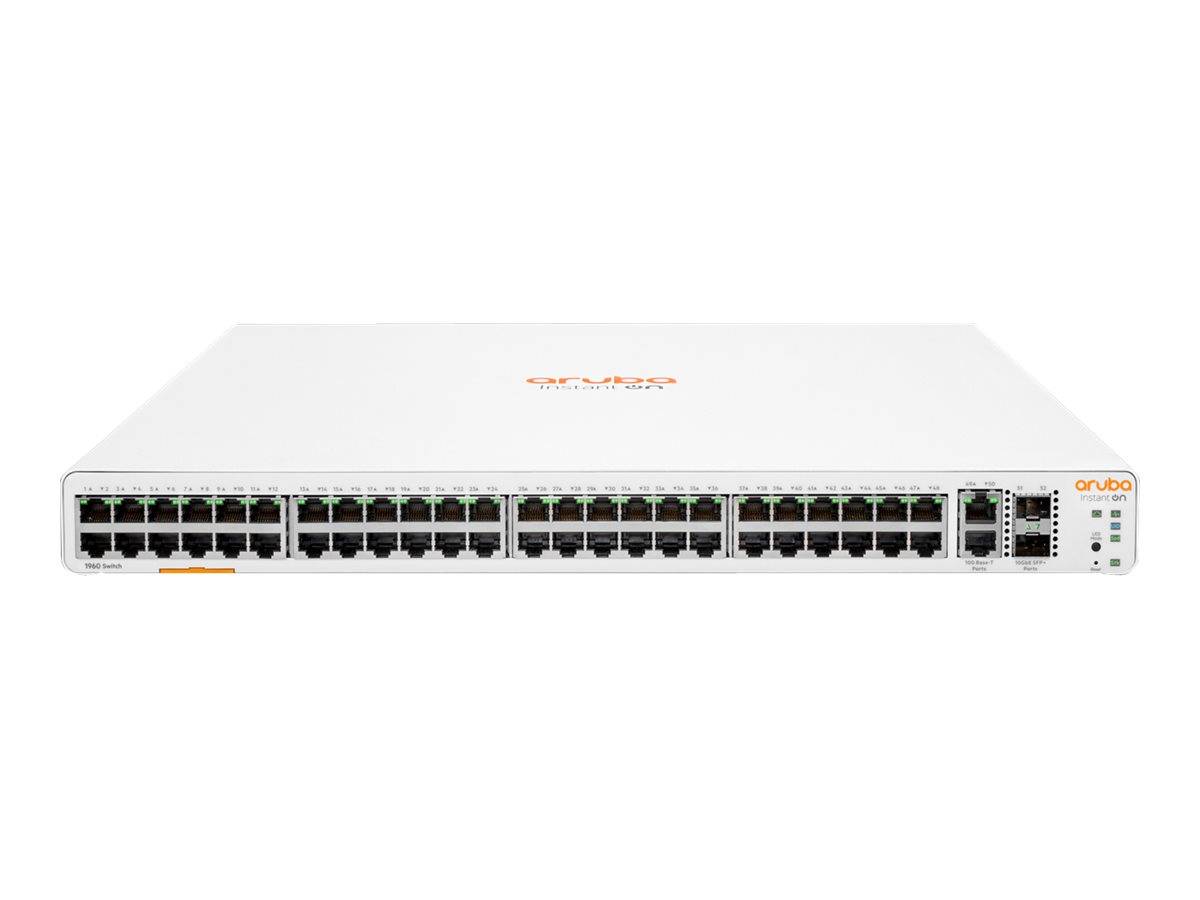

HPE Aruba Instant On 1960 48G 2XGT 2SFP+ Switch / Switch / L2+ / smart / 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet / desktop, rack-mountable | JL808A
JL808A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust performance
Equipped with a powerful 800 MHz processor and a MAC Address Table Size of 16,000 entries, this switch is designed to handle high volumes of traffic, ensuring efficient network performance and reliability. - Comprehensive connectivity
Featuring 48 RJ-45 connectors for 10/100/1000 Ethernet ports, 2 SFP+ ports for 10 Gigabit Ethernet, and 2 additional RJ-45 10 Gigabit ports, the HPE Aruba Instant On 1960 48G 2XGT 2SFP+ Switch offers extensive connectivity options for a wide range of networking needs. - Advanced networking features
Supports Access Control List (ACL), VLAN, Spanning Tree Protocol (STP), and IPv6, among others, providing the tools needed to manage traffic, enhance security, and ensure a seamless network experience. - High durability
With an MTBF of 109.4 years, this switch is built to last, offering businesses a reliable networking solution that minimizes downtime and maintenance costs. - Efficient management
Manageable via HTTP, HTTPS, SNMP, and RADIUS, this switch allows for easy configuration and monitoring, ensuring that network administrators can efficiently manage the network environment.
Special Features
- 48 RJ-45 connectors for 10/100/1000 Ethernet ports, ensuring extensive connectivity
- 2 SFP+ and 2 RJ-45 10 Gigabit ports for high-speed networking options
- Supports advanced features like ACL, VLAN, and IPv6 for enhanced network management
- 800 MHz processor and 16,000 MAC address table entries for robust performance
- Rack-mountable form factor for easy integration into existing network infrastructures
Product Specification
| Device Type | Switch - 48 ports - L2+ - smart - stackable |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet |
| Performance | Latency (100 Mbps): 4.4 µs Latency (1 Gbps): 2.2 µs Latency (10 Gbps): 1.1 µs Throughput: 131 Mpps Switching capacity: 176 Gbps |
| Capacity | IPv4 routing table entries: 32 IPv6 routing table entries: 32 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, RADIUS |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Features | Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, TPM, Cable Diagnostics Function, DHCP relay, Port Security, port based access control, DHCP client, Energy Efficient Ethernet, CoS, cloud managed, IP source guard, ICMP, dual image support, DNS client, LLDP-MED, ingress rate limiting, protected ports, BPDU Filter, WRR, ARP filtering, DSCP prioritisation, auto voice VLAN, loop protection |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| Processor | 1: 800 MHz |
| Status Indicators | Port status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 48 x Gigabit LAN RJ-45 2 x 10Gbit LAN SFP+ 2 x 10Gbit LAN RJ-45 |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 80 Watt |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| MTBF | 109.4 years |
| Compliant Standards | Plug and Play, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 62368-1 Second Edition, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, EN 55032/CISPR 32 Class A, CISPR 35, IEC 62368-1 Second Edition, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, EN/IEC 60825-1:2014 Class 4 |
| Localisation | English / Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.25 cm |
| Depth | 35.05 cm |
| Height | 4.4 cm |
| Weight | 4.4 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime Technical support - live chat - lifetime Technical support - phone consulting - 90 days from date of purchase |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (non-condensing) |
