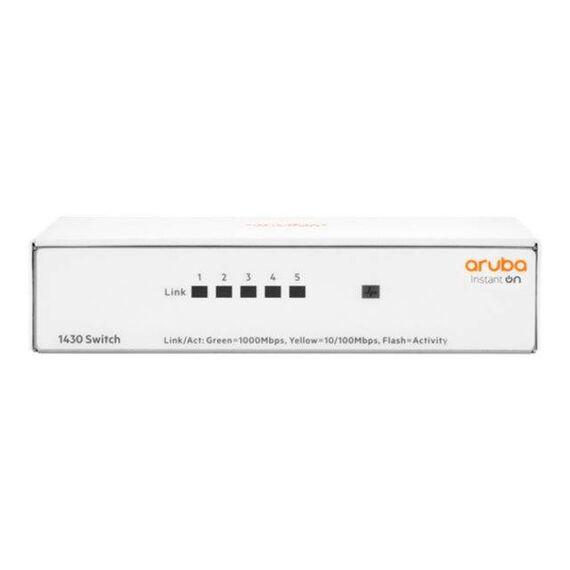

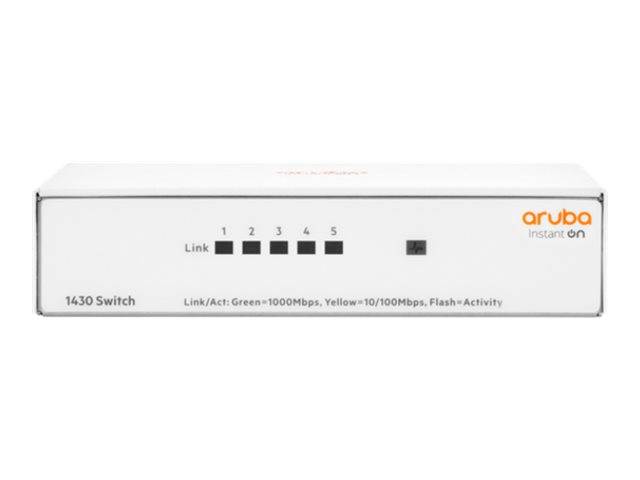

HPE Networking Instant On 1430 5G Switch / Switch / unmanaged / 5 x 10/100/1000 / desktop, wall-mountable / BTO | R8R44A
HPE Networking Instant On 1430 5G Switch / Switch / unmanaged / 5 x 10/100/1000 / desktop, wall-mountable / BTO | R8R44A
€38.79 inc. VAT
R8R44A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Efficient connectivity
The HPE Networking Instant On 1430 5G Switch is designed for optimal efficiency, featuring a 10 Gbps switching capacity and 7.44 Mpps throughput. This ensures high-speed data transfer and reliable connectivity for all connected devices. - Robust design
Built to withstand a wide range of environmental conditions, this switch operates effectively in temperatures from 0°C to 40°C and humidity levels from 15% to 95% (non-condensing), making it a durable choice for various settings. - Advanced networking features
With support for IEEE standards including 802.3az for energy efficiency and VoIP support, this switch is equipped to handle complex networks. Features like Spanning Tree Protocol (STP) support and DiffServ Code Point (DSCP) support enhance its functionality. - Compact and silent operation
The fanless design of the HPE Networking Instant On 1430 5G Switch not only ensures silent operation but also makes it suitable for desktop or wall mounting, offering flexibility in deployment. - Comprehensive standards compliance
This switch meets a wide array of compliance standards, including FCC, IEC, and EN, ensuring it meets global regulatory requirements and is compatible with a broad range of networking equipment.
Special Features
- 10 Gbps switching capacity for efficient data handling
- Fanless design for silent operation
- Supports IEEE 802.3az for energy efficiency
- Operates in a wide range of temperatures and humidity levels
- Compliant with multiple global standards for broad compatibility
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Performance | Throughput: 7.44 Mpps Switching capacity: 10 Gbps Latency (100 Mbps): 3.81 µs Latency (1 Gbps): 0.93 µs |
| Capacity | MAC address entries: 8192 |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Flow control, auto-sensing per device, MDI/MDI-X switch, wall mountable, STP support, fanless, 1MB packet buffer, VoIP support, DSCP support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| RAM | 2 KB EEPROM |
| Status Indicators | Port status, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x 10/100/1000 Base-T RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Electric Current Required | 1 A |
| Power Consumption Stand by | 1 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 525.8 years |
| Compliant Standards | EN 61000-3-2, IEC 61000-3-2, ICES-003 Class B, VCCI Class B, FCC CFR47 Part 15 B Class B, AS/NZS CISPR 32 Class B, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, CNS 13438 Class B, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, UL 62368-1, EN 55032:2015 Class B, EN 55035, CISPR 35, CISPR 32:2015 Class B, IEC/EN 61000-3-3, IEC/EN 60825-1:2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, KS C 9835, KS C 9832 Class B |
| Pricing Type | BTO |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.6 cm |
| Depth | 9.3 cm |
| Height | 2.6 cm |
| Weight | 270 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime Technical support - live chat - lifetime Technical support - phone consulting - 90 days from date of purchase |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 90% (non-condensing) |
Features - Hewlett Packard - R8R44A
More Details
Product Code
09:R8R44A
EAN Code
0190017600987
Manufacturer
Hewlett Packard
