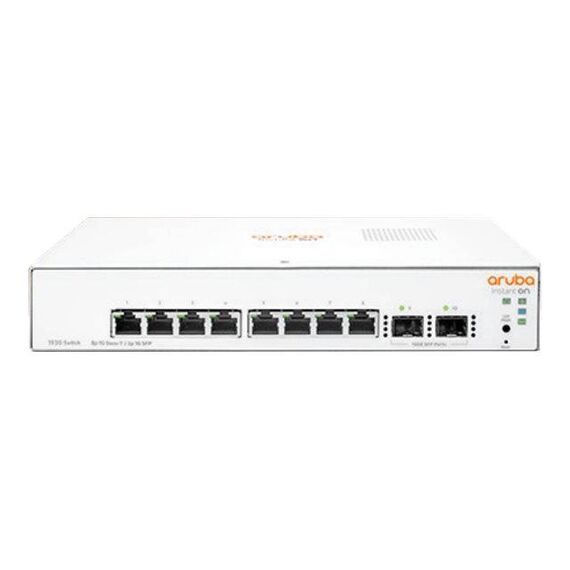

HPE Networking Instant On 1930 8G 2SFP Switch / Switch / L3 / Managed / 8 x 10/100/1000 + 2 x Gigabit SFP / desktop | JL680A

HPE Networking Instant On 1930 8G 2SFP Switch Switch L3 JL680A
HPE Networking Instant On 1930 8G 2SFP Switch / Switch / L3 / Managed / 8 x 10/100/1000 + 2 x Gigabit SFP / desktop | JL680A
€172.07 inc. VAT
Buy
JL680A
144.60
172.07 inc. VAT
Available on order: 4 item(s)
Standard DeliveryStandard delivery within 2 to 3 business days.
Product Code09:JL680A EAN Code0190017355009 ManufacturerHewlett Packard
Delivery
Payment options

Product Features

  • Enhanced security
    With RADIUS authentication and SSL encryption, the HPE Networking Instant On 1930 8G 2SFP Switch ensures secure network access and data transmission, providing peace of mind for sensitive business operations.
  • Optimized performance
    Featuring a switching capacity of 20 Gbps and support for up to 14.88 Mpps throughput, this switch is designed to handle high-volume traffic efficiently, minimizing latency and maximizing productivity.
  • Robust connectivity
    Equipped with 8 10/100/1000 Base-T ports and 2 Gigabit SFP ports, the switch offers versatile connectivity options for a variety of network configurations, supporting both copper and fiber connections.
  • Advanced networking features
    Support for Layer 3 switching, VLANs, link aggregation, and Quality of Service (QoS) enables complex network architectures and traffic management, ensuring reliable and efficient network performance.
  • Durable and reliable
    With a mean time between failures (MTBF) of 178 years and compliance with multiple safety and environmental standards, this switch is built to last, offering a reliable networking solution for businesses.

Special Features

  • Secure network access with RADIUS authentication and SSL encryption
  • 20 Gbps switching capacity for high-volume traffic management
  • 8 RJ-45 and 2 SFP ports for flexible connectivity options
  • Layer 3 switching and VLAN support for advanced network configurations
  • Energy Efficient Ethernet for reduced power consumption

Product Specification

Device Type Switch - 10 ports - L3 - Managed
Enclosure Type Desktop
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 + 2 x Gigabit SFP
Performance Switching capacity: 20 Gbps Throughput: 14.88 Mpps Latency (100 Mbps): 5.2 µs Latency (1 Gbps): 3 µs
Capacity Link aggregation ports: 8 IPv4 routes (static): 32 VLANs supported: 256 Access Control Entries (ACEs) per ACL: 480 Packet buffer size: 1.5 MB
MAC Address Table Size 8000 entries
Jumbo Frame Support 9216 bytes
Routing Protocol Static IP routing
Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Encryption Algorithm SSL
Authentication Method RADIUS
Features Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor 1 x ARM Cortex-A9: 800 MHz
RAM 512 MB SDRAM
Flash Memory 256 MB
Status Indicators Port status, power
Expansion / Connectivity Expansion / Connectivity
Interfaces 8 x 10/100/1000 Base-T RJ-45 2 x Gigabit LAN SFP
Power Power
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 11 Watt
Miscellaneous Miscellaneous
MTBF 178 years
Compliant Standards VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 60825-1, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, EN 55032:2015+AC:2016, CISPR 35, SSL, IEC 62368-1: 2014 Second Edition, EN 55035:2017
Dimensions & Weight Dimensions & Weight
Width 25.4 cm
Depth 15.95 cm
Height 4.39 cm
Weight 820 g
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 15 - 95% (40 °C)
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
Humidity Range Storage 15 - 95% (60 °C)

Features - Hewlett Packard - JL680A

More Details
Product Code
09:JL680A
EAN Code
0190017355009
Manufacturer
Hewlett Packard
