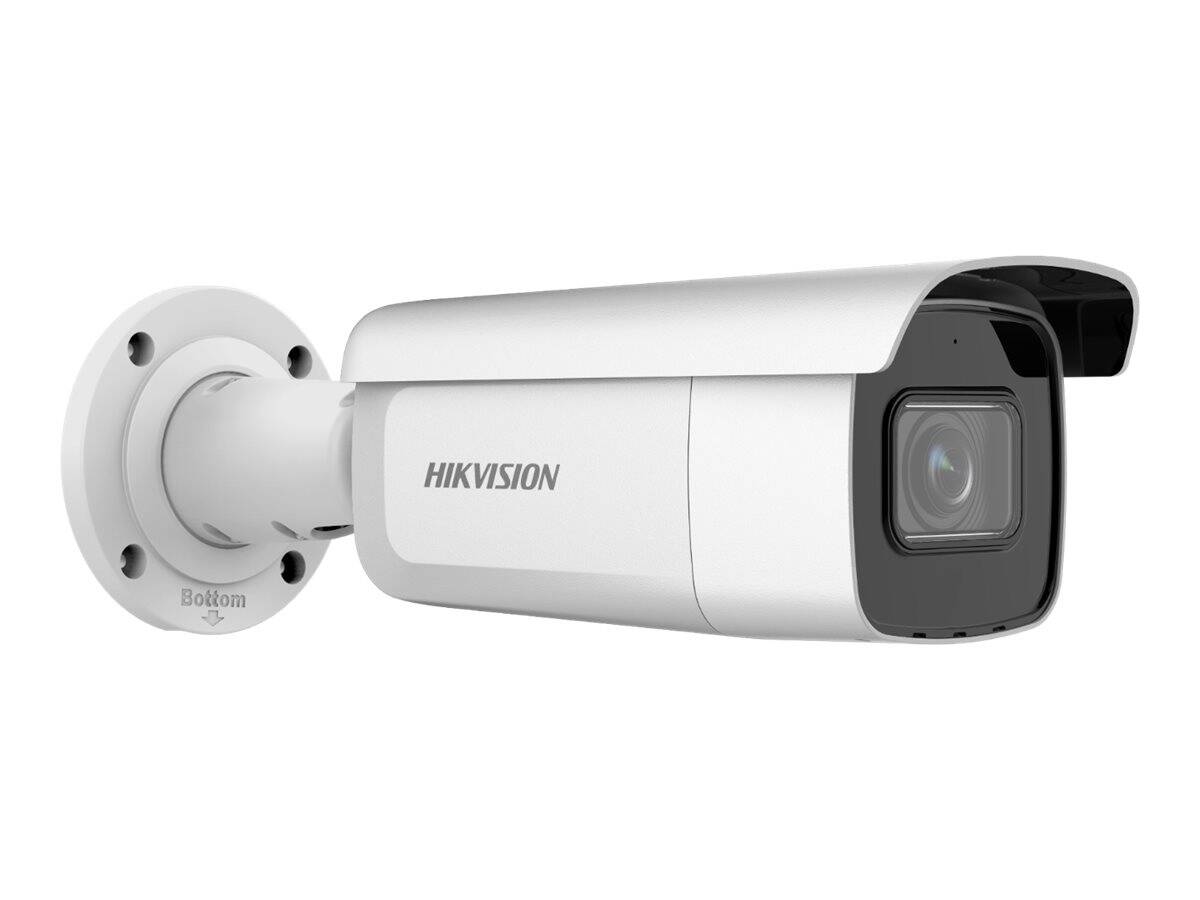

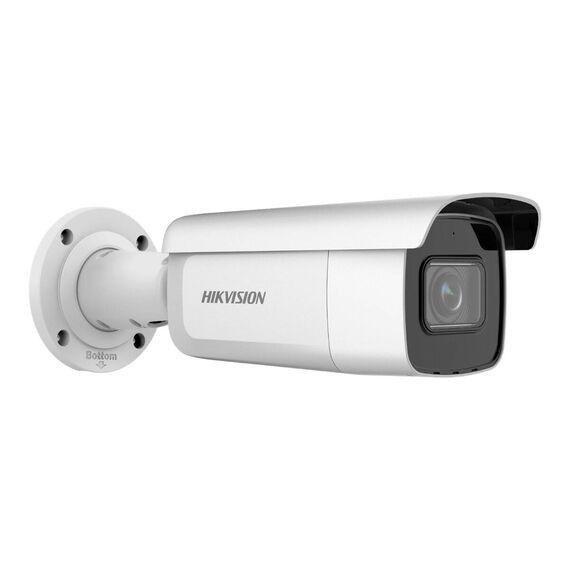

Hikvision Pro Series DS-2CD2643G2-IZS - Network surveillance camera - bullet - dustproof / waterproof / vandal-proof - colour (Day&Night) - 4 MP - 2688 x 1520 - f14 mount - fixed iris - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265, H.265+, H.264+,
Please sign in so that we can notify you about a reply
Special Fetures
- High-quality imaging with 4MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Clear imaging against strong backlight due to 120dB WDR technology
- Efficient H.265+ compression technology
- Water- and dust-resistant (IP67) and vandal-resistant (IK10)
- Focus on human and vehicle targets classification based on deep learning
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | AAC, PCM, G.726, MP3, G.722.1, MP2L2, G.711a, G.711u |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 9.79 cm |
| Depth | 30.85 cm |
| Height | 9.3 cm |
| Weight | 1.39 kg |
| Camera | |
| Type | Colour - Day&Night - fixed - dustproof / waterproof / vandal-proof |
| Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+, H.264B, H.264H, H.264M |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Minimum Illumination | 0.005 lux - colour - F1.6 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 60 m |
| Video Capture | 2688 x 1520, 50 Hz @ 25 fps ¦ 1280 x 720, 50 Hz @ 25 fps ¦ 1920 x 1080, 50 Hz @ 25 fps ¦ 1920 x 1080, 60 Hz @ 30 fps ¦ 1280 x 720, 60 Hz @ 30 fps ¦ 2688 x 1520, 60 Hz @ 30 fps |
| Features | Manual white balance, Backlight Compensation (BLC), sharpness control, digital image rotation, saturation control, brightness control, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Highlight Compensation (HLC), NAS-Ready, tamper-detection, notification picture to FTP, reset button, password protection, triple video stream, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, infrared-cut filter, Line Crossing Detection, heartbeat, anti-flicker, Vehicle Detection, IP address filtering, 3D digital noise reduction (DNR), human detection, environment noise filtering, aluminium housing, human and vehicle filtering, up to 6 channels simultaneous live view, Automatic Network Replenishment (ANR), Scalable Video Coding (SVC), smart supplement light, Gain Control, AcuSense technology, 2001m detect distance, 79.4m observe distance, 40m recognise distance, 20m identify distance |
| Image Sensor | |
| Type | 4 MP PS CMOS 1/3" |
| Lens Construction | |
| Type | F14 mount - motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | Fixed iris |
| Horizontal Field of View (degree) | 29.2 - 95.8 |
| Vertical Field of View (degree) | 16.4 - 50.6 |
| Diagonal Field of View (degree) | 33.4 - 114.6 |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 90 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, PPPoE, SMB, IGMP, SSL, QOS, CIFS, NFS, ISAPI, SDK |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line out - terminal block ¦ Audio line in - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | CB, EMC, IC, UL 60950-1, FCC CFR47 Part 15 B, REACH, IP67, IK10, LVD, KC, RCM, RoHS 2011/65/EU, BIS, EN 61000-3-3:2013, Regulation EC 1907/2006, TLS v1.2, TLS v1.1, WEEE 2012/19/EU, EN 61000-3-2:2014, EN 55032:2015, IEEE 802.3at, IS13252-1 (2010)/A1:2013/A2:2015, IEEE 802.1x, AS/NZS CISPR 32:2015, EN 50130-4:2011+A1:2014, KN32:2015, KN35:2015, IEC 60529:2013, IEC 62262:2002, IEC60950-1:2005+Am1:2009+Am2:2013, EN 60950-1:2005+Am1:2009+Am 2:2013, ICES-003 issue 6:2016 |
| Power | |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 38.5 cm |
| Shipping Depth | 19 cm |
| Shipping Height | 18 cm |
| Shipping Weight | 1.961 kg |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - Hikvision - DS-2CD2643G2-IZS(2.8-12MM)
More Details
Product Code
04:375938
EAN Code
6941264073741
Manufacturer
Hikvision
