HGST Travelstar Z5K500 HTS545050A7E680 / Hard drive / 500 GB / internal / 2.5" / SATA 6Gb/s / 5400 rpm / buffer: 8 MB / RoHS, REACH, halogen-free | 0J38065
Please sign in so that we can notify you about a reply
HGST Travelstar Z5K500 HTS545050A7E680 / Hard drive / 500 GB / internal / 2.5" / SATA 6Gb/s / 5400 rpm / buffer: 8 MB / RoHS, REACH, halogen-free | 0J38065
|

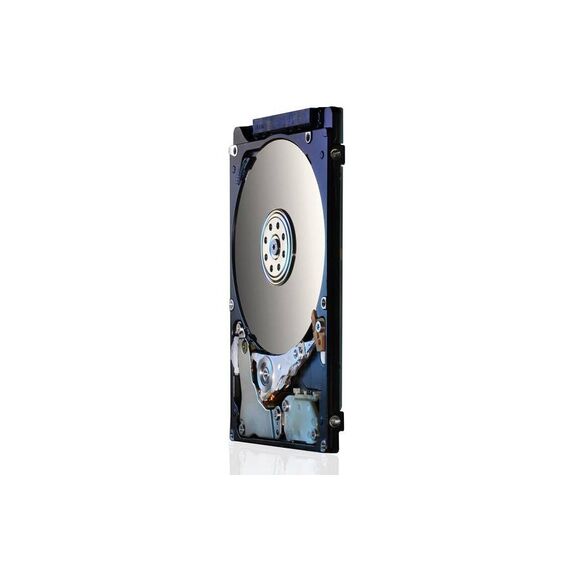

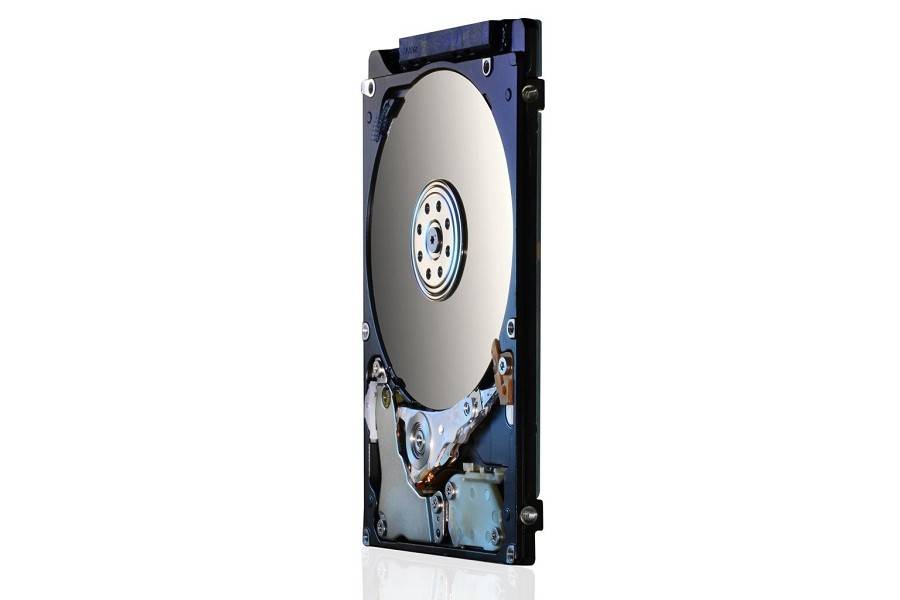

Description Travelstar Z5K500 is the 5400 RPM 2.5-inch hard drive from Hitachi, with high capacity, and the Advanced Format drive. Advanced Format increases the physical sector size on HDDs from 512 bytes to 4,096 bytes, which improves drive capacities and error correction capabilities. The Z5K500 carries the EcoTrac classification due to its low-power consumption and eco-friendly, halogen-free production. Travelstar Z5K500 delivers the right balance of capacity, power-management and design flexibility to meet the needs of mobile applications. Special Features
|
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 500 GB |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 8 MB |
| Bytes per Sector | 512 |
| Features | TrueTrack servo technology, rugged, Advanced Format technology (2nd generation) |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 95 g |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 136 MBps |
| Seek Time | 13 ms (average) / 25 ms (max) |
| Track-to-Track Seek Time | 1 ms |
| Average Latency | 5.5 ms |
| Spindle Speed | 5400 rpm |
| Start / Stop Cycles | 600,000 |
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| Compatible Bay | 2.5" |
| Power Consumption | 4.5 Watt (start) ¦ 1.6 Watt (read) ¦ 1.6 Watt (write) ¦ 0.8 Watt (active idle) ¦ 0.2 Watt (stand by) ¦ 0.1 Watt (sleep) ¦ 0.55 Watt (low power idle) ¦ 1.5 Watt (performance idle) |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft's assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | RoHS, REACH, halogen-free |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Shock Tolerance | 400 g @ 2ms half-sine pulse |
Features - Hitachi - 0J38065
Form Factor
- 2.5"
- Internal
Capacity
500GB
Interface
- SATA
More Details
Product Code
03:103818
Manufacturer
Hitachi
