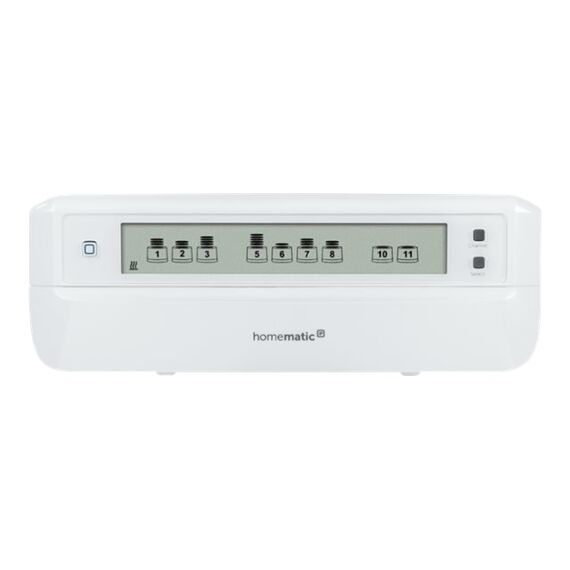

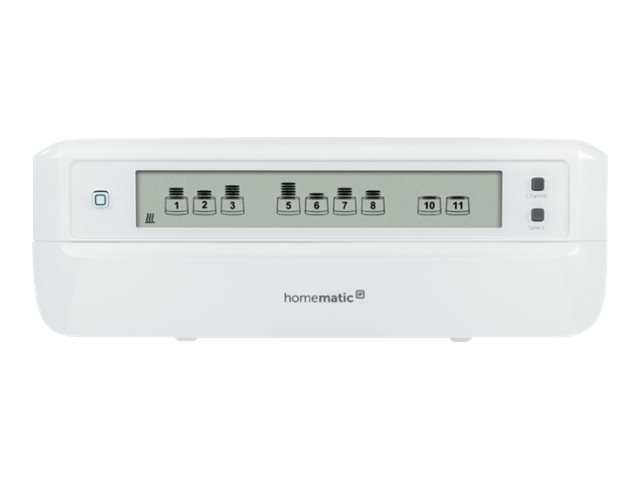

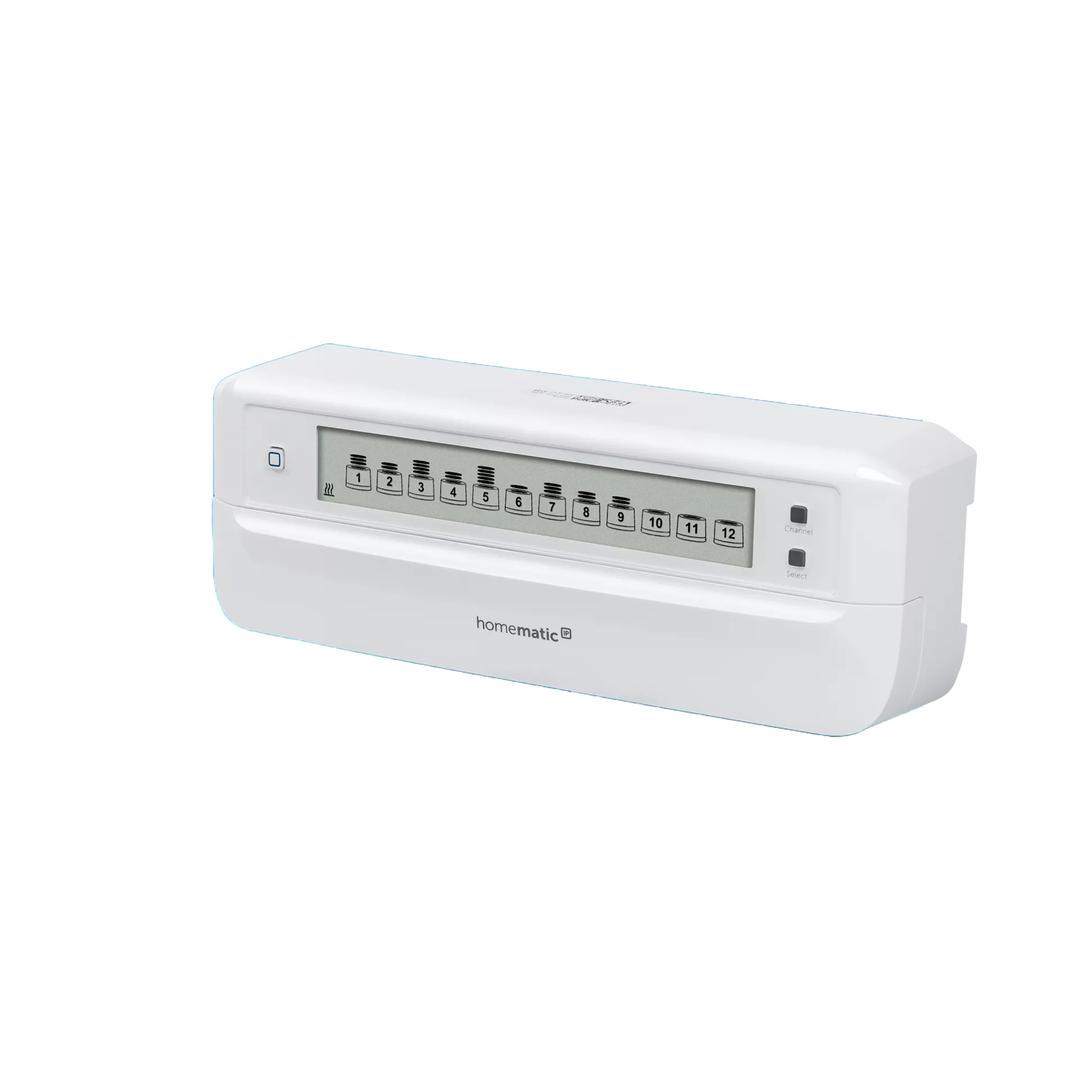

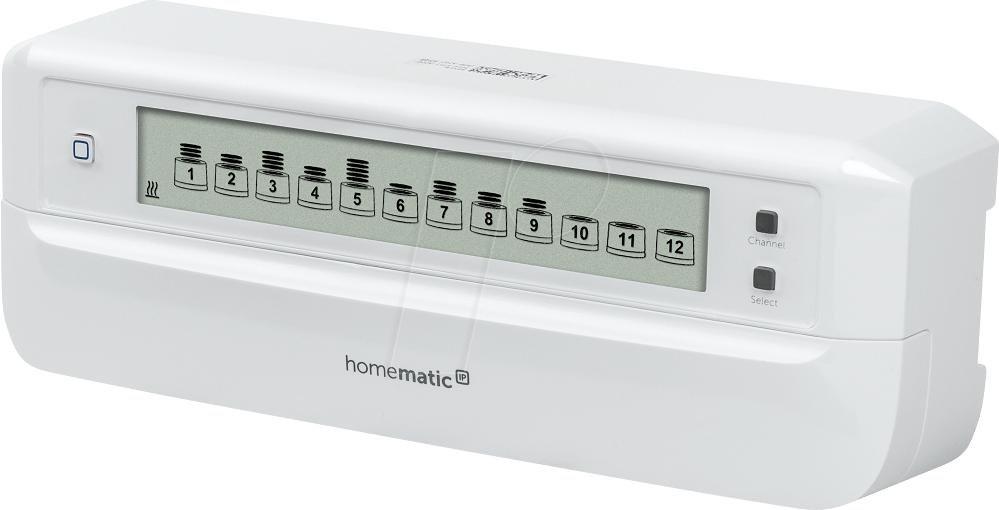

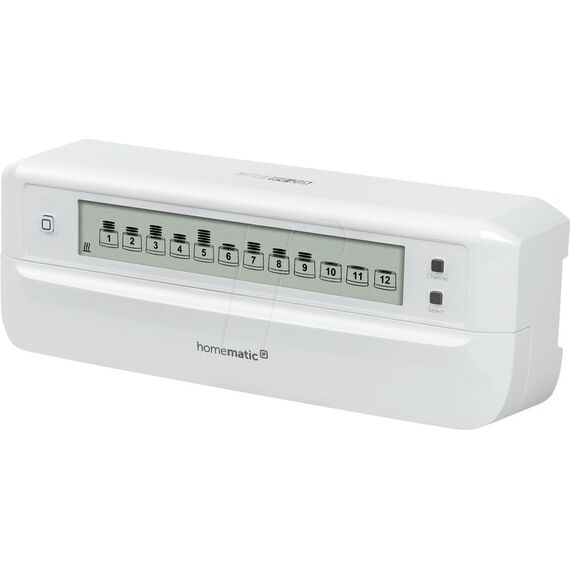

Homematic IP HmIP-FALMOT-C12 - Floor heating actuator - wireless - 868 - 868.6 MHz, 869.4 - 869.65 MHz | 153621A0
Please sign in so that we can notify you about a reply
Special Fetures
- Instead of common 3 to 5 W per heating circuit, the continuous regulation only requires 0.2 W for the temperature control in the entire house
- Efficient utilization of the heating system and precise temperature control also in case of low heating demand
- Tool-free installation via plug connections with polarity reversal protection and snap-on connection of valve drives
- Automatic detection of the valve position and travel for easier installation
- Adaptive control works with automatic, thermal balancing
- Large, illuminated LC display clearly shows all valve positions
- Individual temperature profiles with up to 13 changes per day in 6 adjustable heating profiles (3x heating/3x cooling)
- Suitable for all kinds of water-based floor heatings
Product Specification
| Product Type | Floor heating actuator |
| Functions | Control heating systems, control cooling systems |
| Connectivity Technology | Wireless |
| Max Range Open Space | 320 m |
| Frequency Band | 868 - 868.6 MHz, 869.4 - 869.65 MHz |
| Display | LCD |
| Features | DIN rail mountable, 12 channels, surface mountable, motorised |
| Miscellaneous | |
| Included Accessories | Mounting kit, power cable |
| Nominal Voltage | AC 230 V / DC 24 V |
| Compliant Standards | IP20 |
| Dimensions & Weight | |
| Width | 24.2 cm |
| Depth | 5.2 cm |
| Height | 8.5 cm |
| Weight | 440 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 18.4 cm |
| Shipping Depth | 28.1 cm |
| Shipping Height | 9.7 cm |
| Shipping Weight | 917 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
Features - homematic - 153621A0
More Details
Product Code
07:250695
EAN Code
4047976536214
Manufacturer
homematic
