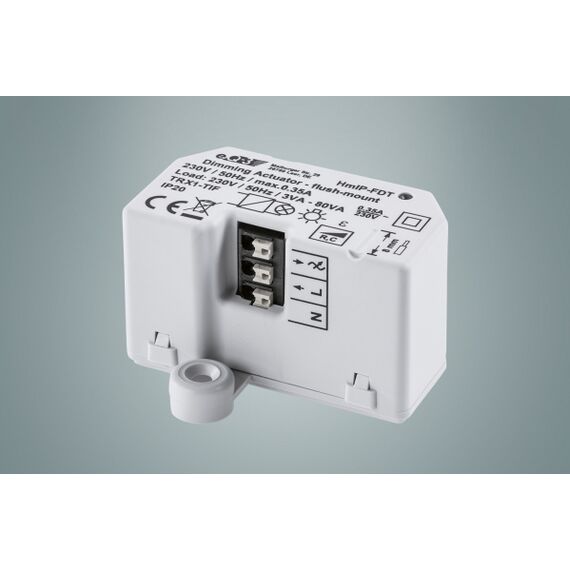

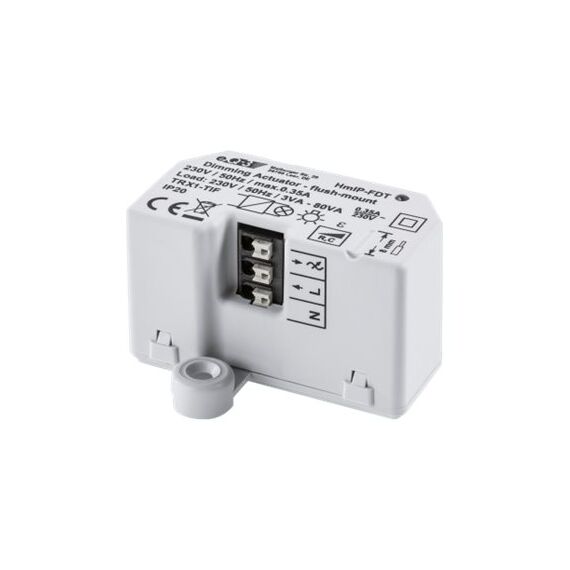

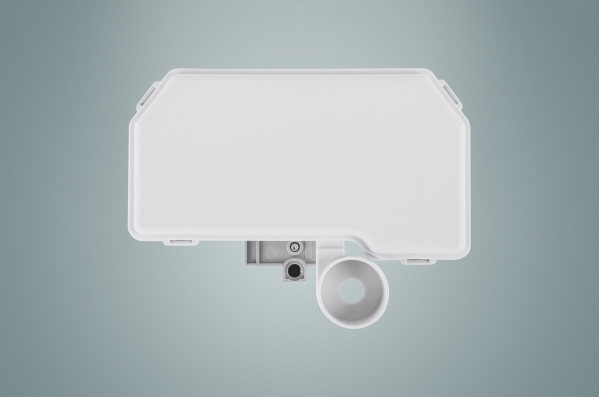

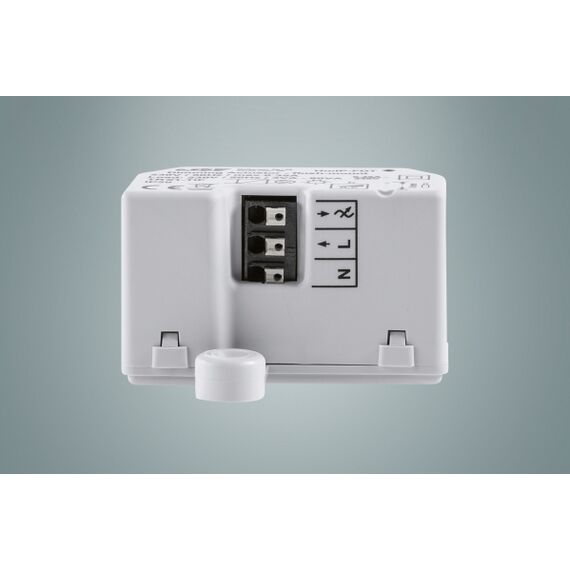

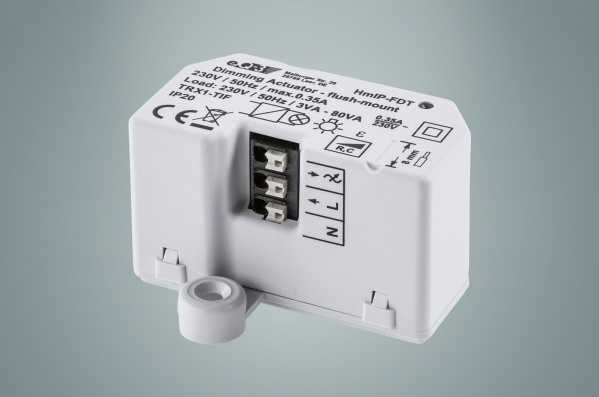

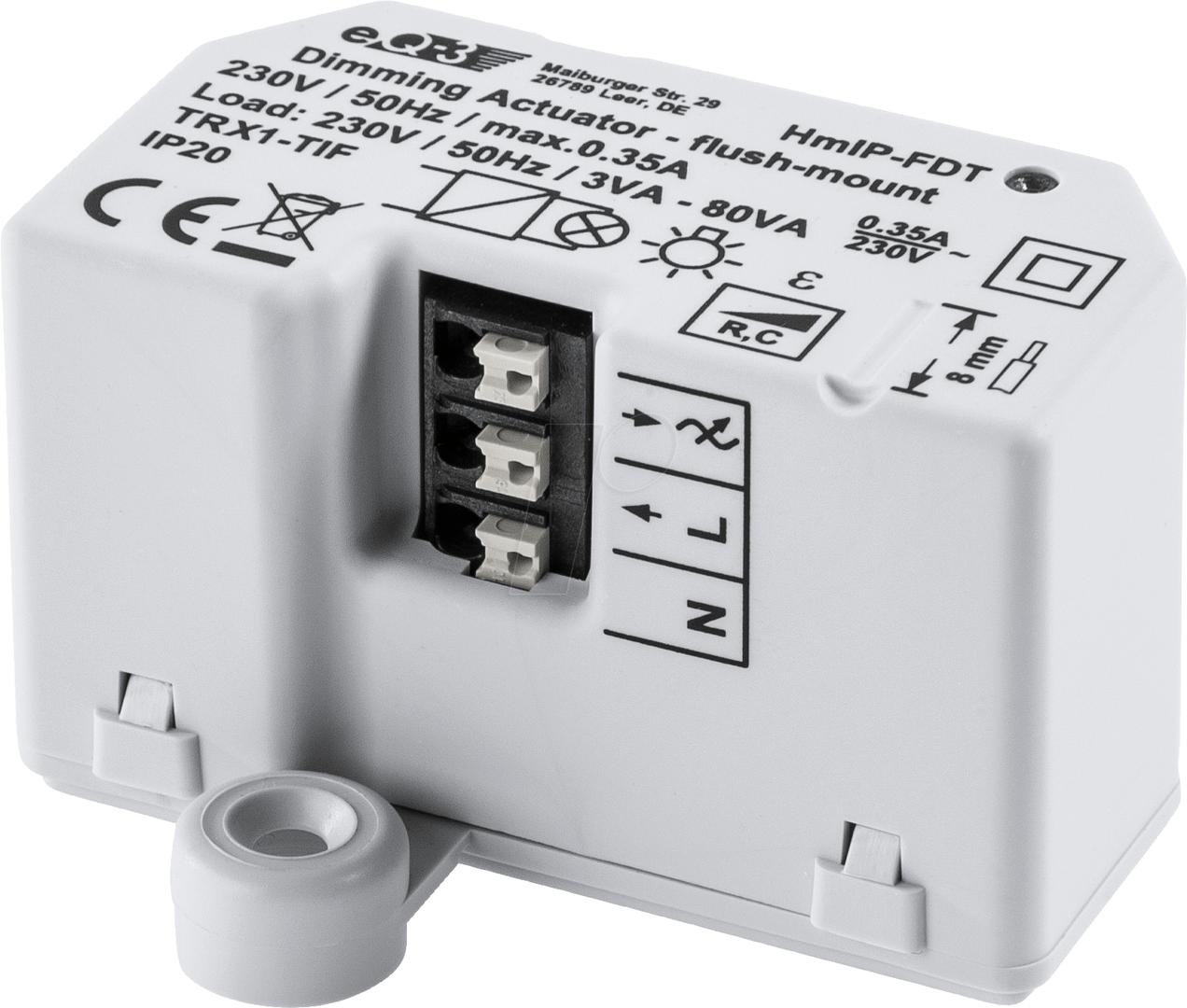

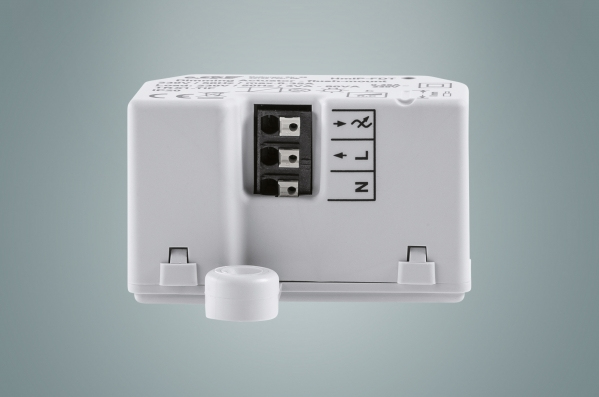

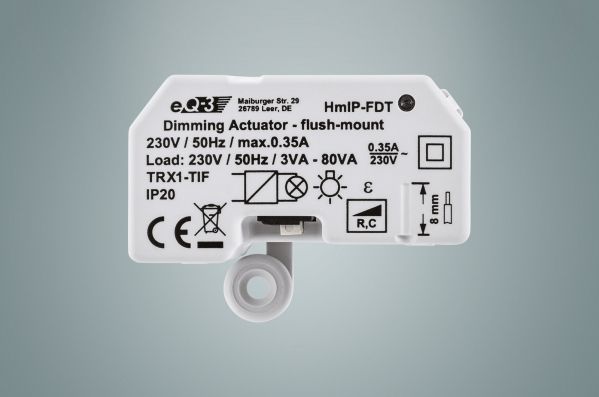

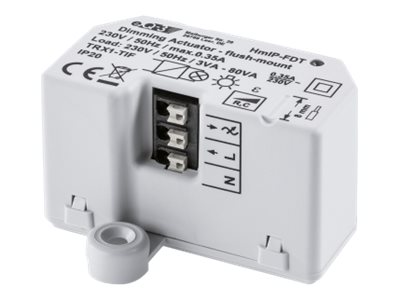

Homematic IP HmIP-FDT - Dimming actuator - wireless - 868.3 MHz, 869.525 MHz | 150609A0
Please sign in so that we can notify you about a reply
Special Fetures
- Optimized for modern light sources and therefore ideal for small loads
- Modern, fully electronic trailing edge dimmer for quiet operation without noise emission
- The Homematic IP app offers infinitely variable dimming of connected lights in 0.5 percent steps
- Low current consumption
- Compact design offers easy installation in flush-mounted boxes or in surface-mounted junction boxes for operation in basements or outdoor areas
- Easy to install thanks to screwless clamps
- Comfortable control via Homematic IP app and via Homematic IP Remote Control
- Comfortable and individual voice control
Product Specification
| Product Type | Dimming actuator |
| Power Source | Hardwired |
| Connectivity Technology | Wireless |
| Max Range Open Space | 180 m |
| Frequency Band | 868.3 MHz, 869.525 MHz |
| Features | Flush mountable, up to 80 VA |
| Miscellaneous | |
| Nominal Voltage | AC 230V |
| Compliant Standards | IP20 |
| Dimensions & Weight | |
| Width | 5.4 cm |
| Depth | 4.1 cm |
| Height | 3.3 cm |
| Weight | 31 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.2 cm |
| Shipping Depth | 11.2 cm |
| Shipping Height | 4.8 cm |
| Shipping Weight | 117.4 g |
| Environmental Parameters | |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
Features - homematic - 150609A0
More Details
Product Code
07:251787
EAN Code
4047976506095
Manufacturer
homematic
