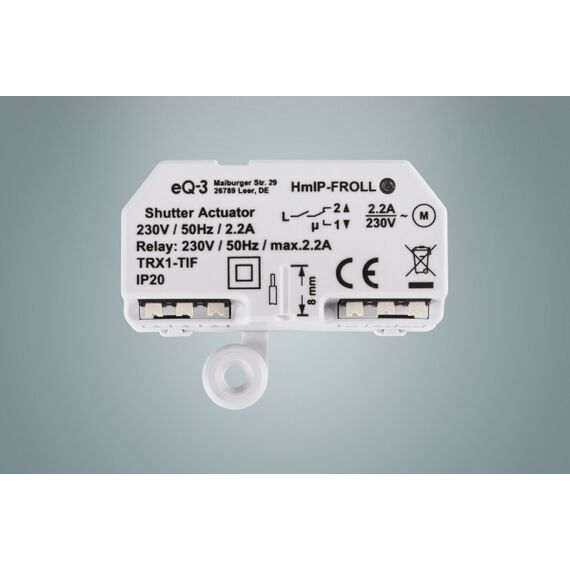

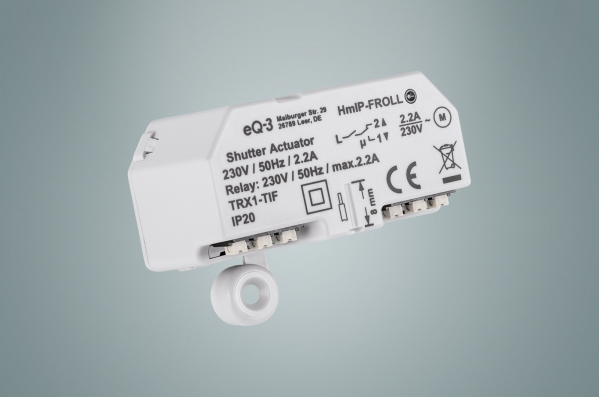

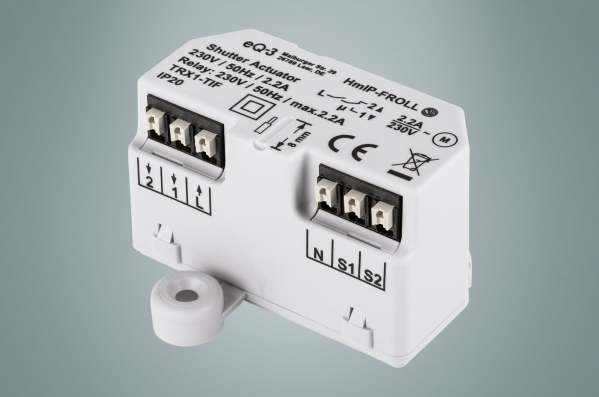

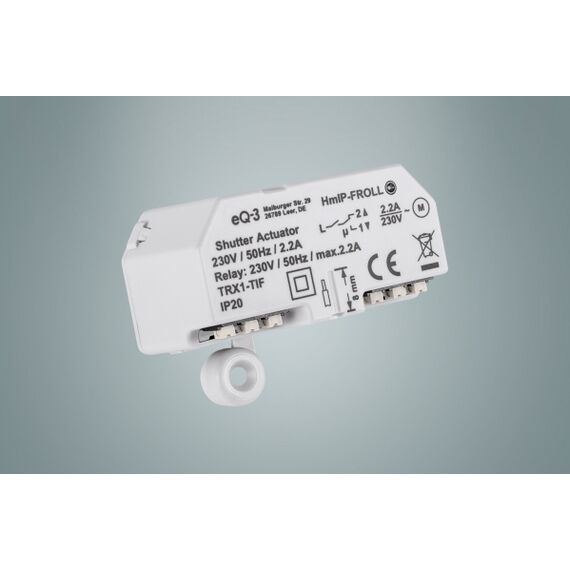

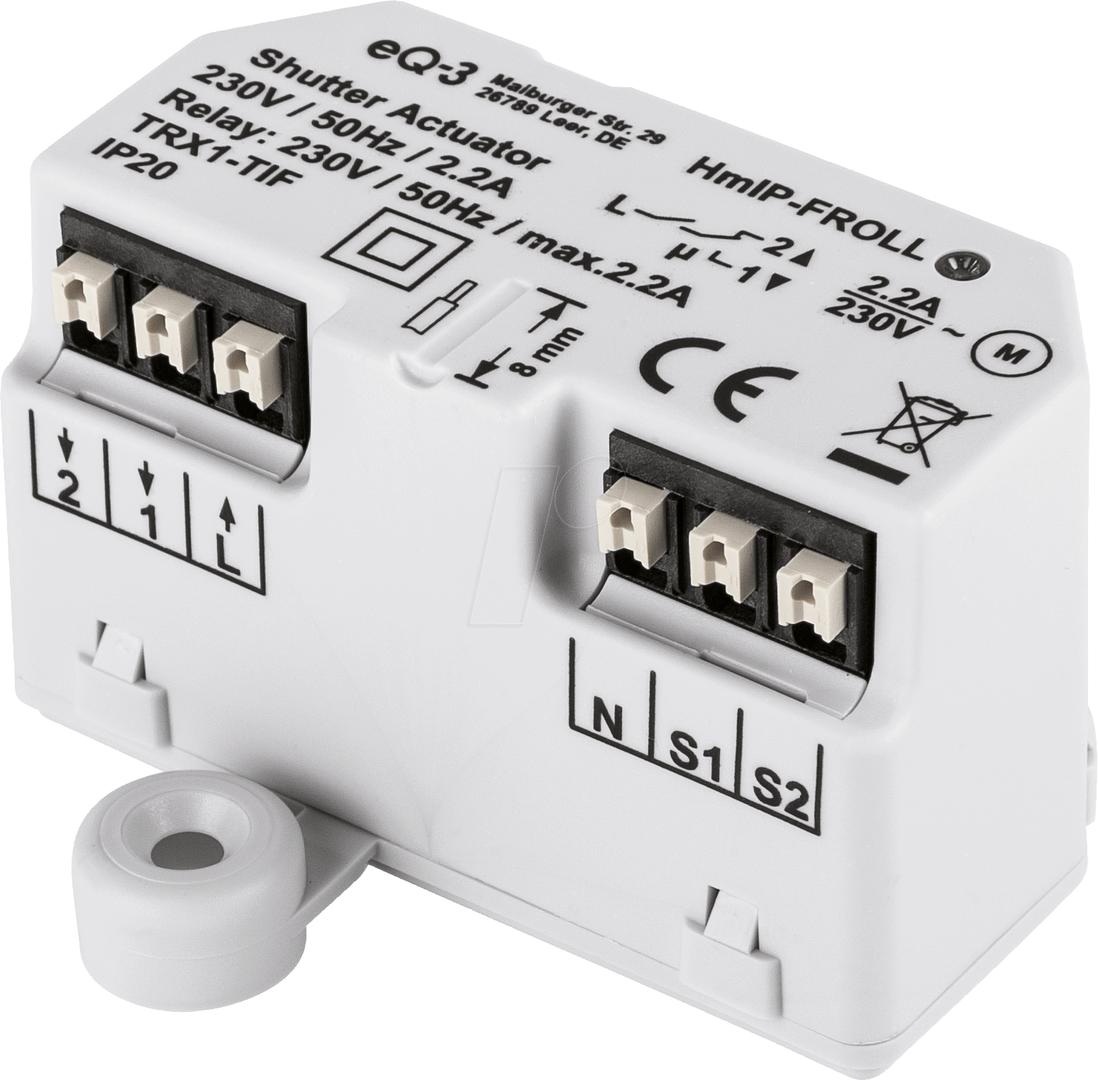

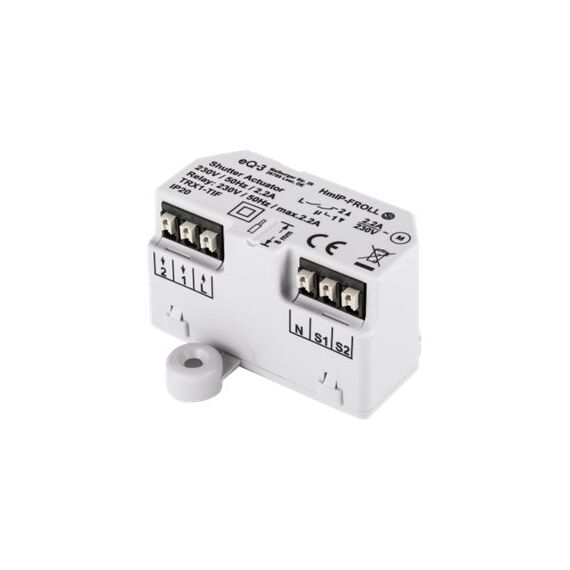

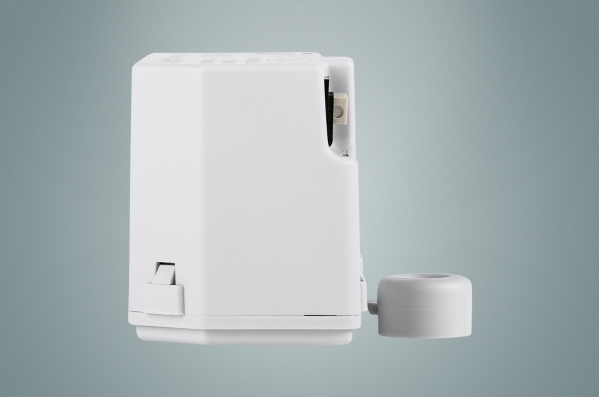

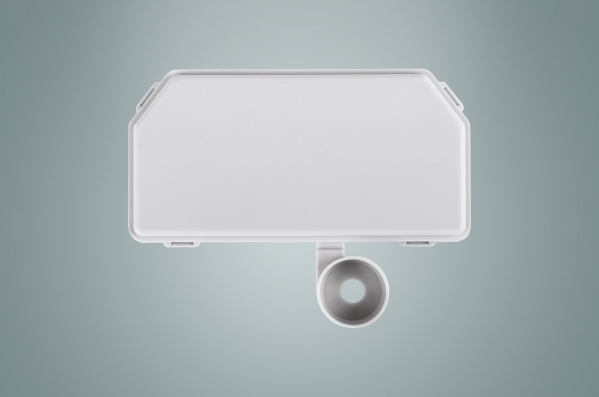

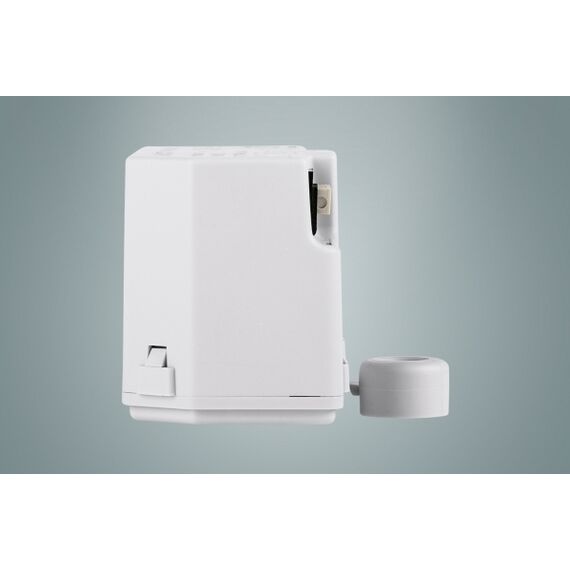

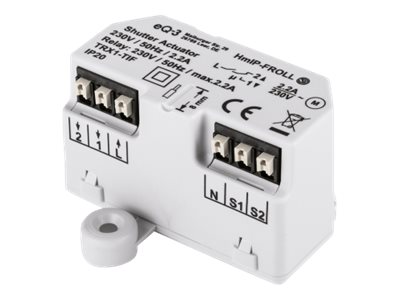

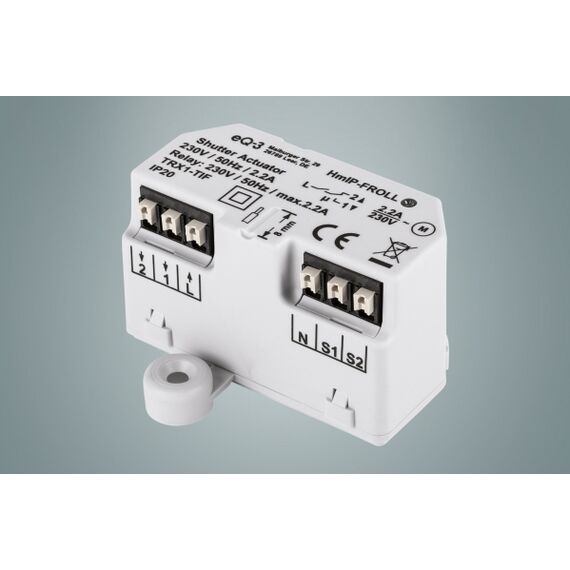

Homematic IP HmIP-FROLL - Shutter actuator - wireless - 868 - 868.6 MHz, 868.65 - 869.4 MHz | 151347A0
Please sign in so that we can notify you about a reply
Special Fetures
- Comfortable operation via Homematic IP app and via Homematic IP Remote Control
- With individually configured week profiles, shutters/awnings can be moved up and down in a time-controlled manner
- Comfortable control dependent on sunrise and sunset
- Lock-out, storm and heat protection can be realized in combination with the Homematic IP app and additional components
- Easy to install with automatic calibration drive
- Suitable for all standard tube motors

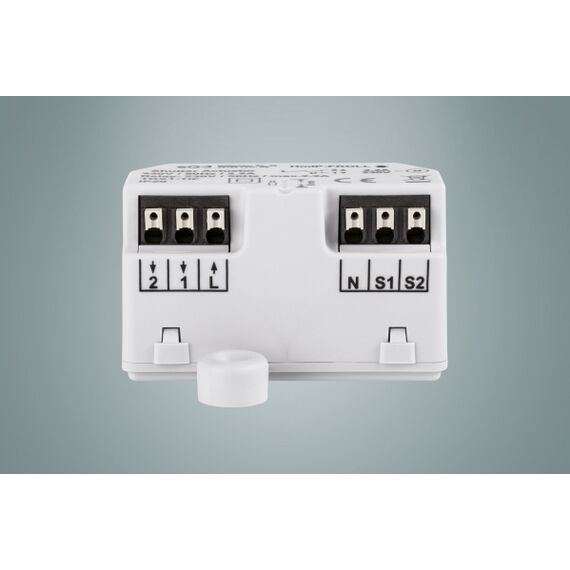

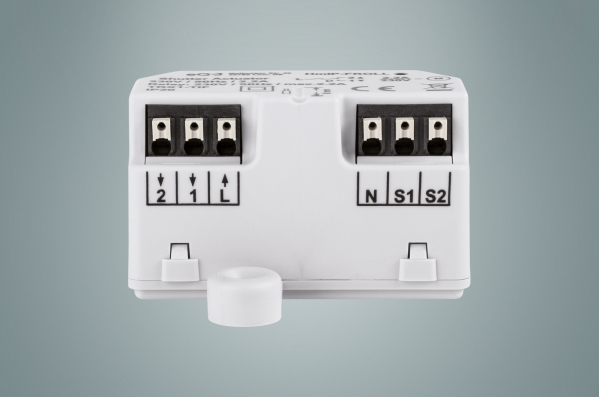

- Supports connection of two standard push-buttons via screwless clamps for local operation
- Compact design offers easy installation in flush-mounted boxes or in surface-mounted junction boxes (e.g. ELS Spelsberg Abox 25) e.g. for operation in basements
- Easy to install thanks to screwless clamps
- A neutral conductor is required for installation
Product Specification
| Product Type | Shutter actuator |
| Power Source | Hardwired |
| Connectivity Technology | Wireless |
| Max Range Open Space | 180 m |
| Frequency Band | 868 - 868.6 MHz, 868.65 - 869.4 MHz |
| Features | Flush mountable, up to 500 VA |
| Internet of Things (IoT) | |
| Interfaces | 2 x relay |
| Miscellaneous | |
| Nominal Voltage | AC 230V |
| Compliant Standards | IP20 |
| Dimensions & Weight | |
| Width | 5.4 cm |
| Depth | 4.1 cm |
| Height | 3.3 cm |
| Weight | 40 g |
| Environmental Parameters | |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
Features - homematic - 151347A0
More Details
Product Code
07:251790
EAN Code
4047976513475
Manufacturer
homematic
