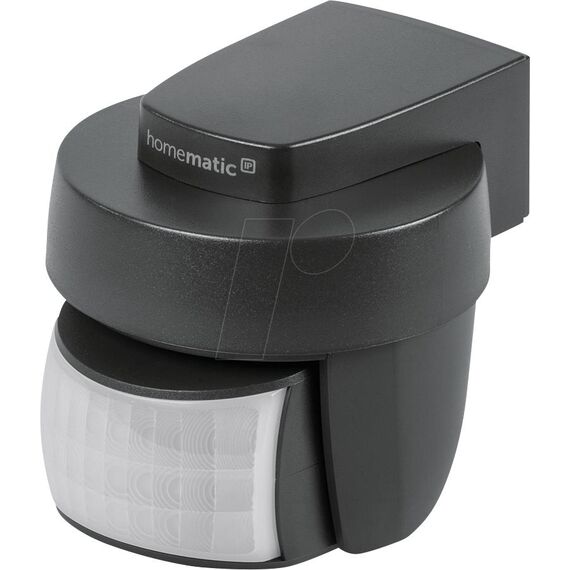

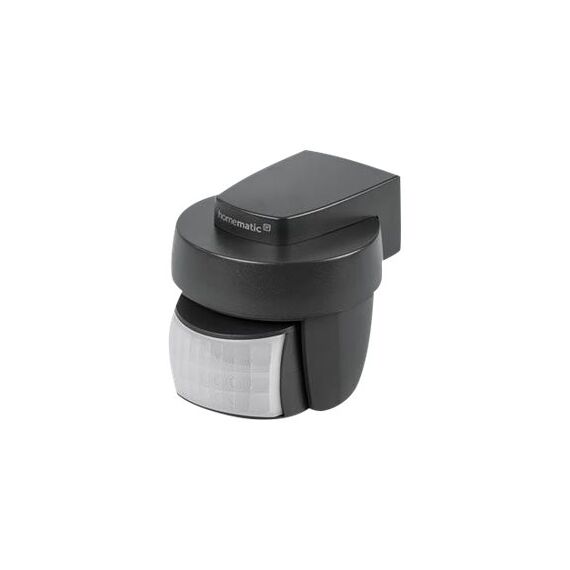

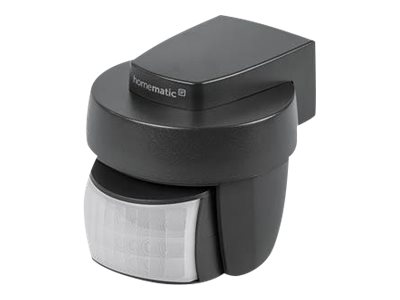

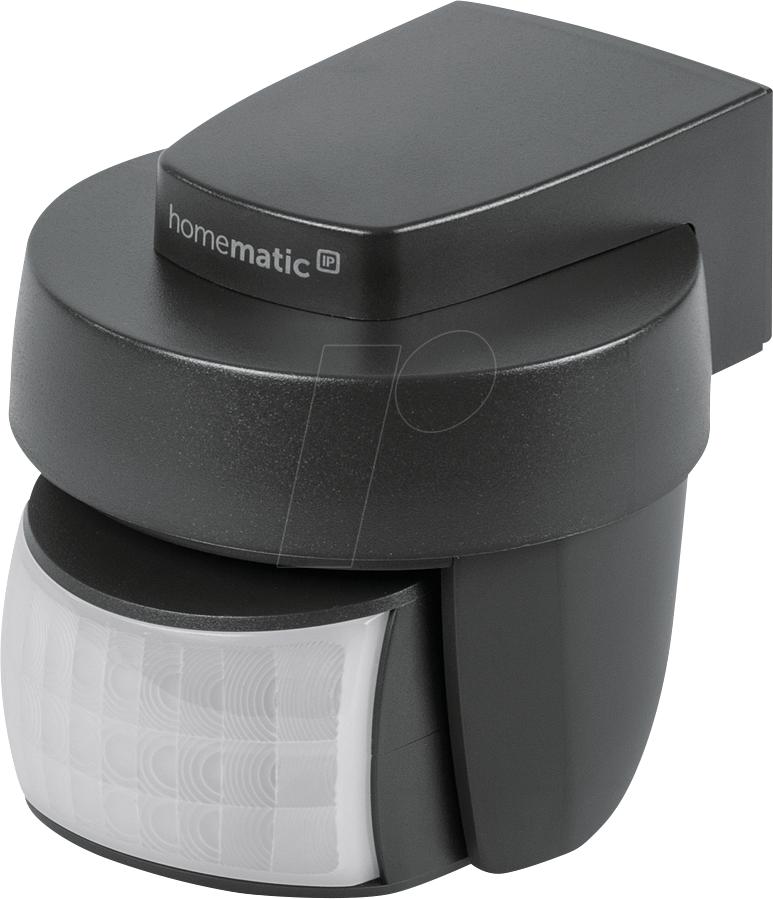

Homematic Motion detector with brightness sensor – outdoor, anthracite | 156227A0
Product Features
- Powerful during the day and night
The high-performance lens with a detection range of up to 12 m immediately detects movements, ensuring smart and reliable motoring of outdoor areas. The 360° rotating sensor allows for exact monitoring of desired areas. The integrated brightness sensor makes precise switching of lights possible, no matter if in the dark or at dusk. Even on cloudy days the sensor can exactly differentiate the brightness values. Brief changes in the level of brightness are filtered out. - All the information at a glance
The Homematic IP app provides a current overview of the smart home to ensure a secure feeling even when you are on the move. If motion is detected while the protection mode is activated, a push-notification is sent to the users' smartphone immediately. Also, an alarm message is displayed via app. - Flexible mounting without cabling
Battery operation and radio communication offer installation of the device at any installation site. Thanks to the wide temperature range of -20 to +55 °C and the weatherproof housing (IP44), the motion detector offers installation in outdoor areas or garages, for example. - Fail-safe and reliable
Alarms are triggered even without Internet or cloud connection due direct communication between the devices. Even if the Access Point is destroyed, by a burglar for example, the other devices remain active. - Extra-long battery life
With two mignon-batteries, a battery life of typically 6 years is achieved, offering low-maintenance work for the device. - Adjustment of triggering behavior
Both the brightness values as well as the switch-on time can be set individually via the Homematic IP app.
Special Features
- Powerful during the day and night
- All the information at a glance
- Flexible mounting without cabling
- Fail-safe and reliable
- Extra-long battery life
- Adjustment of triggering behavior
Product Specification
Product Type | Motion sensor |
Environment | Outdoor |
Integrated Sensors | Brightness sensor |
Power Source | Battery |
Connectivity Technology | Wireless |
Max Range Open Space | 230 m |
Frequency Band | 868 - 868.6 MHz, 869.4 - 869.65 MHz |
Motion Sensor | Motion Sensor |
Detection Range | 12 m |
Detection Angle | 90 degree(s) |
Battery | Battery |
Form Factor | AA type |
Battery Included | Yes |
Required Qty | 2 |
Battery Lifetime | 6 years |
Miscellaneous | Miscellaneous |
Included Accessories | Mounting kit |
Colour | Anthracite |
Compliant Standards | IP44 |
Dimensions & Weight | Dimensions & Weight |
Width | 7.6 cm |
Depth | 9 cm |
Height | 7.4 cm |
Weight | 170 g |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 12.2 cm |
Shipping Depth | 11.2 cm |
Shipping Height | 9.7 cm |
Shipping Weight | 303.6 g |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 55 °C |
