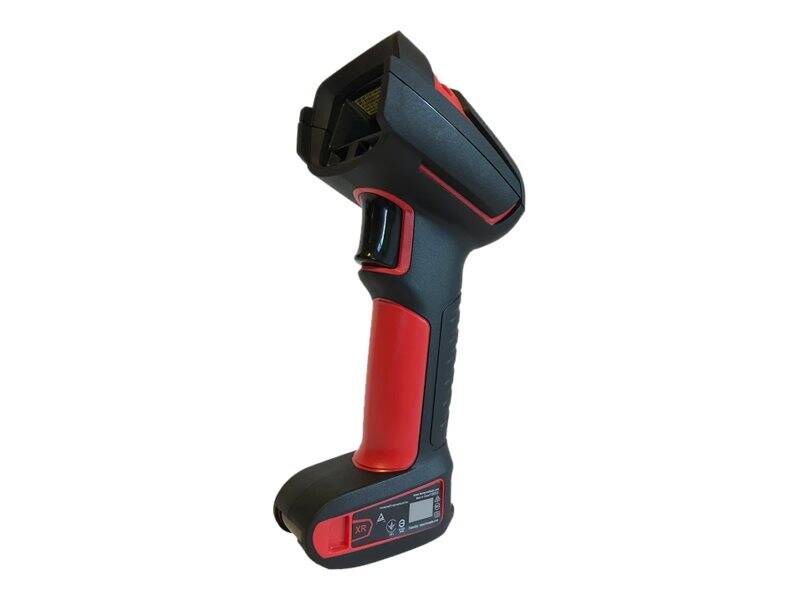

Honeywell Granit XP 1990iXR - RS-232 Kit - barcode scanner - handheld - 2D imager - decoded - RS-232 | 1990IXR-3SER-R
Please sign in so that we can notify you about a reply
Product Features
- Ultra-rugged
Granit XP is designed to thrive in your challenging operating conditions. - Premium scanning performance
Granit provides extreme performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit faster than ever. - Intuitive user feedback
Bright aimers, configurable beeper, good read indicators, and Bluetooth and battery status indicators ensure users have all the information they need.
Special Fetures
- Ultra-rugged
- Premium scanning performance
- Intuitive user feedback
Product Specification
| Type | Barcode scanner - handheld |
| Barcode | |
| Interface Type | RS-232 |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Max Working Distance | 10 m |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 45 |
| Print Contrast Signal (PCS) | 20% |
| Decode Capability | Code 39, QR code, UPC, PDF417, Data Matrix |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator, vibration |
| Features | Rugged, 20 kV ESD protection (air discharge), 8 kV ESD protection (contact discharge) |
| Expansion / Connectivity | |
| Interfaces | RS-232 - DB-9 |
| Miscellaneous | |
| Cables Included | 1 x RS-232 cable - external - 3 m |
| Compliant Standards | MIL-STD 810G, IP67, IP65 |
| Dimensions & Weight | |
| Width | 7.6 cm |
| Depth | 19.2 cm |
| Height | 10 cm |
| Weight | 320 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - battery - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 3 m |
Features - Honeywell - 1990IXR-3SER-R
More Details
Product Code
1T74543
EAN Code
-
Manufacturer
Honeywell
