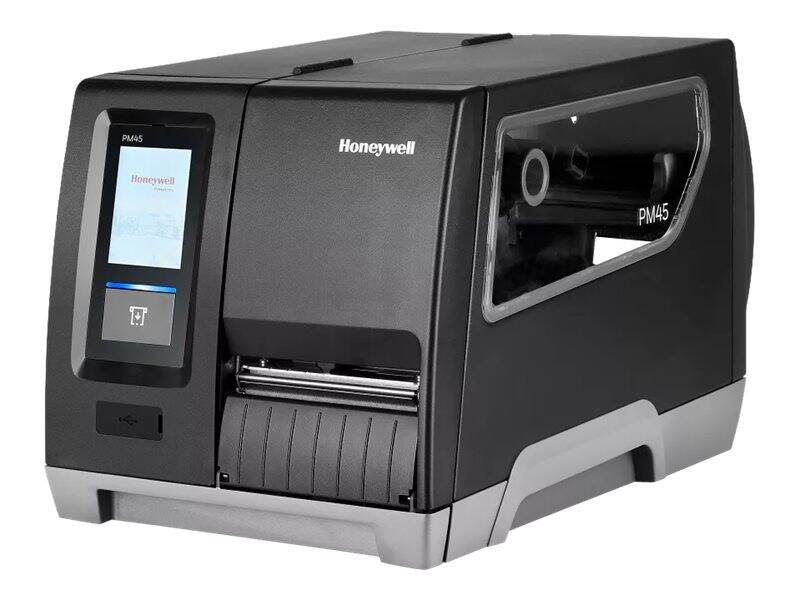

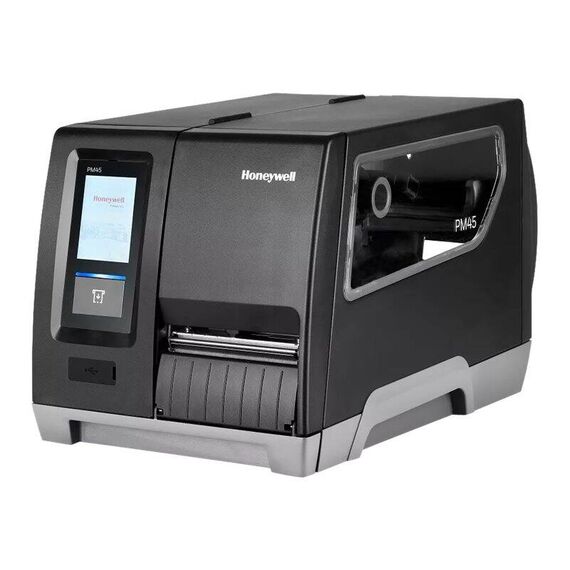

Honeywell PM45 - Label printer - thermal transfer - Roll (11.4 cm) - 203 dpi - up to 350 mm/sec - USB 2.0, serial, Gigabit LAN, USB 2.0 host | PM45A10000000200
Please sign in so that we can notify you about a reply
Special Fetures
- Accurate & reliable high speed printing
- Device management and track & trace functionality
- Broad connectivity options
Product Specification
| Printer Type | Label printer - thermal transfer - monochrome |
| Printer | |
| Print Speed | Up to 350 mm/sec - max speed - 203 dpi |
| Built-in Devices | LCD touch screen |
| Connectivity Technology | Wired |
| Interface | USB 2.0, serial, Gigabit LAN, USB 2.0 host |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | Intermec Printer Language (IPL), PDF, Intermec Fingerprint, Intermec Direct Protocol, Extensible Mark-up Language (XML), DPL, ZSim2 |
| Features | Black Mark sensor, gap sensor, ribbon end sensor, paper low sensor, notch sensor |
| Barcodes | EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, HIBCC, LOGMARS, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, AIAG, Standard 2 of 5, Grid Matrix Code |
| RAM | |
| RAM Installed (Max) | 256 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 512 MB |
| Media Handling | |
| Media Type | Labels, linerless labels, fanfold paper, tag stock, tickets |
| Max Media Size | Roll (11.4 cm) |
| Min Media Size (Custom) | 19 mm |
| Max Media Size (Custom) | 114 mm |
| Media Sizes | Roll (1.9 - 11.4 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 4800 mm |
| Roll Maximum Outer Diameter | 213 mm |
| Roll Core Diameter | 76 mm, 38 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.4 cm) |
| Networking | |
| Networking | Print server |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP |
| Expansion / Connectivity | |
| Connections | 1 x Gigabit LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 2 x USB 2.0 host - 4 pin USB Type A |
| Miscellaneous | |
| Included Accessories | Fixed media hanger |
| Cables Included | No power cord is included |
| Compliant Standards | FCC Class B certified, RoHS |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 270 Watt |
| Power Consumption Stand by | 9.6 Watt |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 28.4 cm |
| Depth | 48.3 cm |
| Height | 29.5 cm |
| Weight | 13.2 kg |
Features - Honeywell - PM45A10000000200
More Details
Product Code
CC22248
EAN Code
-
Manufacturer
Honeywell
