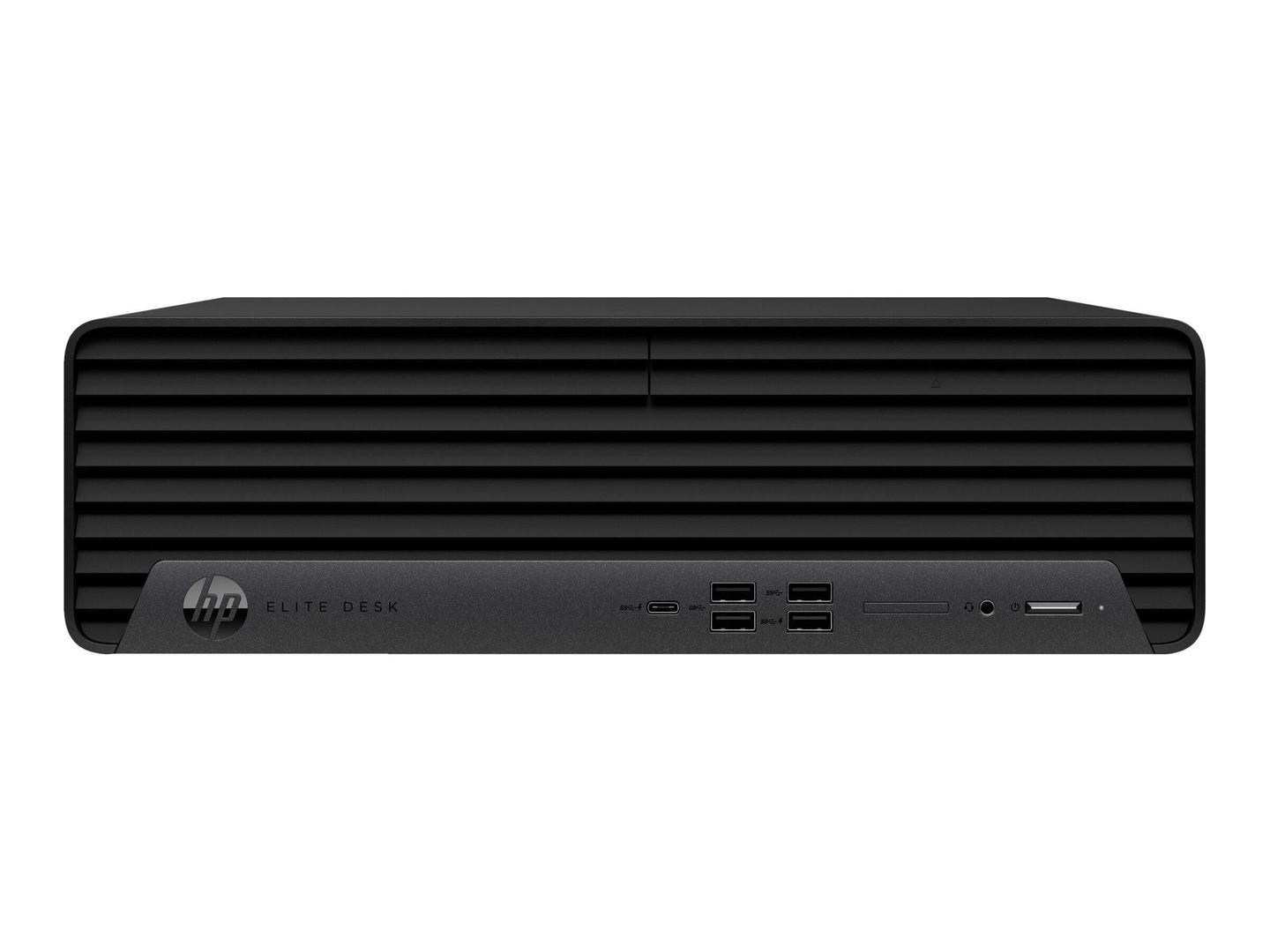

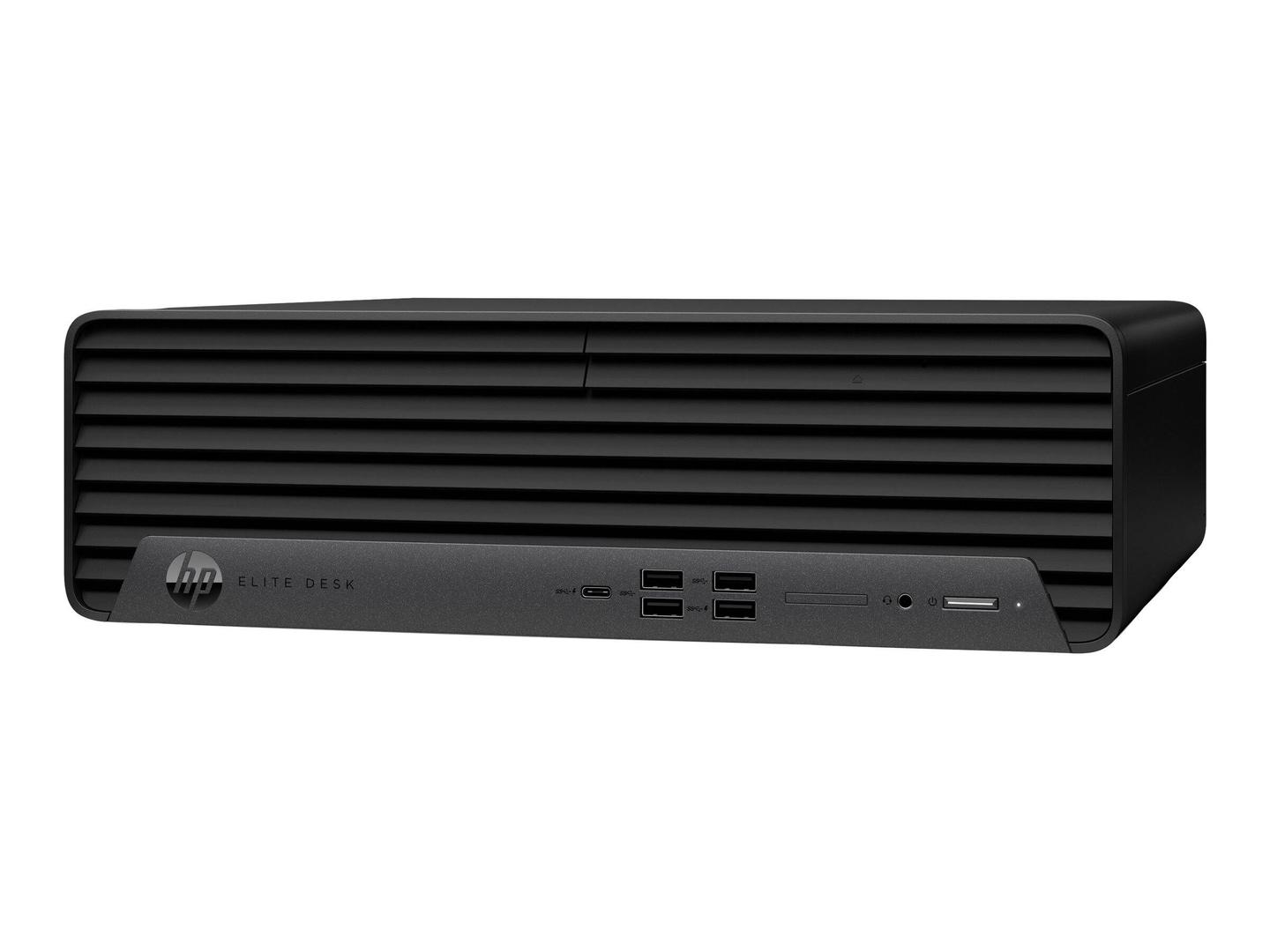

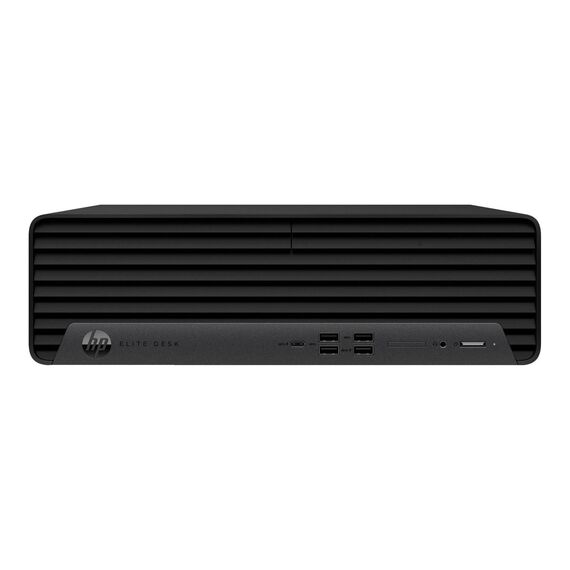

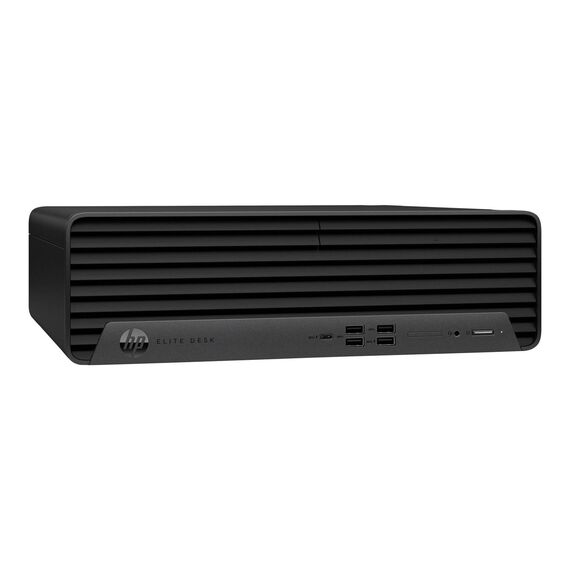

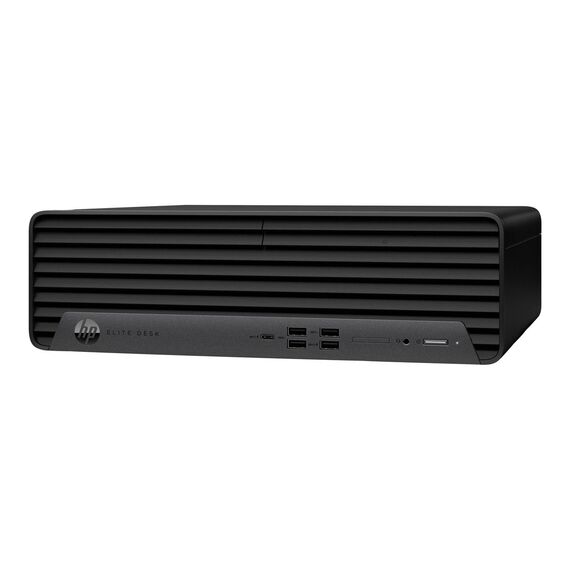

HP Elite 800 G9 / Wolf Pro Security / SFF / Core i5 i5-14500 / up to 5 GHz / RAM 16 GB / SSD 512 GB / NVMe / DVD-Writer / UHD Graphics 770 / Gigabit Ethernet / Win 11 Pro | A0YX9EA#ABD
A0YX9EA#ABD
CPU TypeIntel Core i5
Memory Size16GB
Capacity512GB
Product CodeCK62672
EAN Code0198415146762
ManufacturerHewlett Packard
Sales 10%
Promotion details
Sales 10% at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Stunning performance
The dynamic performance of an Intel processor makes it easy to manage large projects. - Connect multiple screens
Stay on top of all your workflows with three native video port connections.
Special Features
- Stunning performance
- Connection of multiple displays
Product Specification
| Type | Personal computer |
| Product Form Factor | Small form factor |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localisation | Language: German / region: Germany |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i5 (14th Gen) i5-14500 |
| Clock Speed | 2.6 GHz (P-core) / 1.9 GHz (E-core) |
| Max Turbo Speed | 5 GHz (P-core) / 3.7 GHz (E-core) |
| Number of Cores | 14-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 11.5 MB |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology |
| Chipset Type | Intel Q670 |
| Cache Memory | Cache Memory |
| Installed Size | L3 Cache - 24 MB |
| Cache Per Processor | 24 MB |
| RAM | RAM |
| Installed Size | 16 GB / 128 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (Total) / 3 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 16 GB |
| Hard Drive | Hard Drive |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Storage Controller | Storage Controller |
| Type | 1 x SATA/NVMe |
| Controller Interface Type | SATA-600 / NVMe |
| Channel Qty | 4 |
| Optical Storage | Optical Storage |
| Type | DVD-Writer |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics 770 Dynamic Video Memory Technology |
| Video Interfaces | HDMI, DisplayPort |
| HDCP Compatible | Yes |
| Audio Output | Audio Output |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 192 kHz |
| Compliant Standards | High Definition Audio |
| Input Device | Input Device |
| Type | Mouse, keyboard |
| Keyboard | Keyboard |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | German |
| Mouse | Mouse |
| Mouse Name | HP 125 |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 2 |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 2 (total) / 2 (free) x internal 3.5" ¦ 1 (total) / 0 (free) x external 5.25" Slim Line |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2230 (for wireless module) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (for internal storage) ¦ 2 (total) / 2 (free) x PCIe 3.0 x1 ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 |
| Interfaces | 1 x USB-C 3.2 Gen 2x2 (1 in front) (charging) ¦ 4 x USB 3.2 Gen 2 (4 in front) (one of them is charging) ¦ 1 x headphones/microphone (1 front) (CTIA and OMTP headset support) ¦ 1 x audio line-out/line-in ¦ 2 x DisplayPort 1.4a ¦ 3 x USB 2.0 (3 rear) (two of them with wake functionality) ¦ 3 x USB 3.2 Gen 1 (3 rear) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HDMI ¦ 1 x USB 3.1 Gen 2 (1 rear) |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, IEEE 1680.1 |
| Power | Power |
| Device Type | Power supply |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Power Provided | 260 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 92% |
| Power Factor Correction | Yes (active) |
| Operating System / Software | Operating System / Software |
| OS Provided | Windows 11 Pro English / German |
| Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Drive Packs (free download), HP Client Catalogue (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP SureStart Gen7, HP Smart Support, HP Manageability Integration Kit (free download), HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP Sure Recover Gen5, HP Sure Run Gen5, HP Services Scan |
| Sustainability Information | Sustainability Information |
| ENERGY STAR Certified | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts and labour - 1 year - on-site |
| Dimensions & Weight | Dimensions & Weight |
| Width | 33.8 cm |
| Depth | 30.8 cm |
| Height | 10 cm |
| Weight | 5.04 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 39.9 cm |
| Shipping Depth | 49.9 cm |
| Shipping Height | 23 cm |
| Shipping Weight | 7.92 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
