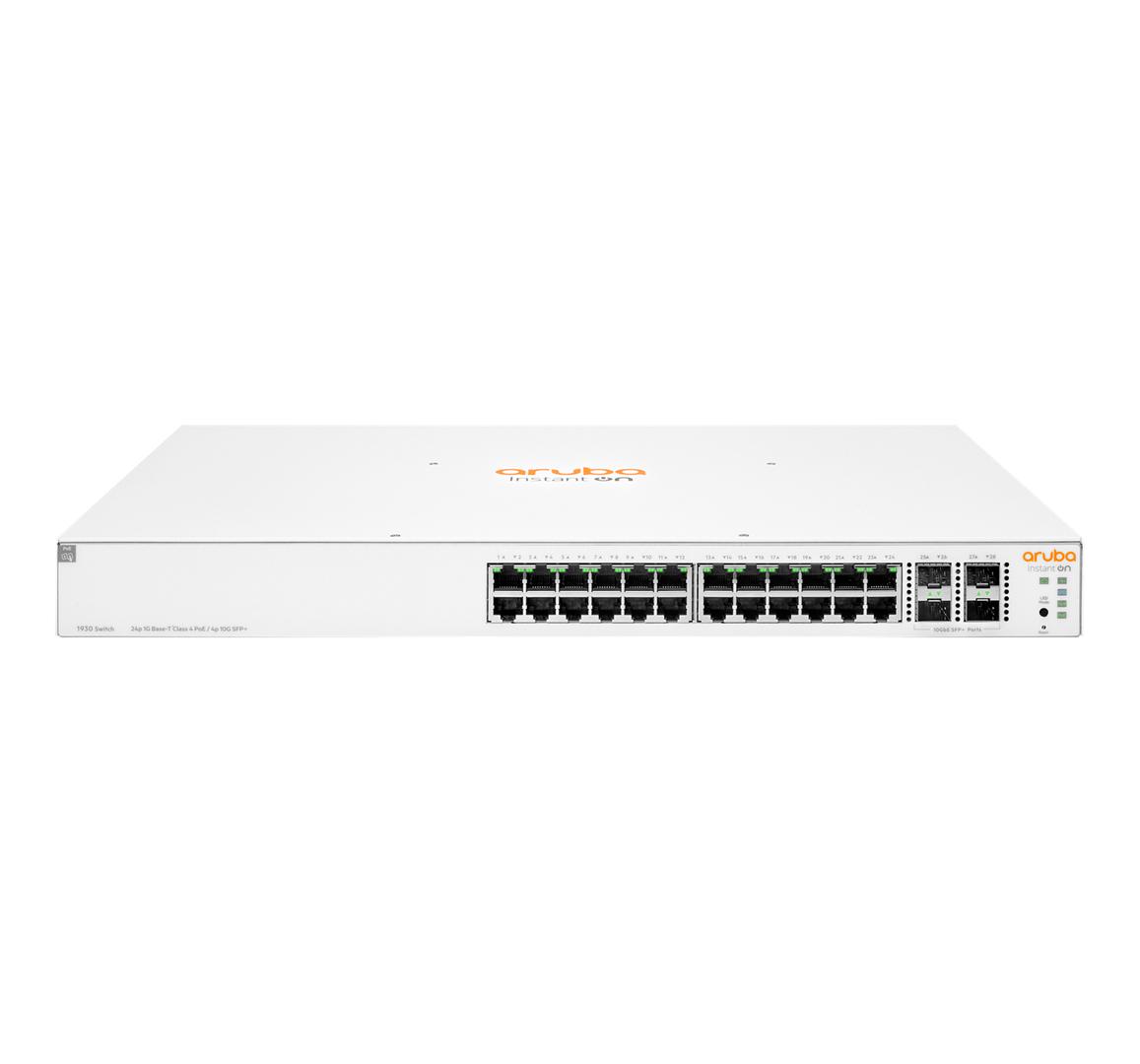

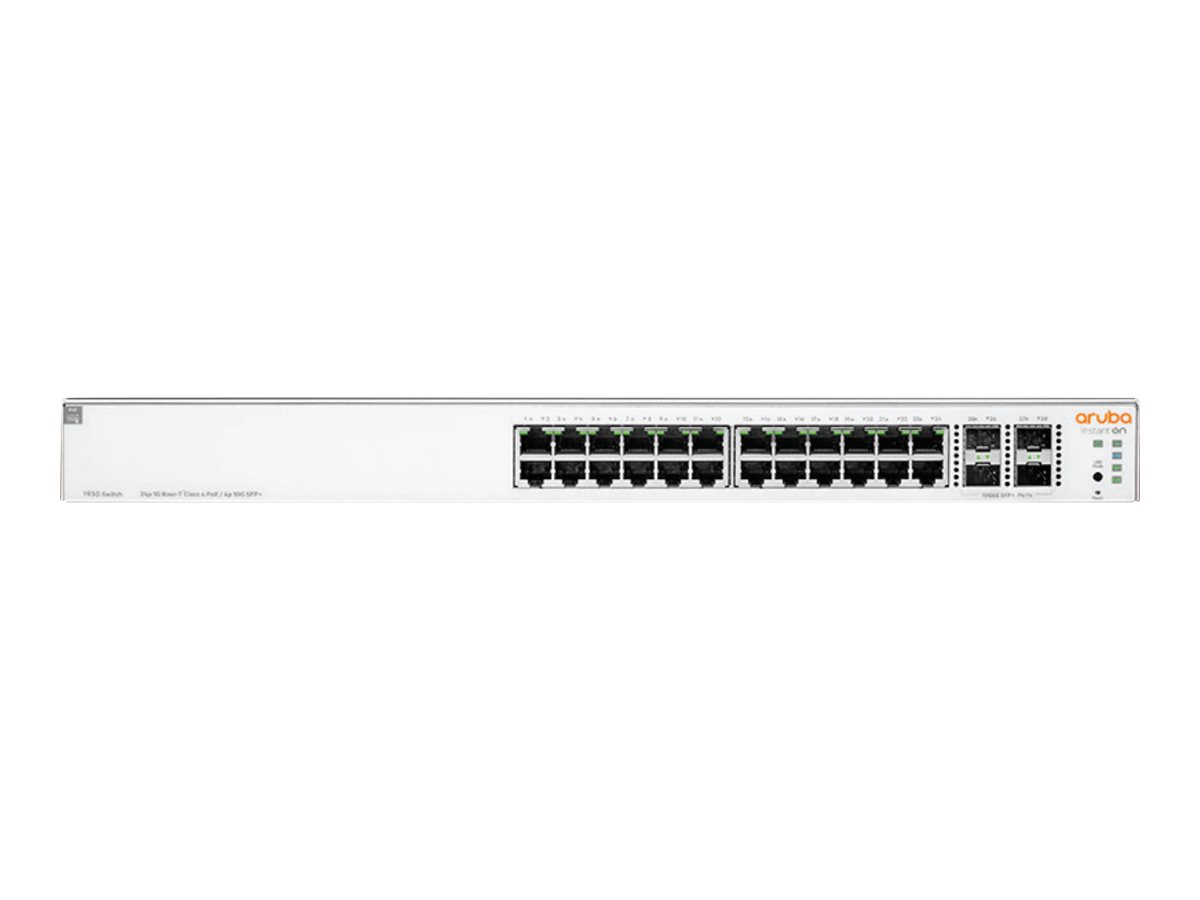

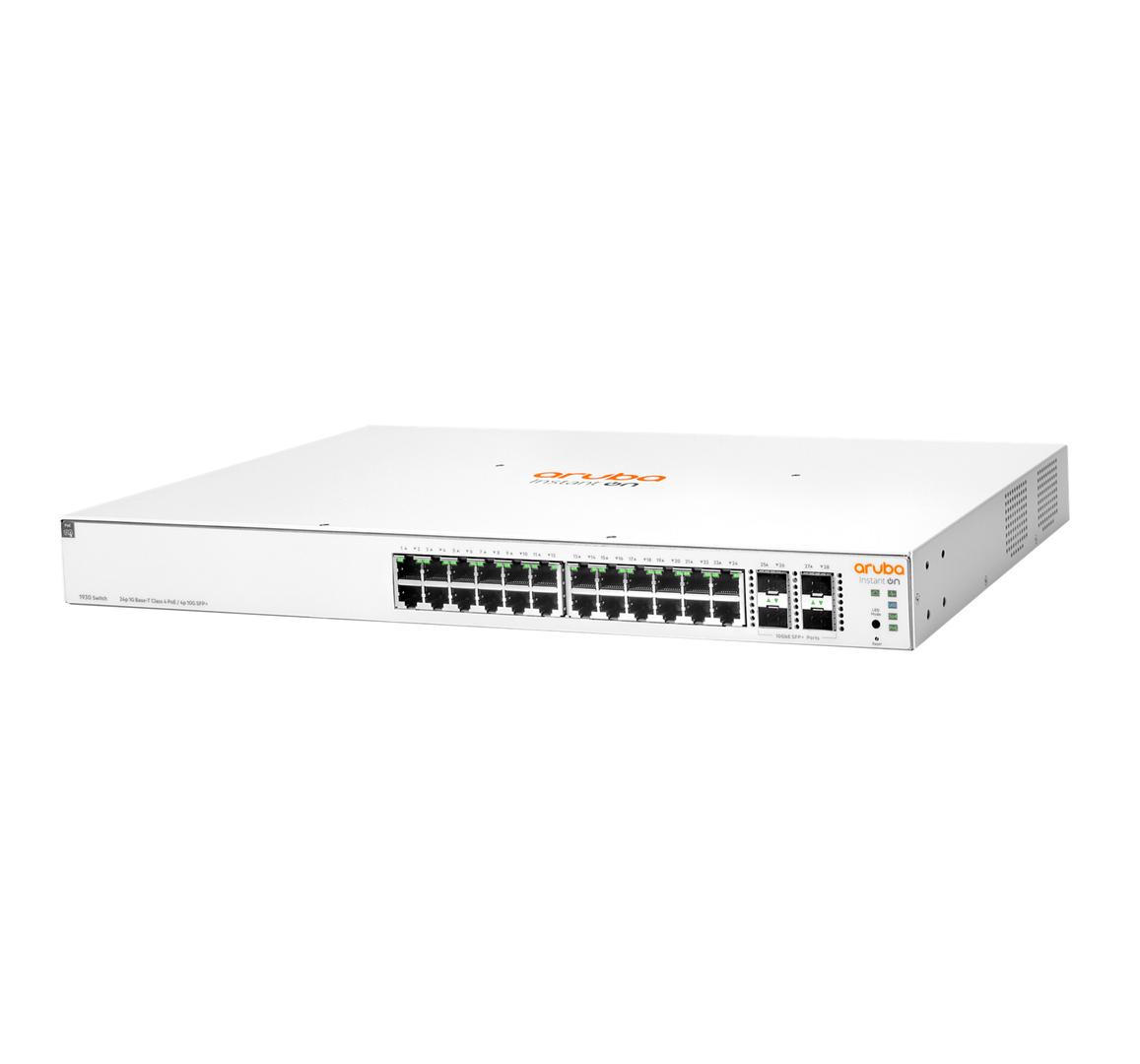

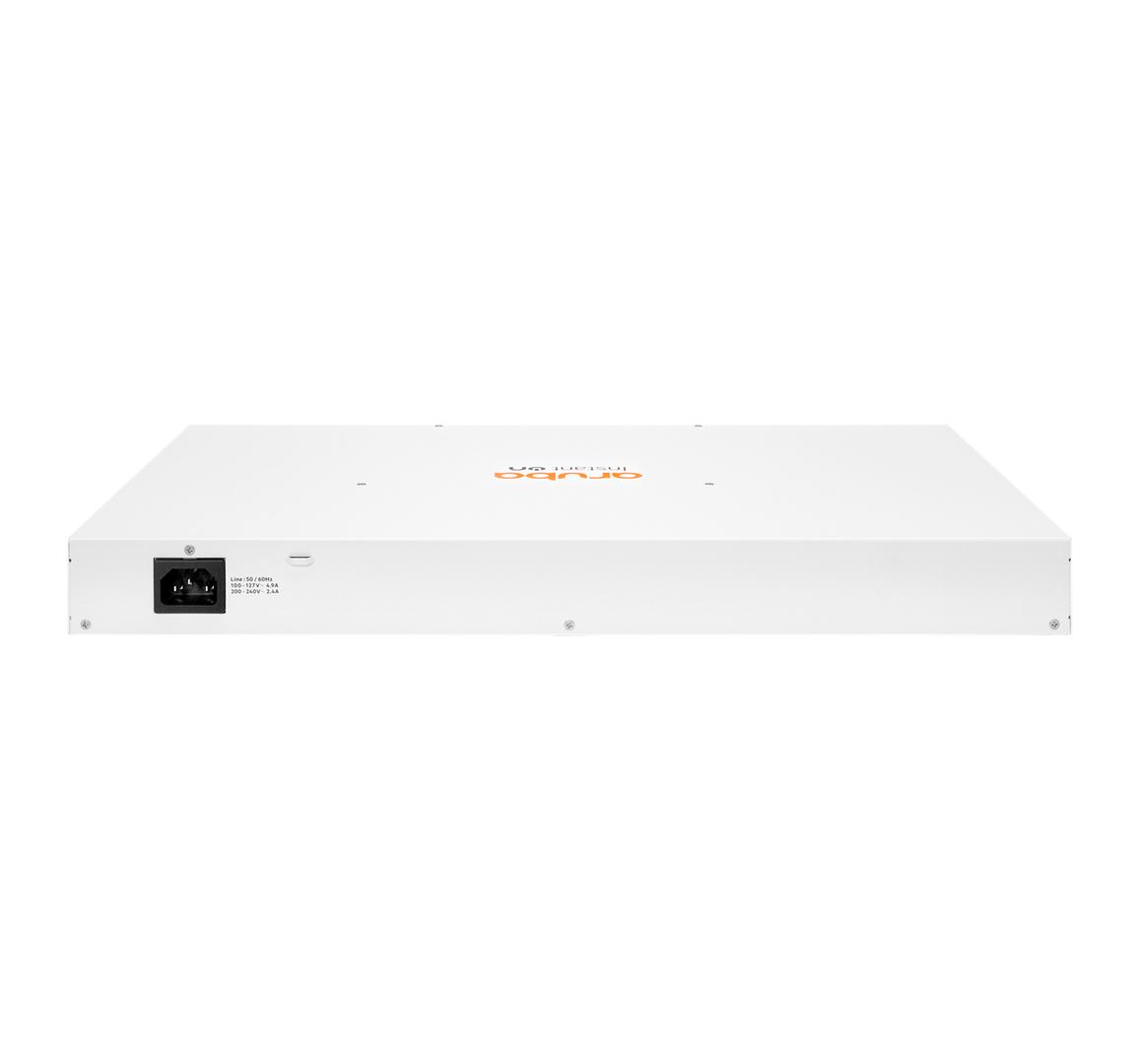

HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch - Switch - L3 - Managed - 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE (370 W) | JL684B
JL684B
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
With 24 PoE ports and 4 SFP+ ports, this switch offers a versatile setup for high-speed networking, ensuring that devices such as access points and IP cameras can be easily connected and powered directly through the network cables. - Robust performance
Boasting a switching capacity of 128 Gbps and a throughput of 95.23 Mpps, the switch is engineered to handle substantial data traffic, providing swift and reliable data transmission across the network. - Advanced security
Equipped with Access Control List (ACL) support, SSL encryption, and RADIUS authentication, this switch ensures secure network access and data communication, protecting against unauthorized access and threats. - Efficient management
Manageable via HTTP, HTTPS, SNMP, and RADIUS, this switch offers flexible options for network management, allowing for efficient monitoring and configuration adjustments to meet evolving network demands. - Durable and reliable
Designed for longevity with a mean time between failures (MTBF) of 71 years and compliance with multiple environmental standards, this switch promises durability and consistent performance in various operating conditions.
Special Fetures
- 24 PoE ports and 4 SFP+ ports for extensive connectivity options
- 128 Gbps switching capacity and 95.23 Mpps throughput for efficient data transmission
- Supports advanced security features including ACL, SSL encryption, and RADIUS authentication
- Flexible management via HTTP, HTTPS, SNMP, and RADIUS for efficient network administration
- Designed for durability with a 71-year MTBF and compliance with environmental standards
Product Specification
| Device Type | Switch - 28 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 370 W |
| Performance | Switching capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 µs ¦ Latency (10 Gbps): 1.3 µs |
| Capacity | Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
| Processor | 1 x ARM: 800 MHz |
| RAM | 512 MB SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | Port status, power, PoE |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE - 370 W ¦ 4 x 1/10Gbit LAN SFP+ |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120 V (50/60 Hz) |
| Power Consumption Operational | 439 Watt |
| Miscellaneous | |
| MTBF | 71 years |
| Compliant Standards | CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN 55024:2010, CISPR 35, SSL, EN 55035:2017 |
| Dimensions & Weight | |
| Width | 44.25 cm |
| Depth | 26.47 cm |
| Height | 4.39 cm |
| Weight | 3.67 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 15 - 95% (40 °C) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (60 °C) |
Features - Hewlett Packard - JL684B
General
24-Port
More Details
Product Code
04:423058
EAN Code
0190017593425
Manufacturer
Hewlett Packard
