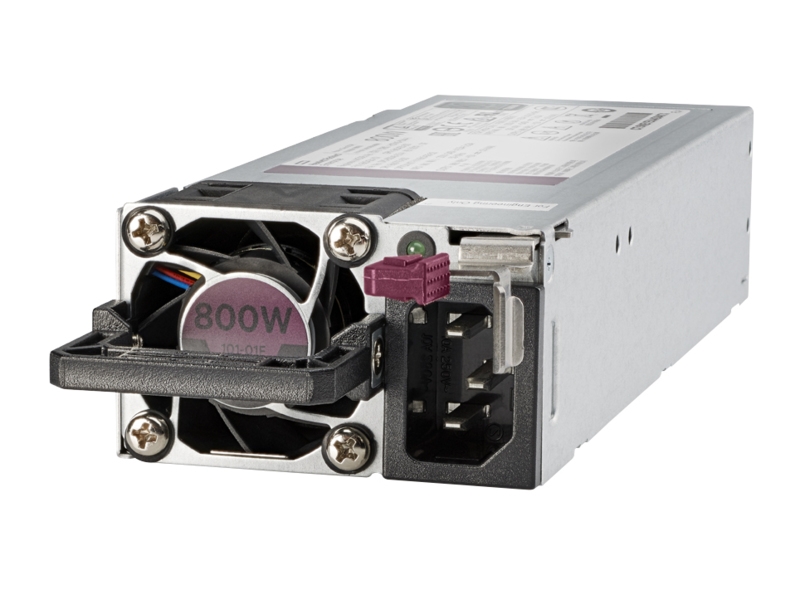

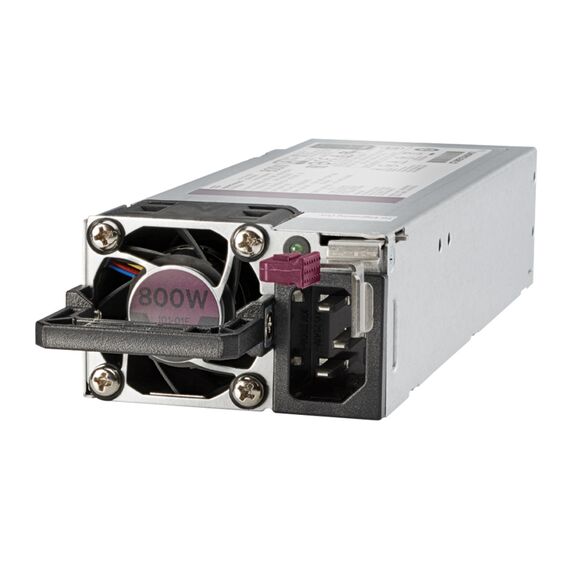

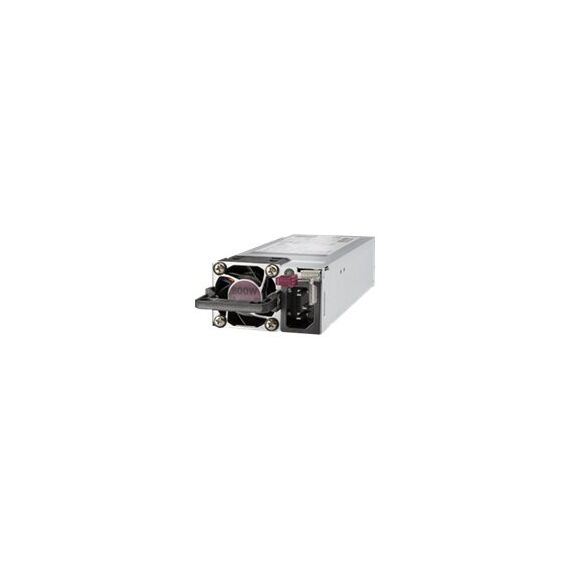

HPE - Power supply - hot-plug / redundant (plug-in module) - Flex Slot - 80 PLUS Titanium - AC 200-240 V - 800 Watt - 860 VA | 865438-B21
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Specification Compliance | Flex Slot |
| Power Device | |
| Input Voltage | AC 200-240 V |
| Frequency Required | 50 - 60 Hz |
| Input Connectors | Power IEC 60320 C14 |
| Power Capacity | 800 Watt / 860 VA |
| Efficiency | 96% |
| 80 PLUS Certification | 80 PLUS Titanium |
| Miscellaneous | |
| Compliant Standards | UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, low halogen, CISPR Class A |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 6.8 cm |
| Depth | 22.53 cm |
| Height | 4.04 cm |
| Weight | 910 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 19.05 cm |
| Shipping Depth | 37.47 cm |
| Shipping Height | 14.61 cm |
| Shipping Weight | 1.59 kg |
| Compatibility Information | |
| Designed For | HPE Apollo 4200 Gen10 336TB Archive Node with 25Gb NIC for Qumulo (800 Watt), 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform (800 Watt), 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform (800 Watt) ¦ HPE Cloudline CL2600 Gen10 Network Choice (800 Watt), CL2800 Gen10 (800 Watt), CL2800 Gen10 Network Choice (800 Watt) ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 (800 Watt), Medium Solution with HPE ProLiant DL325 Gen10 Plus (800 Watt), Medium Solution with HPE ProLiant DL360 Gen10 (800 Watt), Small Solution with HPE ProLiant DL360 Gen10 (800 Watt) ¦ HPE ProLiant DL180 Gen10 Entry (800 Watt), DL180 Gen10 SMB (800 Watt), DL325 Gen10 Plus (800 Watt), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (800 Watt), DL325 Gen10 Solution (800 Watt), DL360 Gen10 All Flash Server for Datera (800 Watt), DL360 Gen10 All Flash Server for Weka (800 Watt), DL360 Gen10 Compute Server for Cohesity DataPlatform (800 Watt), DL360 Gen10 Network Choice (800 Watt), DL360 Gen10 Performance for Cohesity DataPlatform (800 Watt), DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform (800 Watt), DL380 Gen10 All Flash Server for Datera (800 Watt), DL380 Gen10 for SAP HANA Compute Block (800 Watt), DL380 Gen10 Hybrid Server for Datera (800 Watt), DL380 Gen10 Network Choice (800 Watt), DL380 Gen10 Network Choice for CTERA (800 Watt), DL380 Gen10 NVMe All Flash Server for Datera (800 Watt), DL380 Gen10 Server for CTERA (800 Watt), DL380 Gen10 SMB Networking Choice (800 Watt), DL385 Gen10 Plus (800 Watt), DL385 Gen10 Plus Entry (800 Watt), DL385 Gen10 SMB (800 Watt), DL388 Gen10 Network Choice (800 Watt), DL560 Gen10 for SAP HANA Compute Block (800 Watt), DX385 Gen10 Plus (800 Watt), DX560 Gen10 (800 Watt), ML350 Gen10 SMB (800 Watt), ML350 Gen10 Special Server (800 Watt) ¦ HPE SimpliVity 380 Gen10 Network Choice G Node (800 Watt), 380 Gen10 Network Choice H Node (800 Watt) |
Features - Hewlett Packard - 865438-B21
More Details
Product Code
04:290355
EAN Code
0190017072746
Manufacturer
Hewlett Packard
