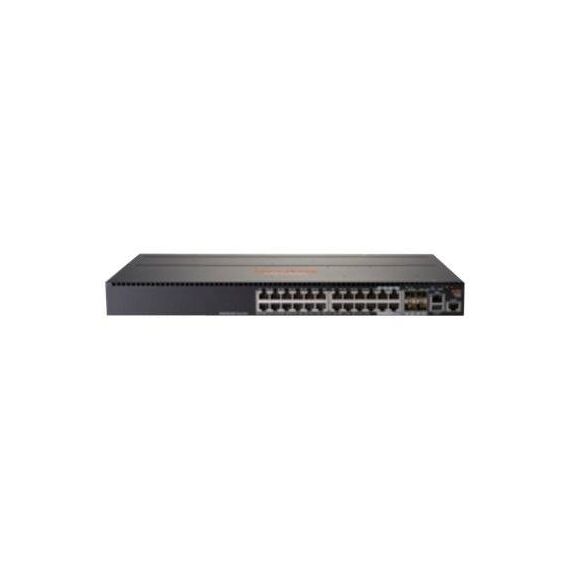

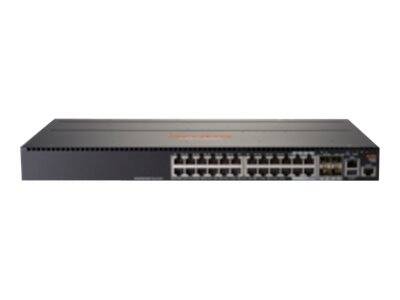

HPE Aruba 2930M 24G 1-Slot - Switch - L3 - Managed - 20 x 10/100/1000 + 4 x combo Gigabit SFP - rack-mountable | JL319A
JL319A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Aruba Layer 3 Switch with 10 chassis backplane stacking, static, RIP and access OSPF routing, ACLs, and robust QoS
- Advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
- Ready for innovative SDN applications with OpenFlow support
- Simple deployment with Zero Touch Provisioning
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 20 x 10/100/1000 + 4 x combo Gigabit SFP |
| Performance | Throughput: 95.2 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (1 Gbps): 3.1 µs ¦ Latency (10 Gbps): 3.4 µs ¦ Latency (10 Mbps): 98.5 µs ¦ Latency (100 Mbps): 11.8 µs |
| Capacity | Jumbo frame size: 9220 ¦ IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 |
| MAC Address Table Size | 32768 entries |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, CIDR |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON |
| Encryption Algorithm | MD5, SSL, TLS |
| Authentication Method | RADIUS, PAP, CHAP, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, LLDP-MED, STP BPDU Guard |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz |
| Processor | 1 x ARM Cortex-A9: 1.016 GHz |
| RAM | 1 GB DDR3 SDRAM |
| Flash Memory | 4 GB |
| Expansion / Connectivity | |
| Interfaces | 20 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T ¦ 1 x serial (console) ¦ 1 x USB Type B ¦ 1 x 1000Base-T management |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module ¦ 1 (total) / 1 (free) x Expansion Slot |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 0 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 93 Watt |
| 80 PLUS Certification | 80 PLUS Silver |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Dimensions & Weight | |
| Width | 44.25 cm |
| Depth | 32.43 cm |
| Height | 4.39 cm |
| Weight | 4.45 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 90% (non-condensing) |
Features - Hewlett Packard - JL319A
More Details
Product Code
2M21YK3
EAN Code
0190017071190
Manufacturer
Hewlett Packard
