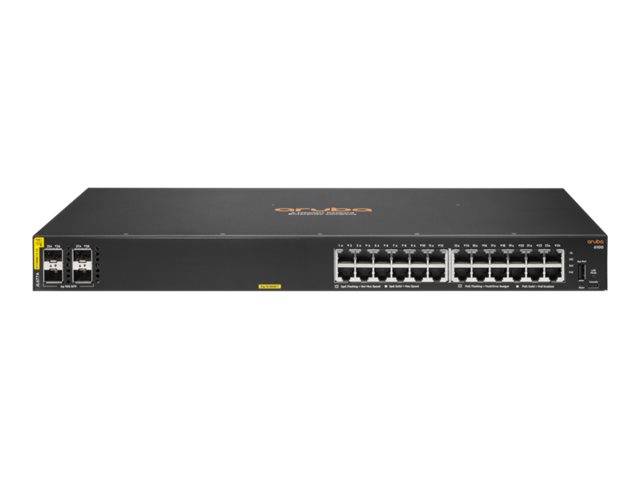

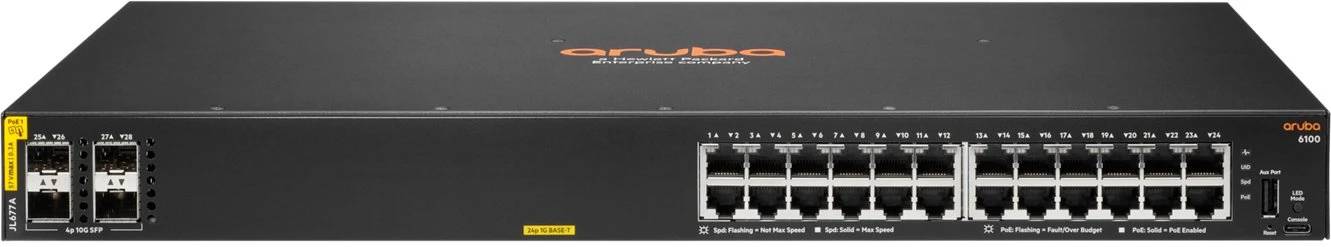

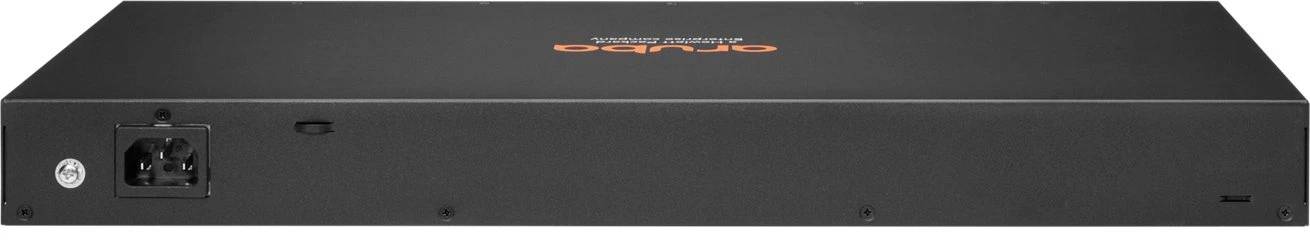

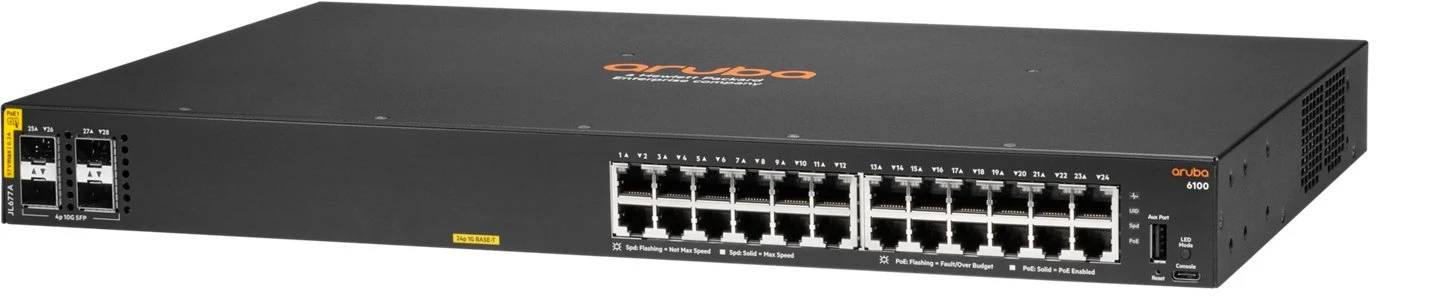

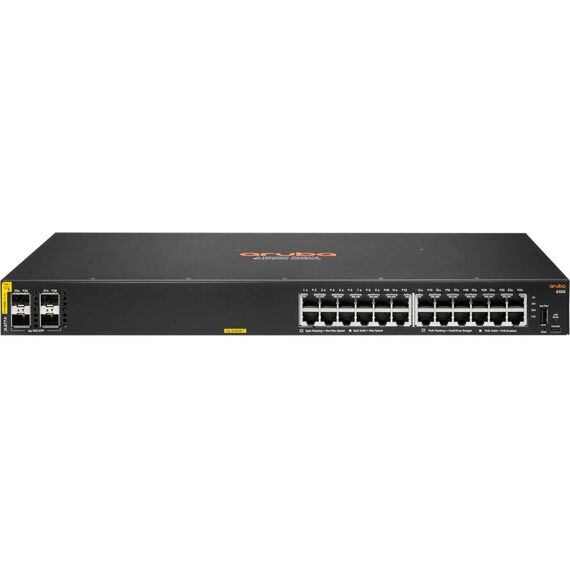

HPE Aruba 6100 24G Class4 PoE 4SFP+ / Switch / Managed / 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ / side to side airflow / rack-mountable / PoE+ (370 W) | JL677A
JL677A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Entry-level Aruba CX access layer switch
The Aruba CX 6100 switch series offers Gigabit connectivity with high-speed uplinks to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks. - Performance and power
The Aruba CX 6100 switch series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
Special Features
- Provides entry-level, reliable, and convenient wired access connectivity
- Silent deployment with compact and fanless model
Product Specification
| Device Type | Switch - 28 ports - Managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs |
| Capacity | Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 |
| MAC Address Table Size | 8192 entries |
| Routing Protocol | IGMPv2, IGMPv3 |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Processor | 1 x ARM A9: 1.016 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Flash Memory | 16 GB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A |
| Power | Power |
| Power Device | Internal power supply |
| Power Provided | 500 Watt 2.3 A |
| Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
| Power Consumption Operational | 22.9 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792 |
| Localisation | English / Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.2 cm |
| Depth | 26.82 cm |
| Height | 4.39 cm |
| Weight | 4.19 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 90% (non-condensing) |
Features - Hewlett Packard - JL677A
General
24-Port
More Details
Product Code
04:360194
EAN Code
0190017348483
Manufacturer
Hewlett Packard
